Garmin PowerSwitch App

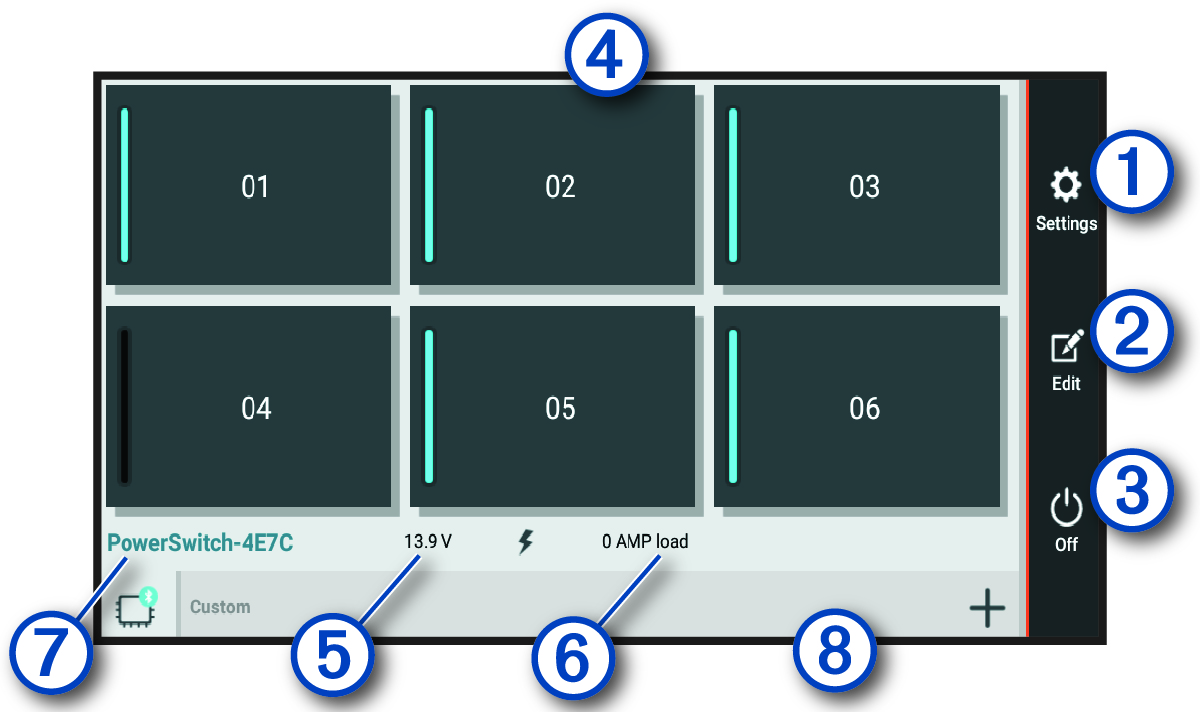

Garmin Power Switch app overview with callouts

Callout number one Settings

Opens the app settings menu

Callout number two Edit field

Enters editing mode to customize the app layout and functions

Callout number three Turn off

Turns off all outputs

Callout number four Power buttons

Activates each connected output

Callout number five

Displays input voltage

Callout number six

Displays the total amperage of the selected Garmin PowerSwitch™ device

Callout number seven

Displays the device name

Callout number eight

Displays Garmin PowerSwitch device tabs and custom layout tabs
