Opening the Front Cover

You must open the front cover to make electrical connections.

  1. Lift the front cover latch Callout number one and rotate it counter-clockwise.

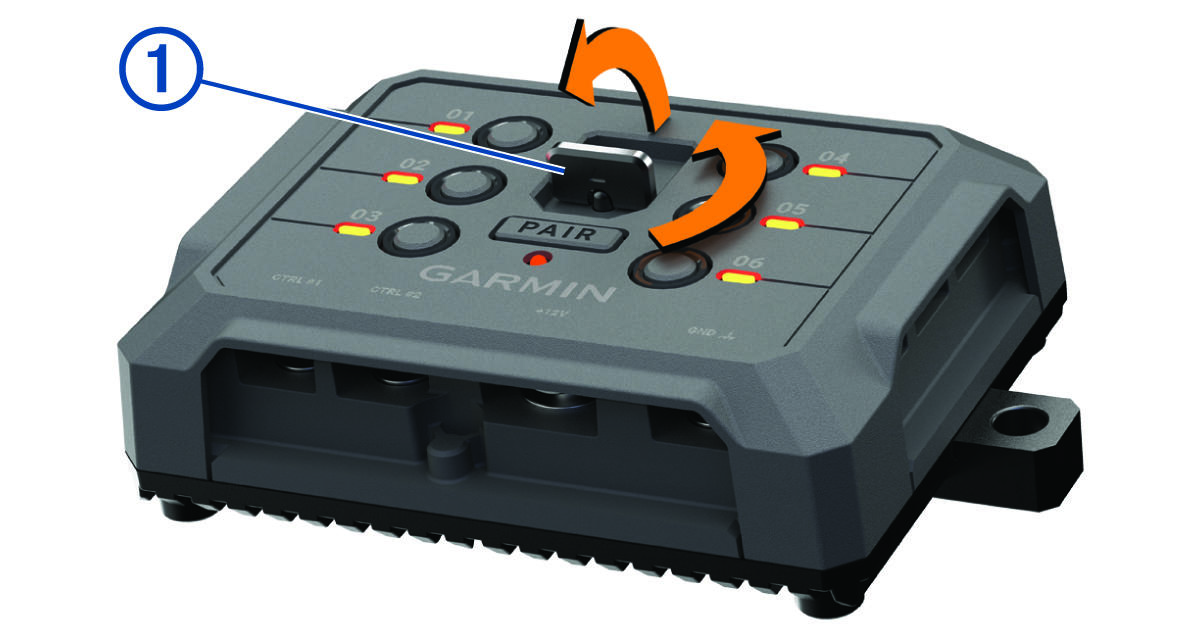

    Front cover latch rotating with a callout
  2. Pull the front cover off of the device.

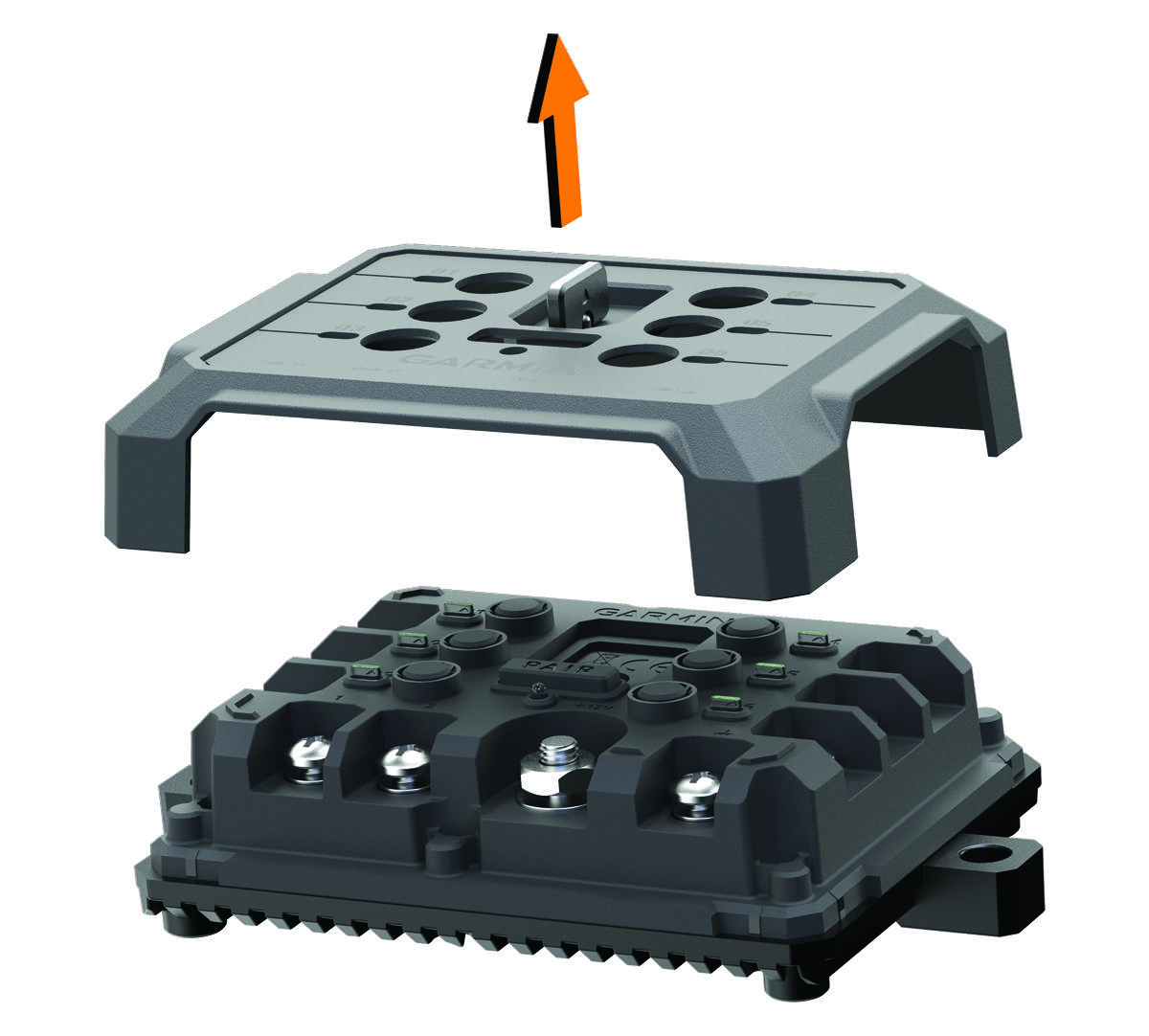

    Front cover removed from the device
