Installing the Battery

  1. Locate the circular battery cover Callout number one on the back of the Keep Away Tag sensor.

    Battery compartment with callouts
  2. Twist the cover counter-clockwise until it is loose enough to remove.
  3. Remove the cover.
  4. Place the battery into the cover with the positive side facing the inside of the cover.
    NOTE: Do not damage or lose the O-ring gasket.
  5. Replace the cover by aligning the dots Callout number two and rotating clockwise.

When paired with a compatible dog collar device, the Garmin Canine™ app indicates when less than 1 wk. battery life remains for the sensor.

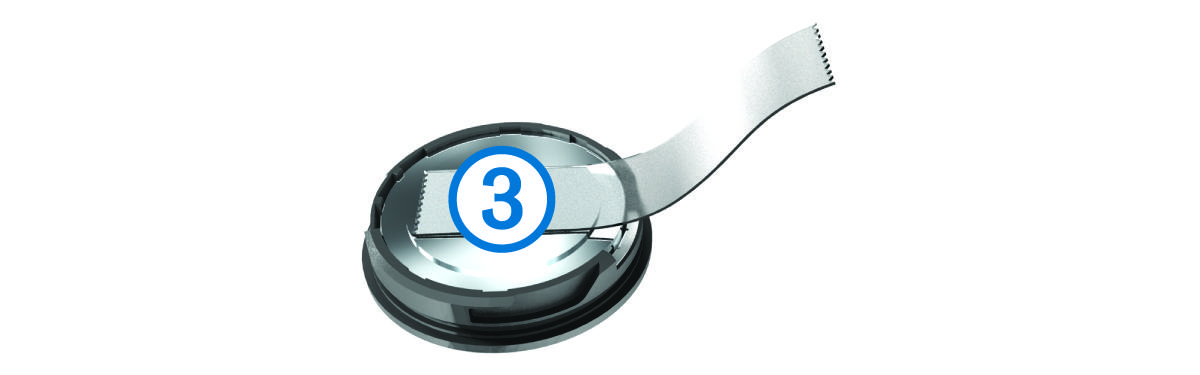

TIP: To replace the battery, you can use a piece of tape Callout number three or a magnet to remove the battery from the cover.
Removing the battery from the device with a callout
