Device Overview

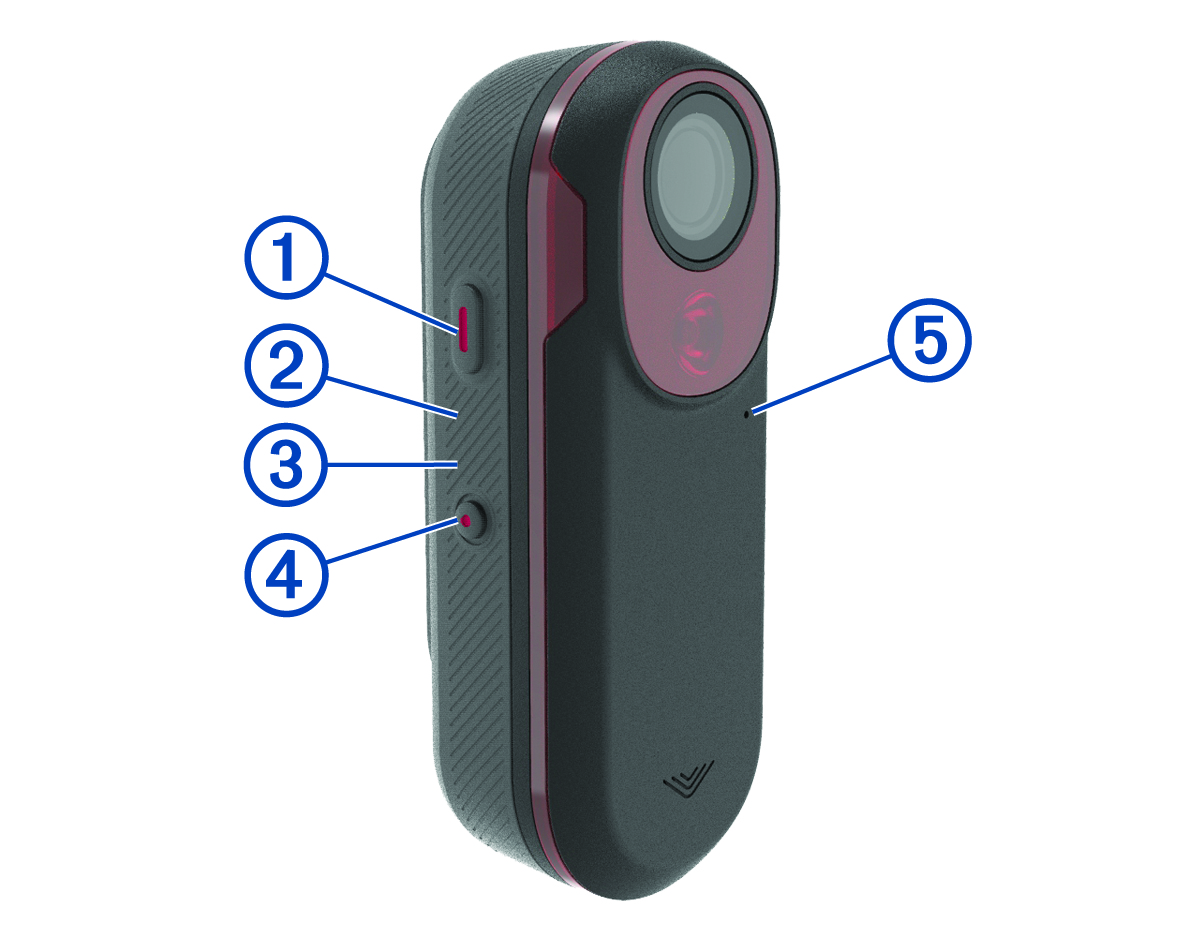

Front view of the device with callouts

Callout number one

Device button

Press to change device and light modes.

Hold for 1 second to turn the device on and enter active mode.

When the device is off, hold for 2 seconds to enter pairing mode (Pairing the Varia Radar Device with Your Phone).

Hold for 2 seconds to turn the device off.

Callout number two

Device status LED

Changes color based on the battery level, pairing status, device modes, and charging status (Varia RCT715 Device Status LED).

Callout number three

Camera status LED

Changes color based on the camera status (Varia RCT715 Camera Status LED).

Callout number four

Camera button

Hold for 1 second to save a video or take a picture.

Hold for 4 seconds to turn the camera off.

Callout number five

Microphone

Captures audio.
