Trolling Motor Display Panel

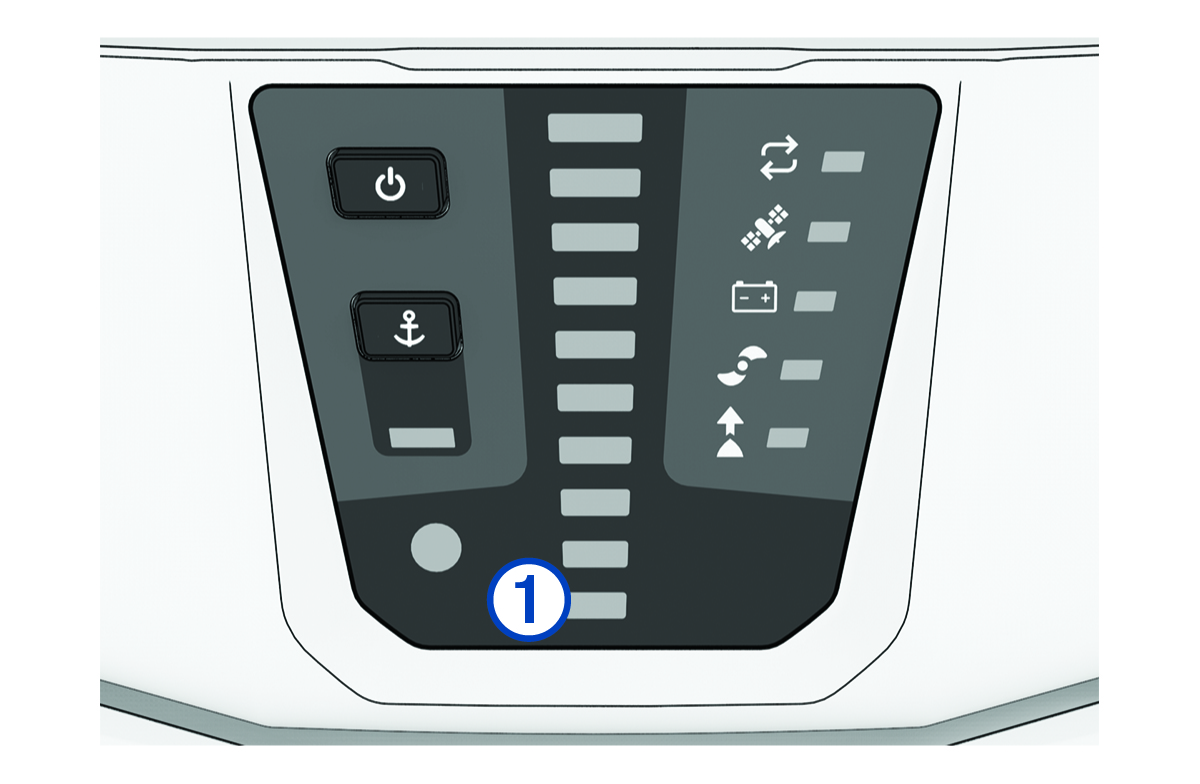

The display panel on the trolling motor mount shows important information at a glance.
|
Speed |
Shows the motor speed level (Adjusting the Speed of the Motor). |
|---|---|
|
Trolling motor battery status |
Green: the motor battery voltage is good. Yellow: the motor battery voltage is low. Red: the motor battery voltage is very low. Flashing red: the motor battery voltage is critically low. NOTE:
This applies only when the motor is connected to a lead acid battery. Voltage levels may not be accurate with lithium batteries.
|
|
GPS signal status |
Green: the motor has a good GPS signal. Yellow: the motor has a poor GPS signal. Red: the motor does not have a GPS signal. |
|
Motor status |
Green: the motor is operating normally. Red (solid): the motor software is starting up. Red (blinking): there is a system error. Blue: the motor is in pairing mode. Yellow: the motor is in recovery mode (for software updates and recovery procedures). |
|
Power |
Hold to turn the motor off. NOTE:
By default, the trolling motor turns on automatically when it receives power. It is not necessary to push this button to turn it on.
This can be changed in the settings (Trolling Motor Settings).
The trolling motor turns off automatically when it is in the stowed position for two hours. When the propeller is turning, press to stop the propeller. Press three times to enter pairing mode. |
|
Propeller status |
Illuminates when the propeller is active (Turning the Propeller On and Off). |
|
Heading hold status |
Illuminates when heading hold is active (Maintaining Your Heading). |
|
Anchor lock status |
Illuminates when anchor lock is active (Holding Your Position). Press to turn on anchor lock. Hold to turn off anchor lock. |
