Adjusting the Depth of the Trolling Motor
- Move the motor so that it stops halfway between the stowed and deployed positions.
-

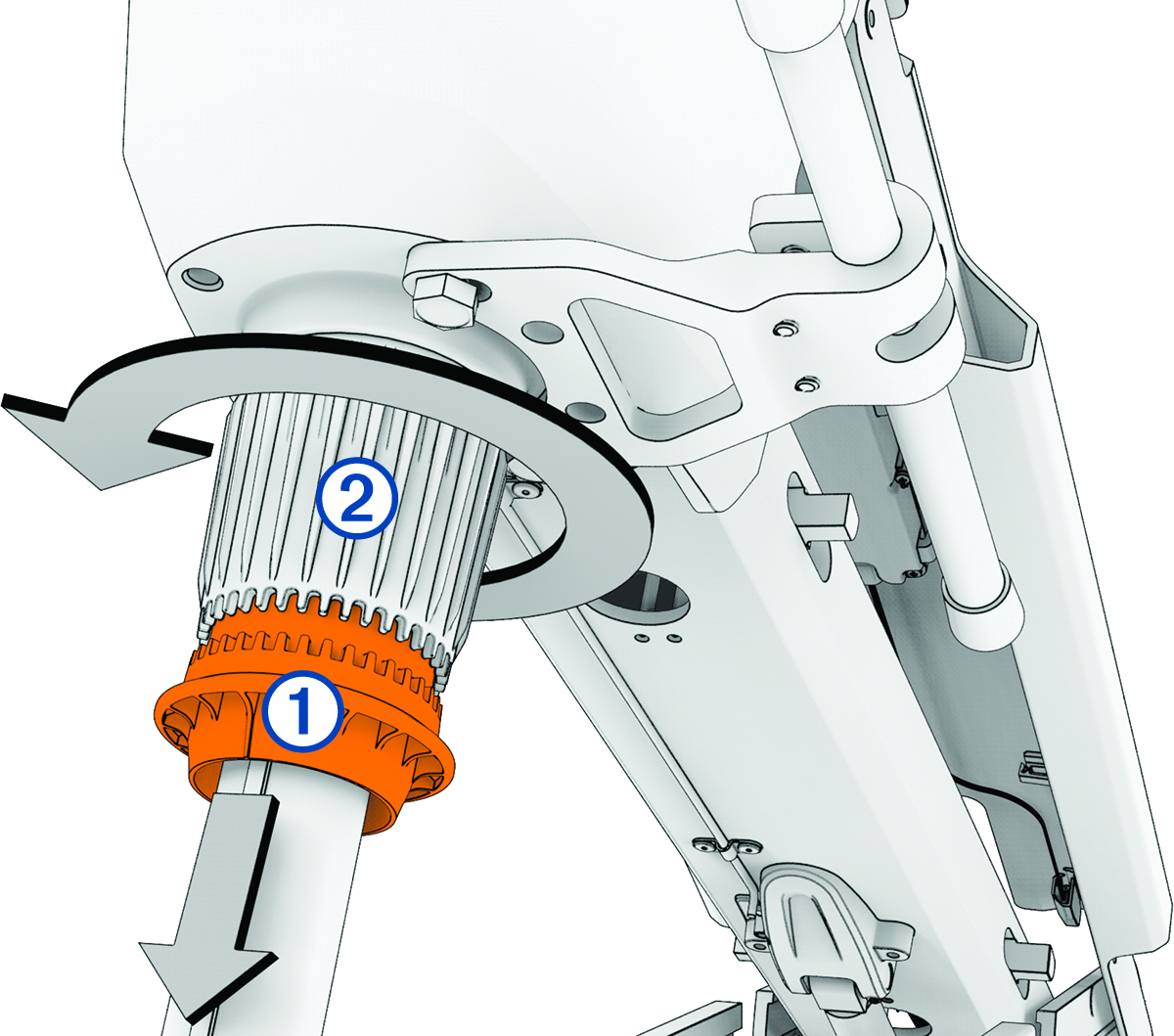

Slide the locking ring down to unlock the depth adjustment collar.
-
Loosen the collar to unlock the shaft.
NOTE: You should be prepared for the motor to slide down when you loosen the collar.
- Raise or lower the depth of the trolling motor.
- Tighten the collar at the base of the steering system housing.
- Slide the locking ring on the depth adjustment collar back up.
-
Select an action:
-
If you are deploying the trolling motor, move the motor to the fully deployed position and check the depth.
-
If you are stowing the trolling motor, move the motor to the stowed position and make sure the motor rests on the metal rails near the edge of the bow (Stowing the Motor from the Deployed Position).
-
- Repeat this procedure if necessary to set the correct depth for the deployed or stowed position.
