Installing Batteries

The foot pedal can operate using two AA alkaline, NiMH, or lithium batteries (not included). Use lithium batteries for best results.

  1. Lift up the front of the foot pedal as far as possible.
  2. Pinch the sides of the battery cover 1, and pull up to remove it.

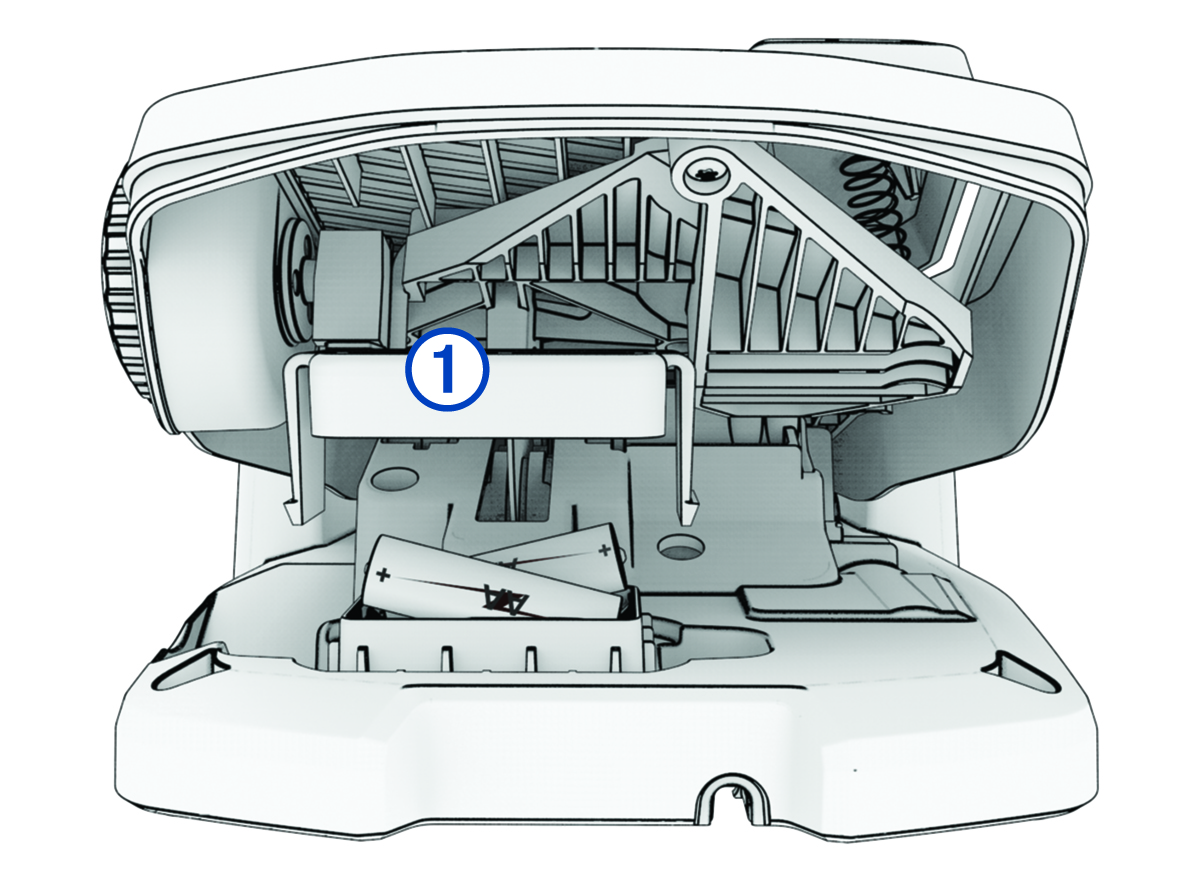

    Foot pedal and batteries
  3. Insert two AA batteries, observing polarity.
  4. Place the battery cover over the batteries, and push down until both sides snap into place.
