Status LED

The status LED 1 indicates the device status.

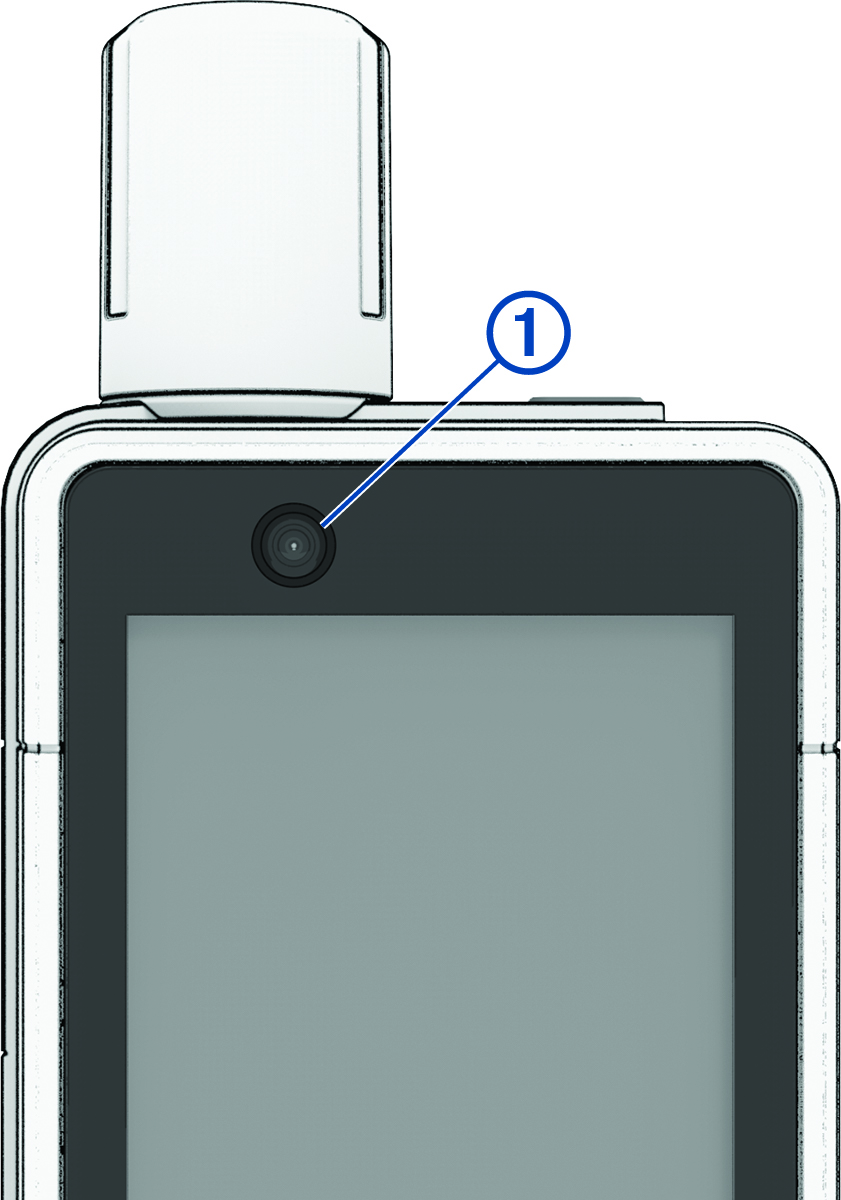

Close-up view of the LED with a callout

LED Activity

Status

Double flashing green

You have an unread inReach® message on your GPSMAP® H1i Plus satellite communicator.

Flashing green

The device is in expedition mode.

The screen is turned off to maximize battery life.

Flashing red

An inReach message failed to send from your GPSMAP H1i Plus satellite communicator.

The device is below 10-percent battery power.

Alternating red and green flashes

The GPSMAP H1i Plus satellite communicator is in SOS mode.

GUID-A494ACED-FFD6-481B-9DAF-D521E717FE5F v3
