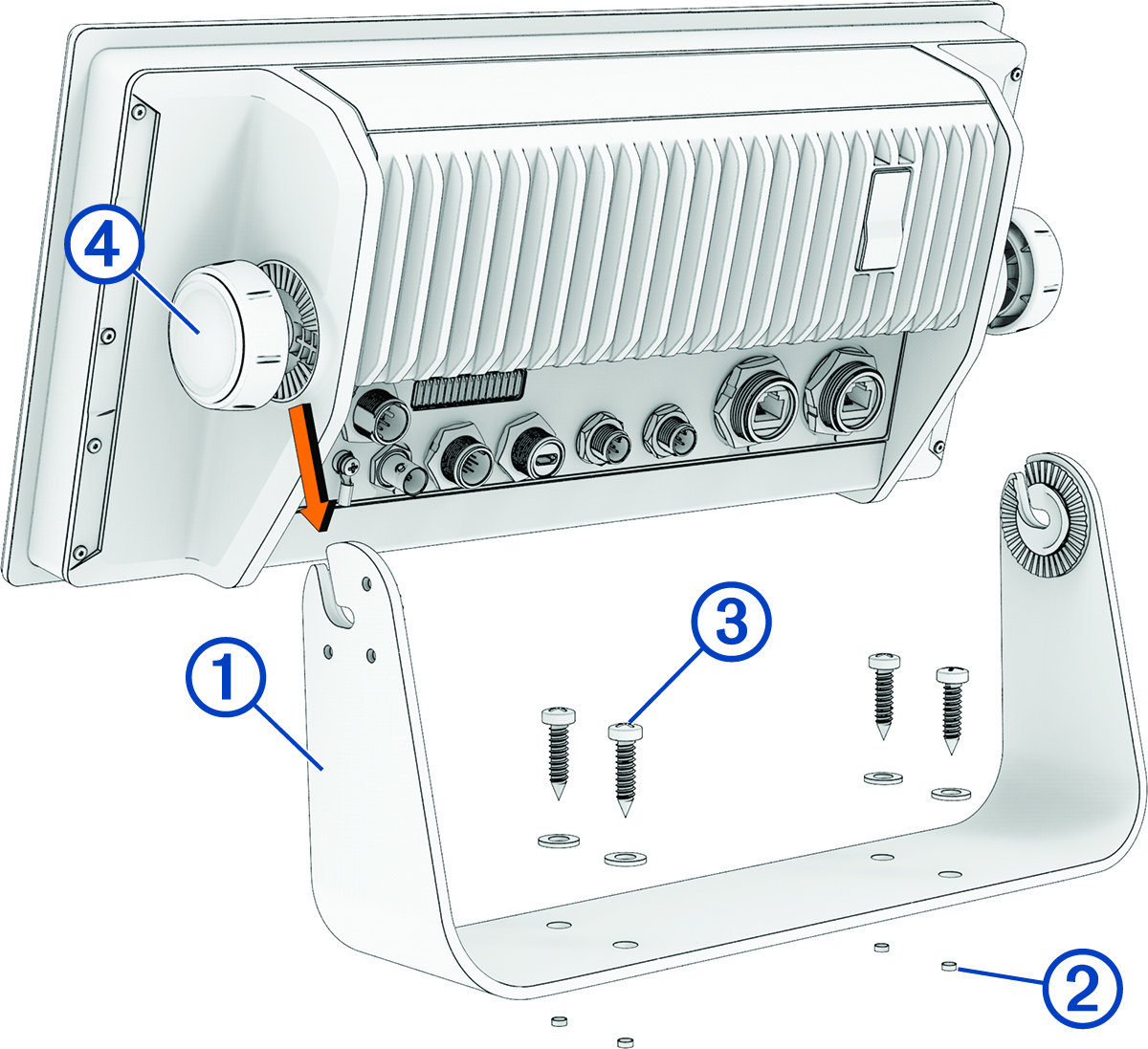

Bail Mounting the Device
If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened.
You can use a bail mount bracket (sold separately) to bail mount the device on a flat surface.
-
Using the bail-mount bracket
as a template, mark the pilot holes.
-
Drill the pilot holes
.
-
Use either the mounting screws included with the bracket
or your own mounting hardware to secure the bail-mount bracket to the mounting surface.
-
Install the bail-mount knobs
on the sides of the device.
