Attaching the Pedals to the Rails

  1. Align the screw on the outside of the pedal with the threaded socket in the pedal carriage on the rail, and turn the knob on the other side of the pedal, clockwise, to attach the pedal to the pedal carriage.

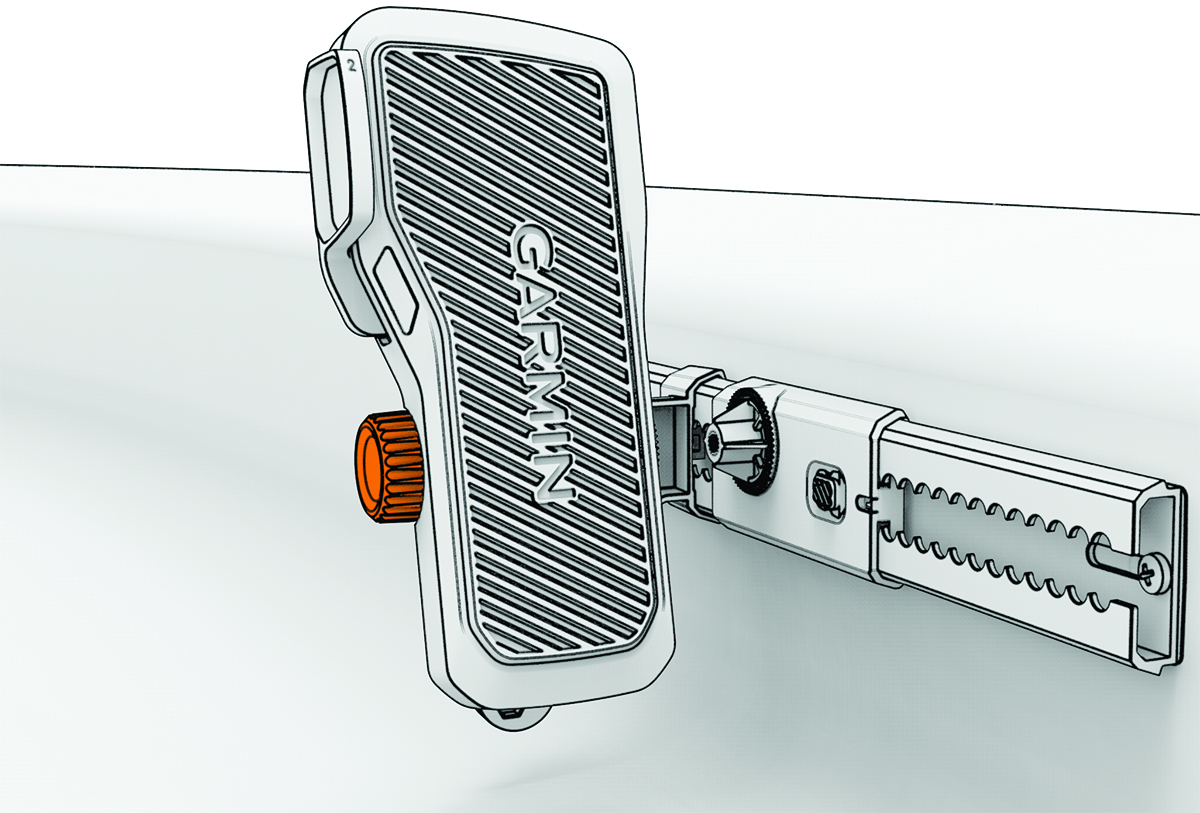

    Installing the pedal on the rail
  2. Tilt the pedal back and forth to check its range of motion, and adjust the angle of the pedal if necessary.
  3. If necessary, push the button on the pedal carriage and slide it along the rail to position the pedal at a comfortable distance.

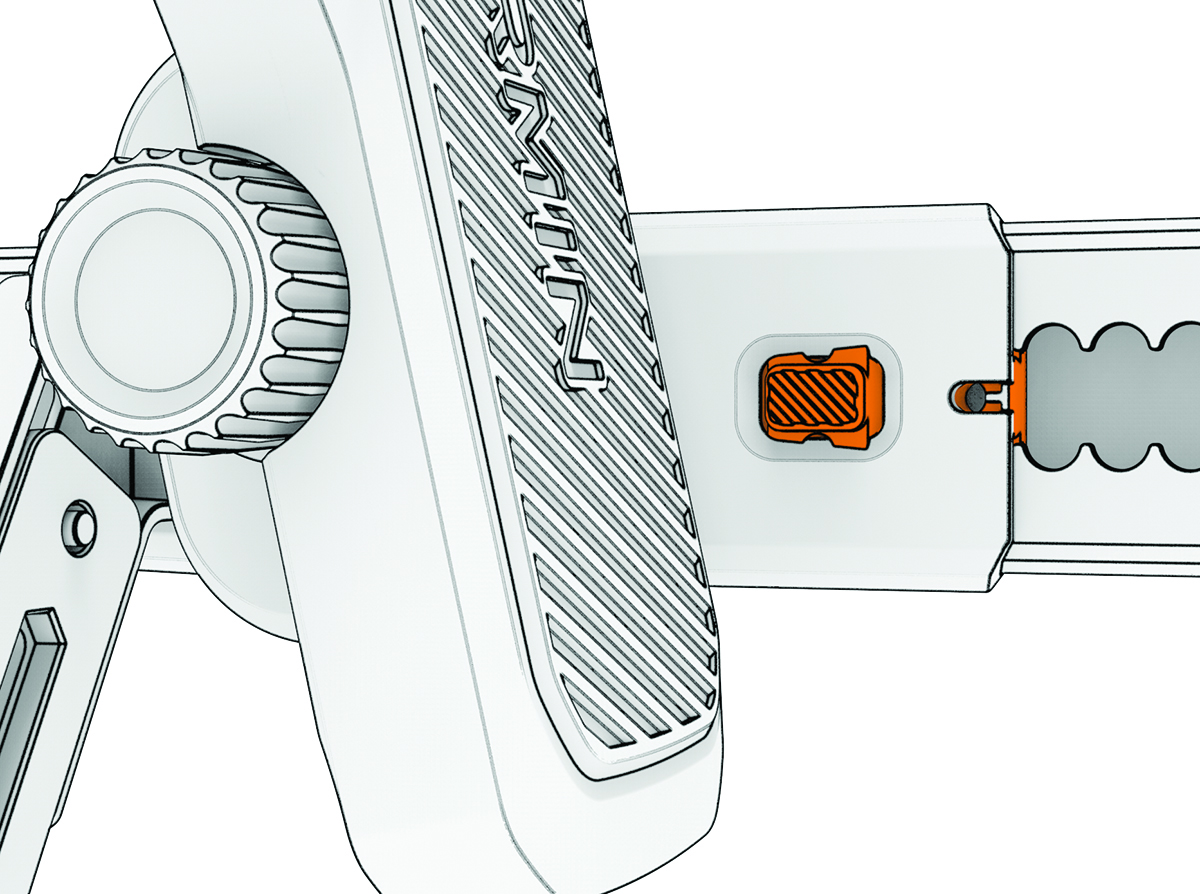

    Moving the pedal carriage
    NOTICE

    Do not move the pedal carriages all the way to either end of the pedal rail. If the pedal carriage overlaps one of the pedal rail mounting screws, it may become difficult to move it.

  4. Repeat the steps for the other pedal.
    TIP: You can check the marks where the pedals connect to the pedal carriages to make sure both pedals are installed at the same angle.
NOTICE

You must remove the pedals from the pedal carriages before transporting the kayak. The pedals may become loose during transport, which could cause property damage.
