Dimensions

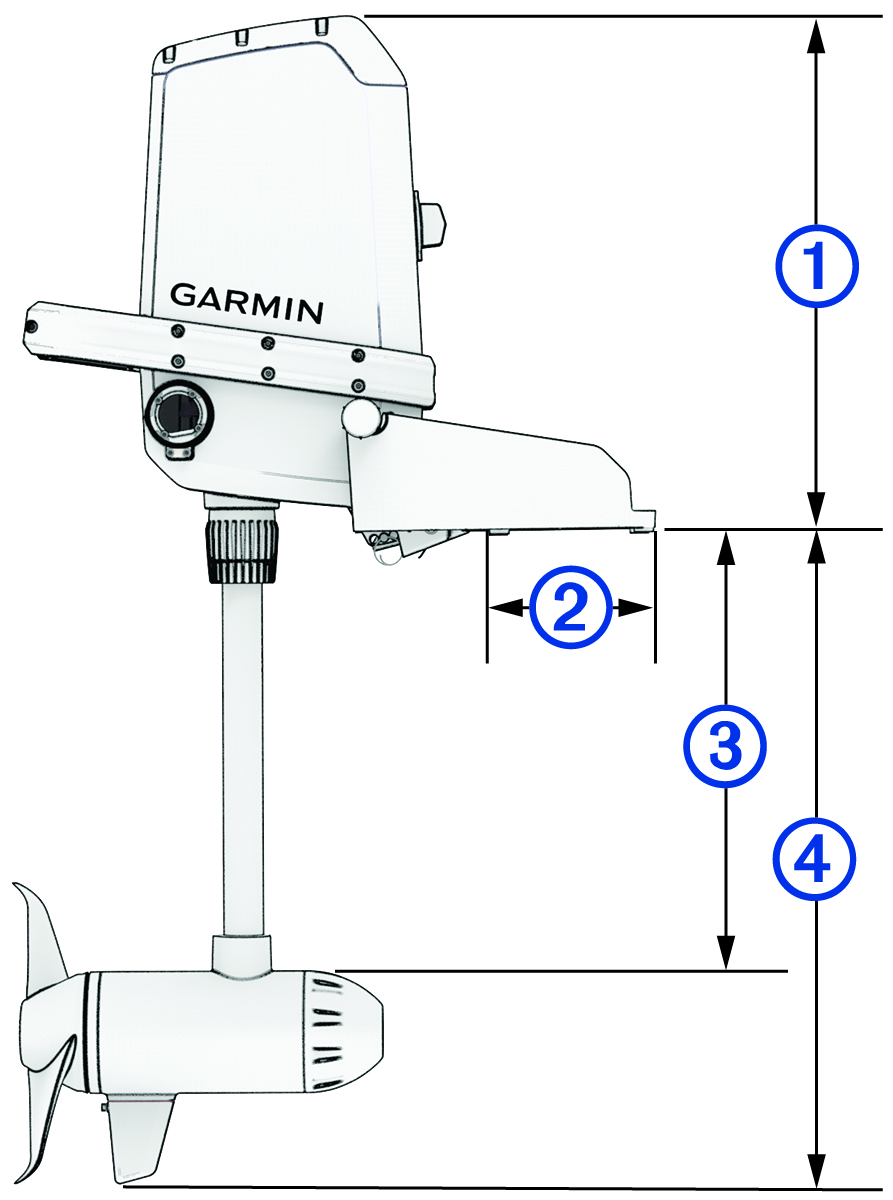

Dimensions view of deployed motor with callouts

1

431 mm (17 in.)

2

29 mm (1 1/8 in.)

3

290 mm (11 3/8 in.) min.

422 mm (16 5/8 in.) max.

4

470 mm (18 1/2 in.) min.

602 mm (23 3/4 in.) max.

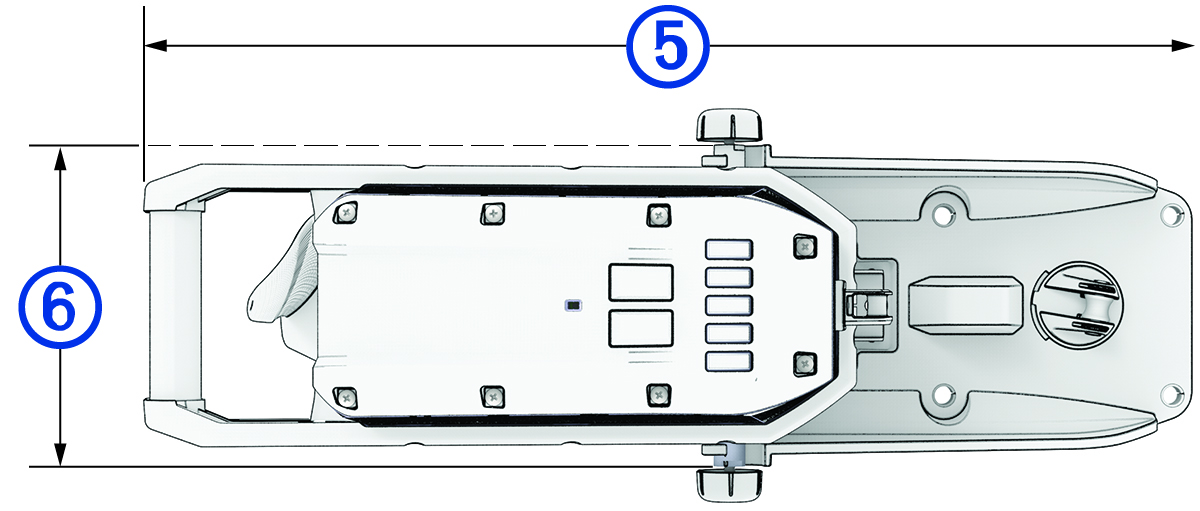

Overhead dimensions view of motor with callouts

5

527 mm (20 3/4 in.)

6

185 mm (7 5/16 in.)

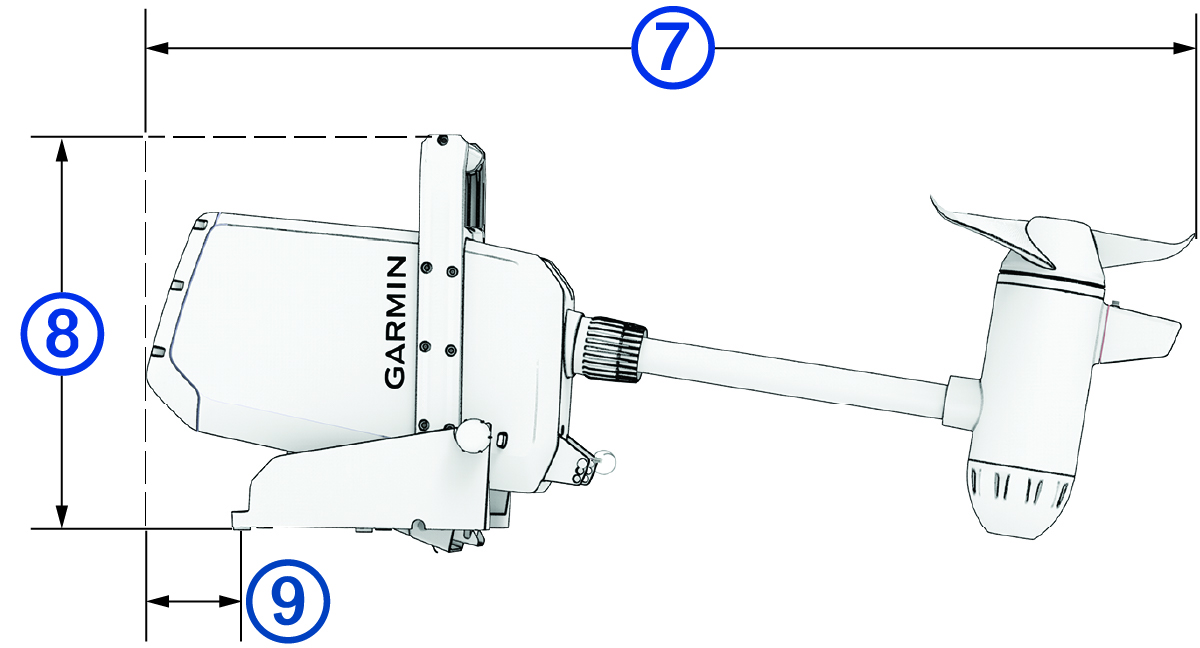

Dimensions view of stowed motor with callouts

7

1005 mm (39 5/8 in.)

8

385 mm (15 3/16 in.)

9

112 mm (4 3/8 in.)
