Adjusting the Depth of the Trolling Motor

WARNING

Before you set the motor depth, you must make sure there is enough clearance for the propeller throughout the rotation of the motor shaft (Checking the Propeller Clearance).

  1. Loosen the collar at the base of the steering system housing.

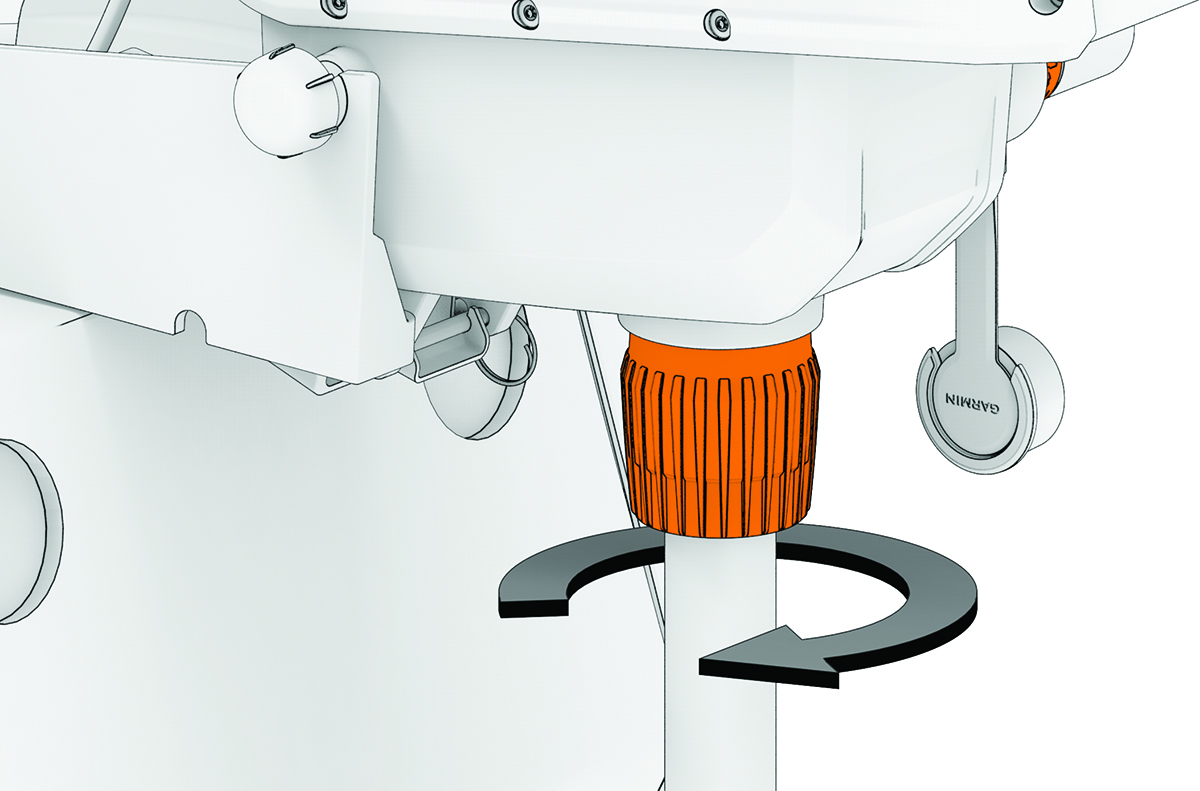

    Loosening depth adjustment collar
  2. Raise or lower the depth of the trolling motor.
  3. After you have set the motor to the desired depth, tighten the collar at the base of the steering system housing.
