Pairing the Foot Pedals
If the foot pedals were included with the trolling motor, they are paired with the trolling motor at the factory. Follow these steps to pair a new set of foot pedals.
You must pair each pedal separately.
-
On the trolling motor, press
three times to enter pairing mode.
The
LED indicator flashes blue as it searches for a connection.
-

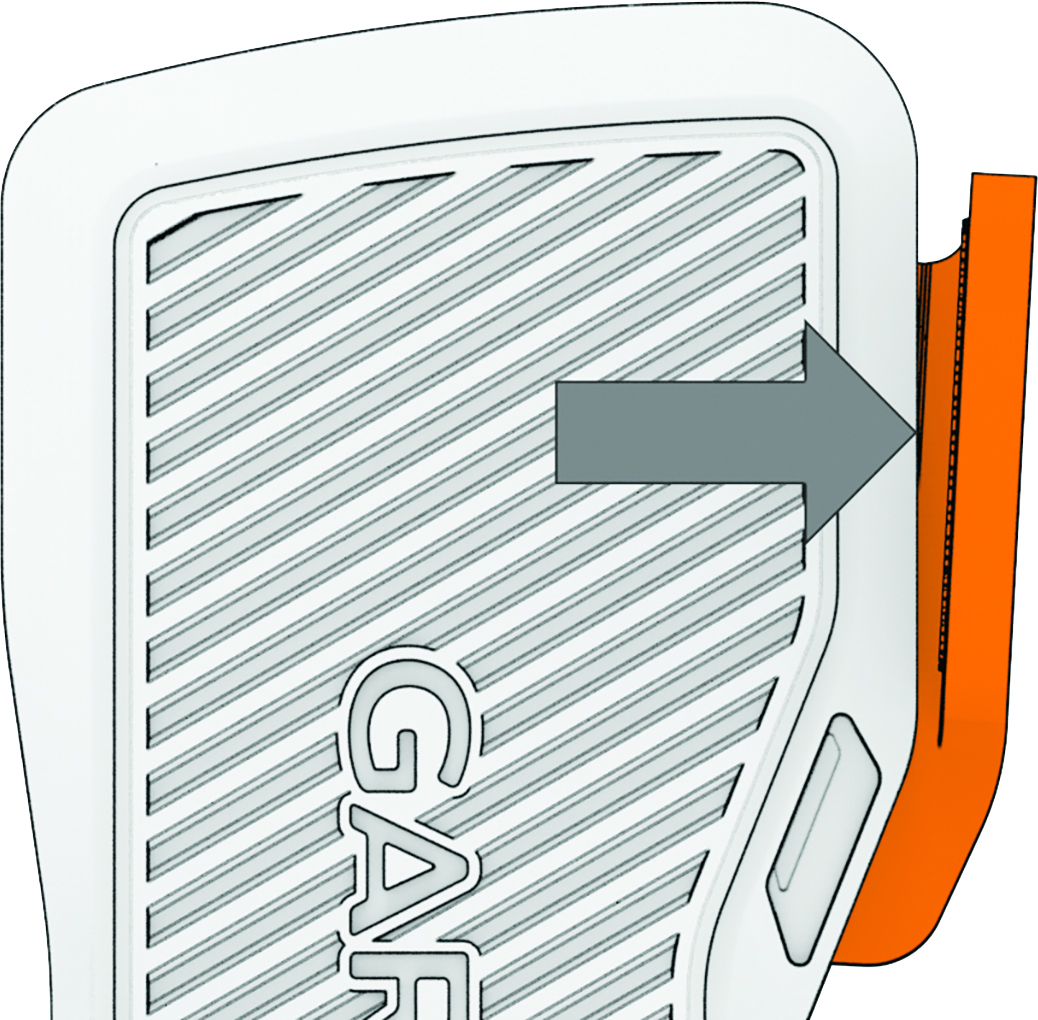

Push the lever on the foot pedal three times.
The LED indicator light on the foot pedal flashes blue as it searches for a connection, and turns solid green when the connection is successful.
TIP:
As a test, when pressing on the pedal lever, the LED indicator light flashes green to indicate that the pedal is paired to the motor, or it flashes red to indicate that it is not paired.
