Changing the Propeller

WARNING

Always disconnect the motor from the battery before handling or working with the propeller to avoid serious injury or death.

NOTICE

You should use the Force® Current trolling motor with the high-efficiency propeller only in open-water conditions. When using the high-efficiency propeller in shallow water conditions, there is an increased risk of damaging the propeller if the motor collides with an underwater obstacle.

The Force Current trolling motor includes a high efficiency propeller and a weedless propeller. Follow these steps when changing propellers.

  1. Using a 9/16 in (15 mm) socket, remove the nut that secures the propeller.

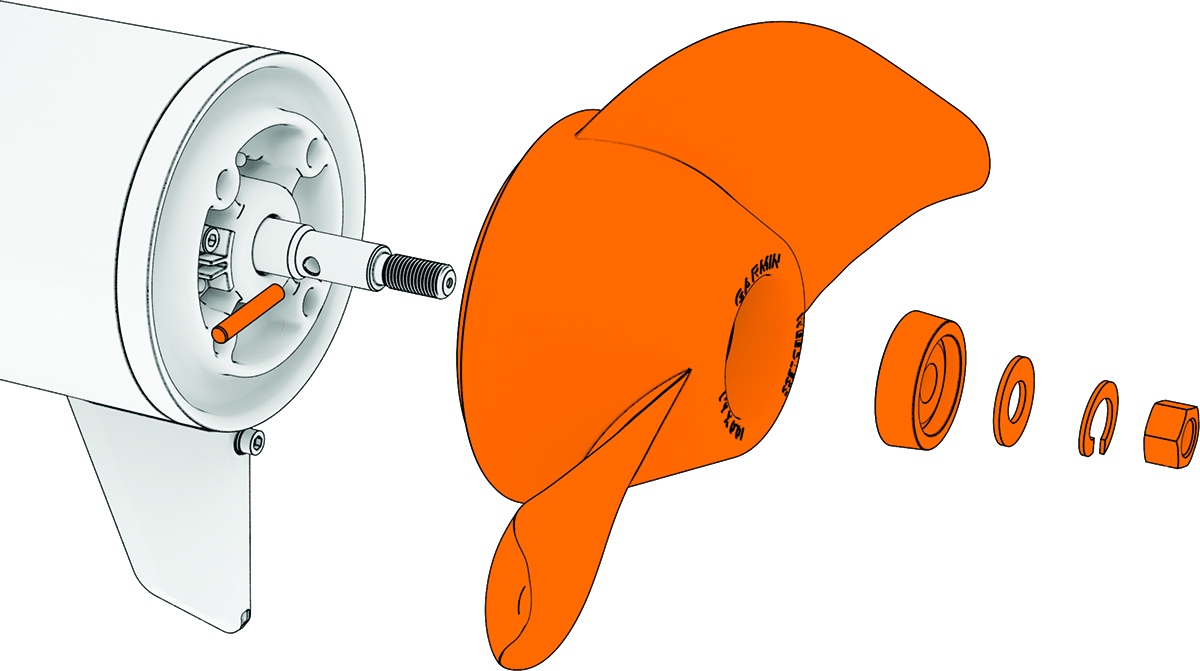

    Exploded vieww of propeller
  2. Remove the propeller and set aside the lock washer, flat washer and sacrificial anode.
  3. Make sure the pin in the propeller motor shaft is in place, and replace it if necessary.
  4. Install the new propeller.
  5. Place the anode, flat washer, lock washer, and nut back on the propeller drive shaft.
  6. Using a 9/16 in (15 mm) socket, tighten the nut to 16.27 N-m (12 lbf-ft) to secure the propeller.
