Overview
All volume levels are saved between power cycles.
The Communication/Navigation/Surveillance (CNS) system includes the audio interface, communication radios, navigation radios, and Mode S transponder. These functions can be accessed from the Main Menu and from the boxes that make up the CNS Data Bar located at the top of the PFD and/or MFD.
The following Audio and CNS features are discussed in this section:
-
COM Operation
-
NAV Operation
-
VOR/LOC
-
Marker Beacon Receiver
-
Mode S Transponder
-
Flight ID
-
Mono/Stereo Headsets
-
Intercom
-
Speaker
-
Passenger Address
-
Clearance Recorder and Player
-
3D Audio
-
Simultaneous COM Operation
-
Garmin Pilot™ App Volume Control
-
Entertainment Inputs
-
COM Freq Changed Tone
-
Abnormal Operation
|
|

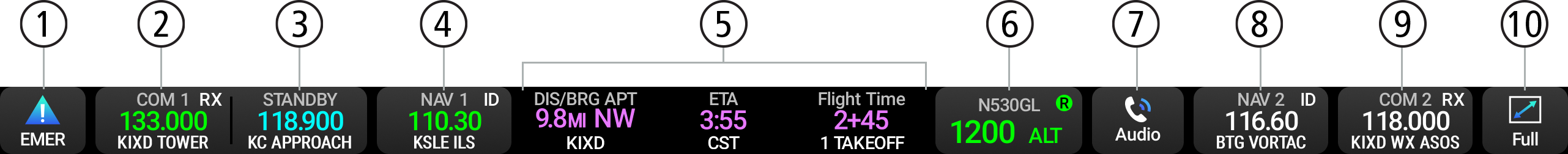

EMER Button |
Opens the Emergency Application to reduce pilot workload in the event of an emergency. |
|---|---|---|
|
|
COM1 Button |
Transfers the standby and active frequencies for the number one radio. |
|
|
Standby Button |
Displays a number pad for the corresponding NAV or COM radio to change the standby frequency. |
|
|
NAV1 Button |
If no standby button is present, the NAV button will open the NAV 'Standby' window to change and transfer frequencies. |
|
|
(Configurable) Data Bar |
See the Data Bar section in System Overview for more information. |
|
|
Transponder |
Displays aircraft ID, transponder code and mode, and whether receiving or transmitting. If touched it will open the 'Transponder Control' window. |
|
|
Audio Button |
If an internal audio panel is configured, this button will open the 'Audio' window. |
|
|
NAV2 Button |
If no standby button is present, the NAV button will open the NAV 'Standby' window to change and transfer frequencies. |
|
|
COM2 Button |
If no standby button is present, the COM button will open the COM 'Standby' window to change and transfer frequencies. |
|
|
Split or Full Button |
Toggles the display between full and split screen. |
