Vehicle Power Adapter Overview

NOTICE

The vehicle power adapter included with your Garmin DriveSmart™ 66/76/86 device is not compatible with any other Garmin® devices. Connecting this vehicle power adapter to a different device could cause damage to the device.

NOTE: Some features are not available for all product models.

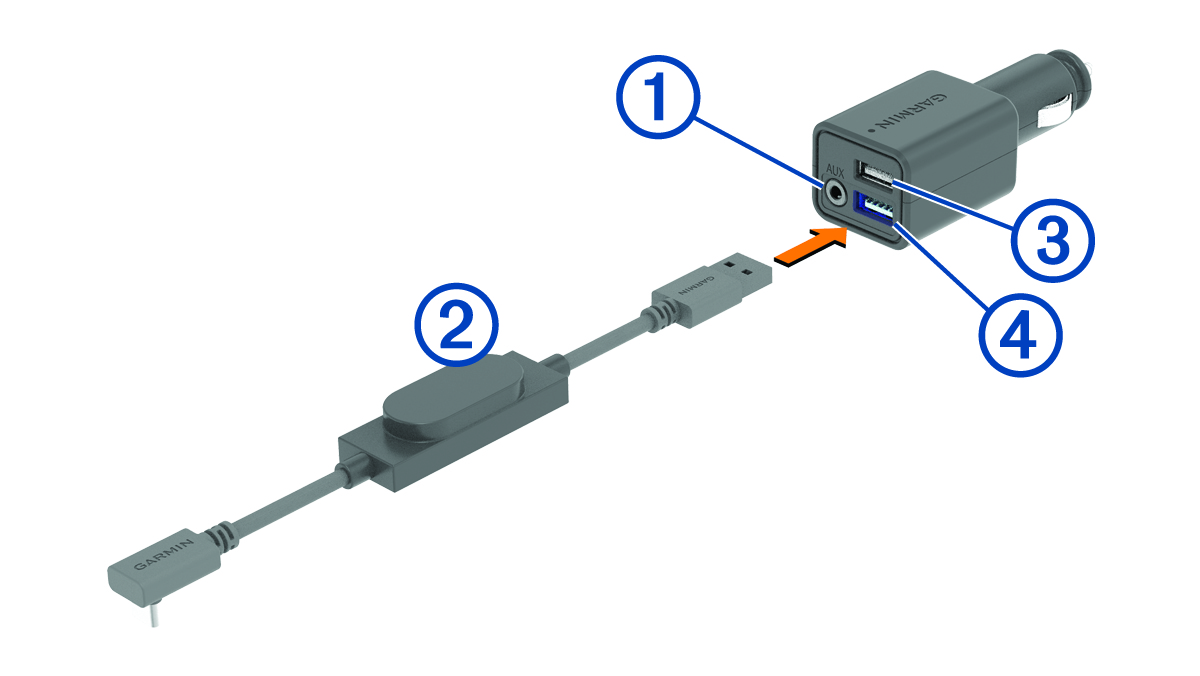

Power adapter with callouts

Callout number one

3.5 mm stereo audio output jack. Connects to the auxiliary input of the vehicle stereo using a 3.5 mm audio cable (not included). Used only when Bluetooth® technology is not enabled for audio.

Callout number two

Power cable. Connects to the USB power port on the back of the navigation device.

Callout number three

2.4 A USB charging port. Charges a connected phone, portable media device, or a compatible accessory.

Callout number four

2.4 A USB charging port. Charges the Garmin DriveSmart device.
