Removing the Lower Link from the Mount Base

Before you can remove the lower link from the mount base, you must remove the steering system from the mount (Removing the Steering System from the Mount).

  1. Pivot the lower link away from the mount base so you can access the latch spring.
  2. Using needle-nose pliers, pull the spring to release it from the S-hook on the upper gas spring arm.

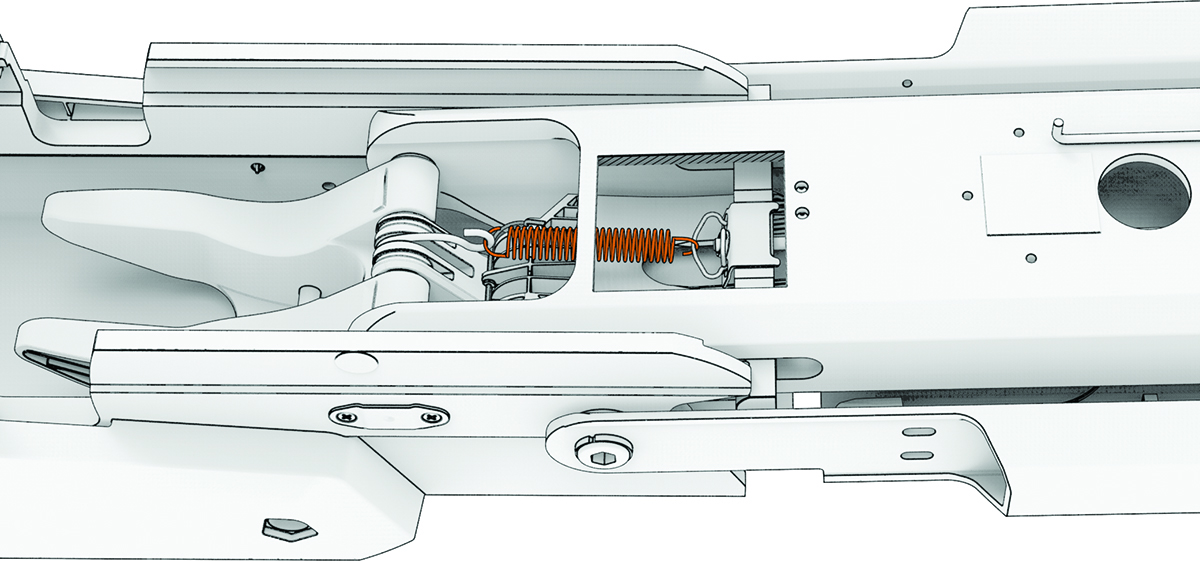

    Lower link latch spring with callouts.
  3. Release the latch spring from the latch mechanism inside the lower link, and set it aside.
  4. Using a #2 Phillips screwdriver, remove the covers from the sides of the mount base.

    Removing lower link pivot pin from the mount base
  5. Push the pin out from one side and pull to remove it from the mount base.
  6. Lift up to remove the lower link from the mount base.
