Removing the Coil Cable from the Shaft Cap

Before you can remove the coil cable from the shaft cap, you must disconnect the cables in the shaft cap (Disconnecting the Cables).
TIP: Count and record the number of coils in the coil cable before removing it to simplify reinstallation.
  1. Using a #1 Phillips bit or screwdriver, remove the four screws that secure the coil cable bracket to the shaft cap housing.

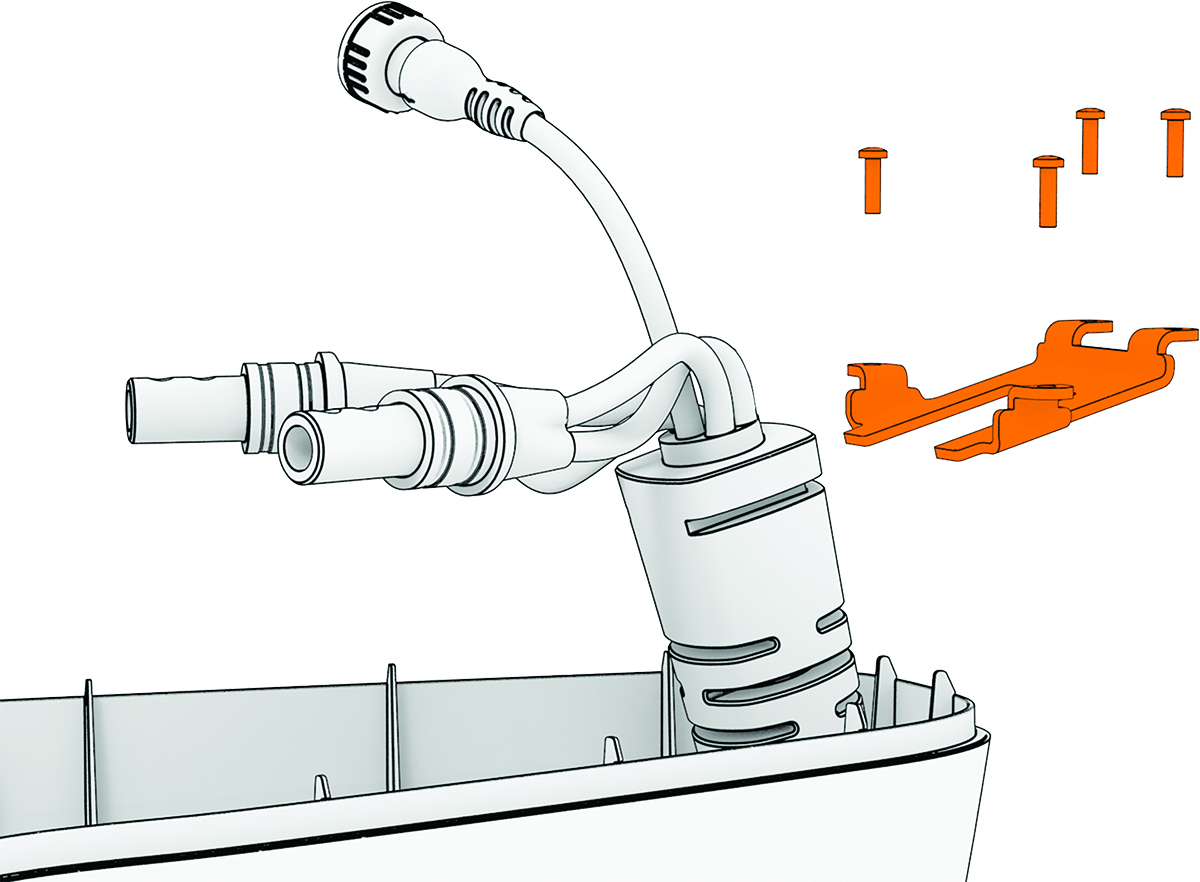

    Removing the coil cable from the shaft cap
  2. Push the coil cable up into the shaft cap, slide the bracket off of the cable strain relief, and set it aside.
  3. Pull the coil cable down and out of the shaft cap.
