Removing the Transducer Cable from the Shaft
Removing the recessed nut to release the transducer cable requires a custom spanner wrench. The spanner wrench is included in the transducer replacement kit and in the shaft hardware service kit.
-

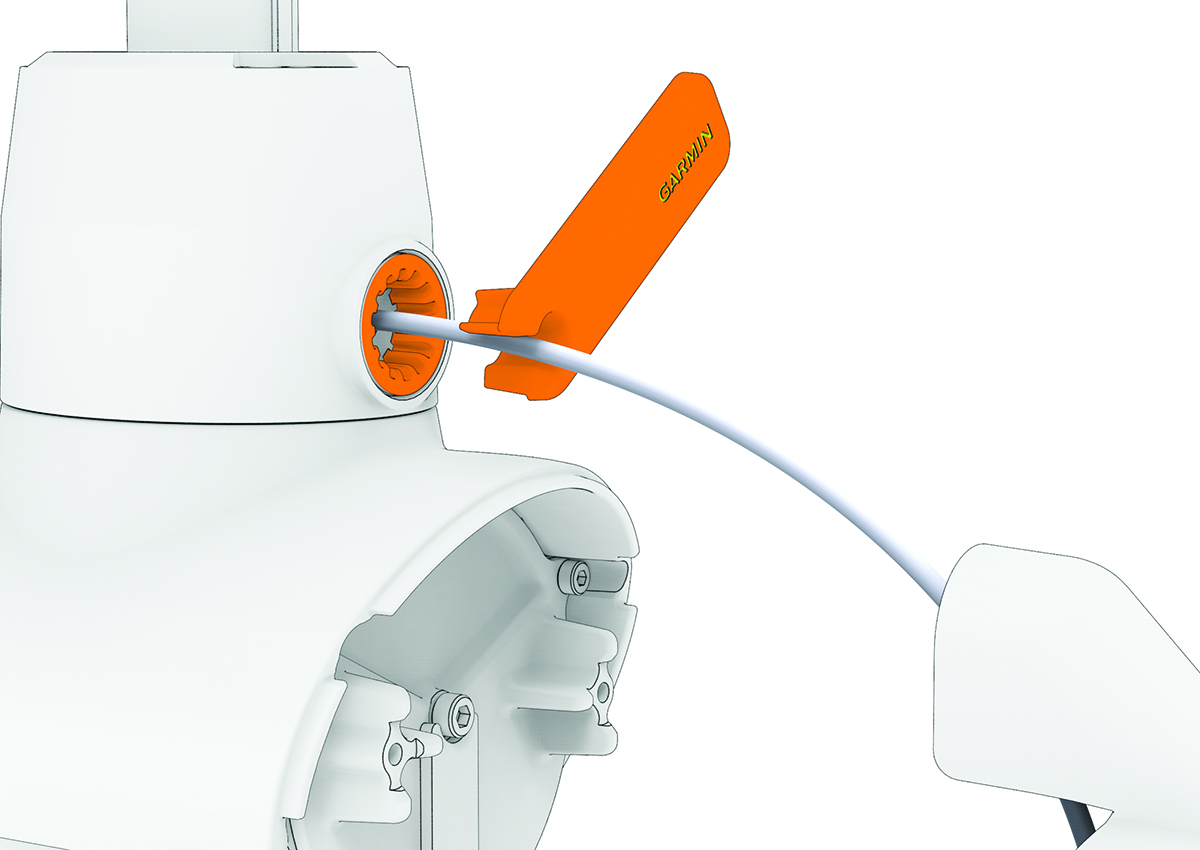

Using the custom spanner wrench, remove the recessed nut that secures the transducer cable to the shaft.
-

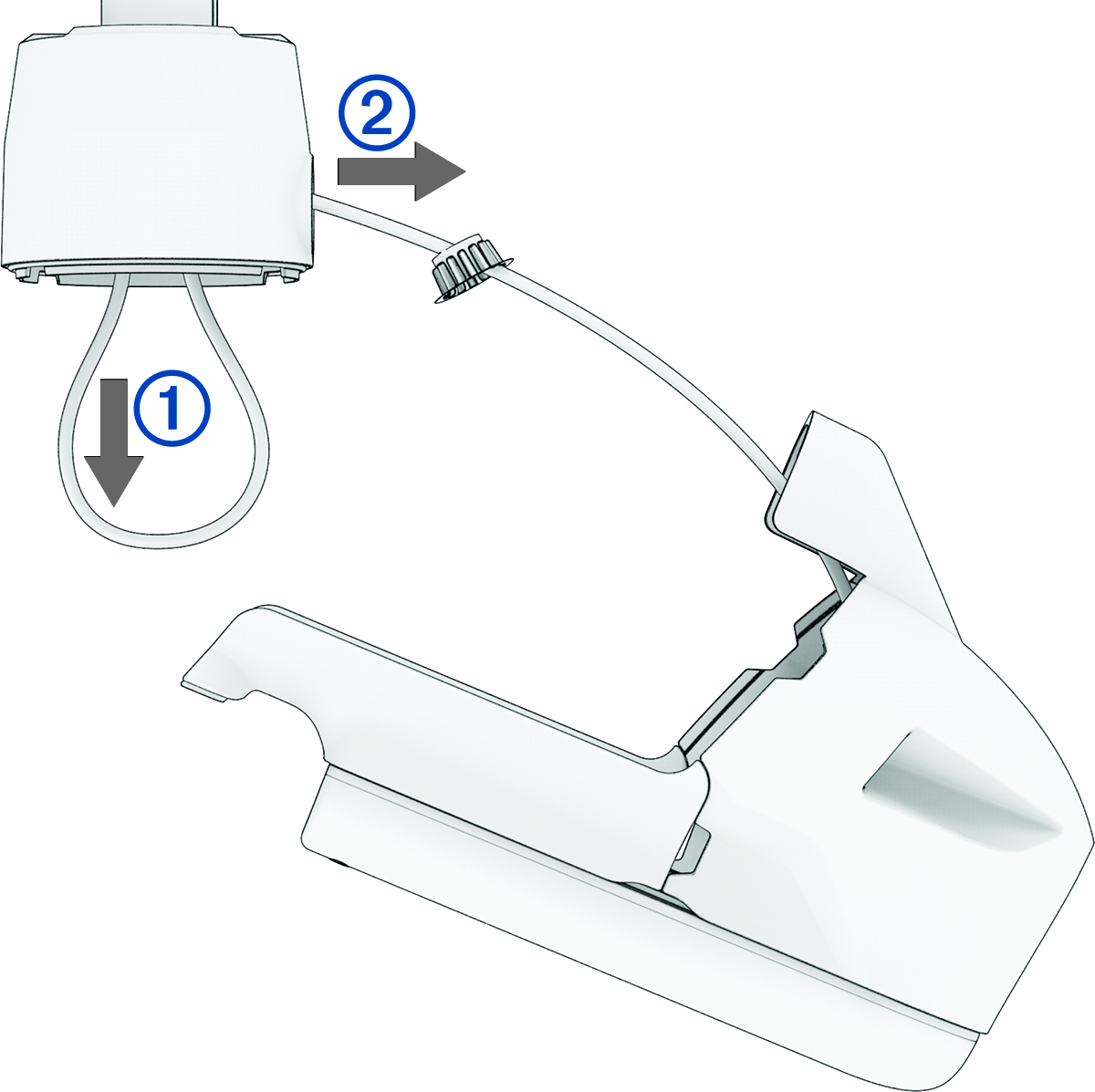

Carefully pull the transducer cable straight down
through the bottom of the shaft until it is completely removed from the shaft.
-
After you pull the transducer cable through the shaft completely, pull it through the hole in the front of the shaft base
, along with the cable gland.
