Installing the Mount on the Deck

Label identifying the parts bag required for this procedure:

A icon
NOTE: If the supplied bolts are not long enough for the mounting surface, you must obtain the appropriate length stainless steel pan head 1/4-20 (M6x1) bolts.
  1. Select a mounting location on the bow of your boat, according to the mounting considerations.
  2. Pivot the top parts of the mount up and back so you can access the mounting holes on the mount base.
  3. Place the included mounting template on the mounting location with the mount bumper on the template Callout number 1 overhanging the gunwale or the edge of the boat deck.

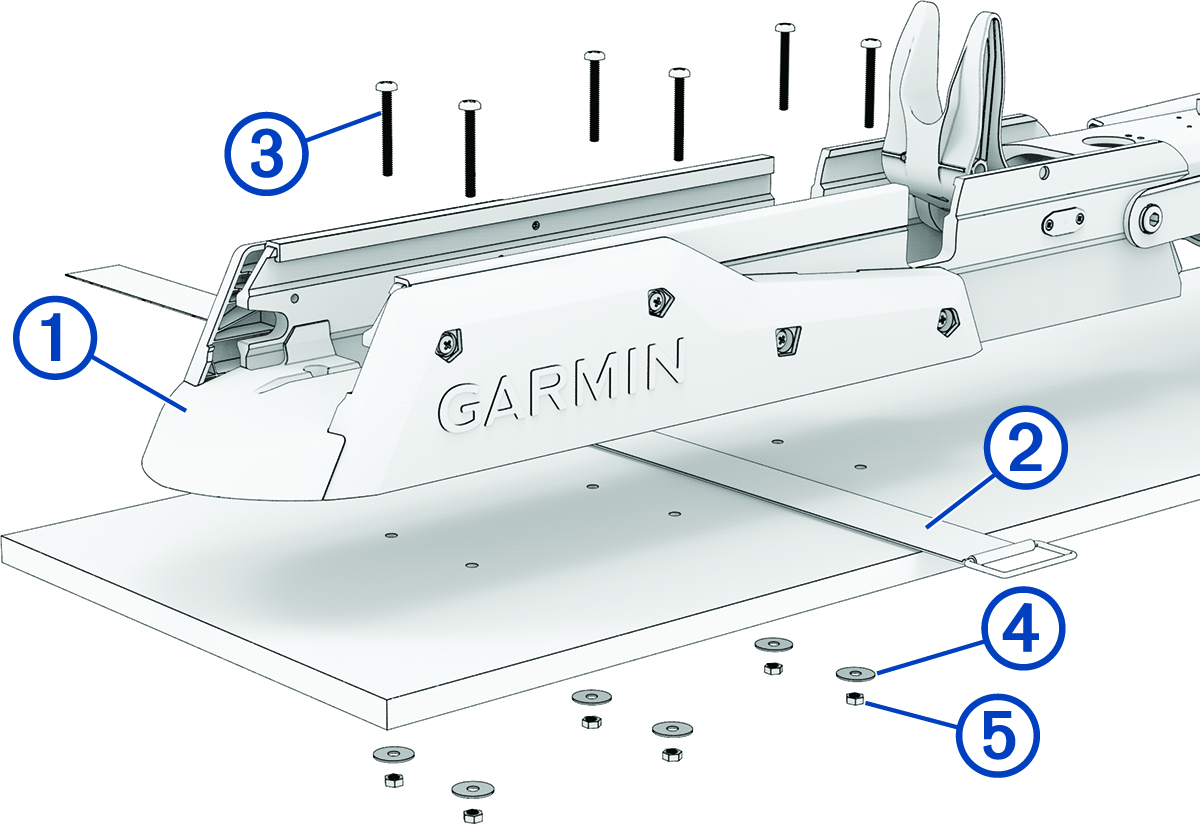

    Exploded view of mount with callouts
    NOTE: There are two mounting hole options on the port side of the bow end of the base. You can choose which mounting hole to use depending on the installation angle and the shape of the hull.
  4. Mark the mounting hole locations on the boat deck.
  5. Using a 5/16 in. (8 mm) drill bit, drill the mounting holes.
  6. Place the safety strap Callout number 2 under the mount base near the center, with the hook and loop fasteners facing downward.
    NOTE: You must place the safety strap under the mount before you secure it to the surface. If you do not install the safety strap at this time, you may need to partially disassemble the motor later to install it correctly.
  7. Place the mount base on the boat deck on top of the safety strap, aligning the holes on the mount with the mounting holes.
  8. Secure the mount to the deck using the included bolts Callout number 3, washers Callout number 4, and locking nuts Callout number 5.
  9. Tighten the nuts to 10.85 N m (8 lbf-ft.).
