Installing the Handle on the Pull Cable

Label identifying the parts bag required for this procedure:

E icon
CAUTION

You must install the included R-pin in the handle. Using an inadequate R-pin in the handle may cause a failure of the handle potentially leading to personal injury.

  1. Insert the pull cable through the handle.

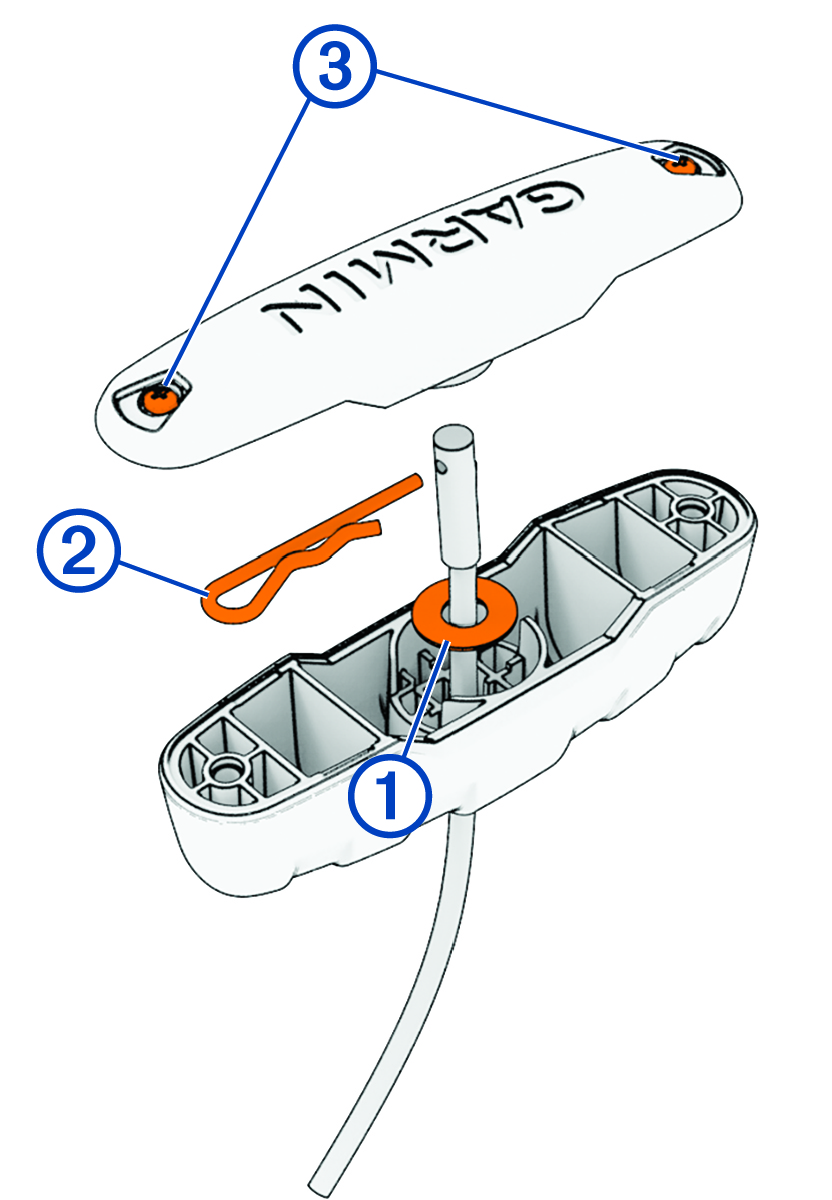

    Exploded view of handle with callouts
  2. Insert the pull cable through the washer Callout number 1.
  3. Push the R-pin Callout number 2 through the hole on the end of the pull cable.
  4. Pull the cable down so that the washer and R-pin rest fully in the handle.
    NOTE: If the washer and the R-pin are not fully seated in the handle, you will not be able to install the handle cover.
  5. Place the handle cover on the handle and, using a #1 Phillips screwdriver, tighten the screws Callout number 3.
