Installing the Steering Servo on the Lower Link of the Mount
Label identifying the parts bag required for this procedure:
-

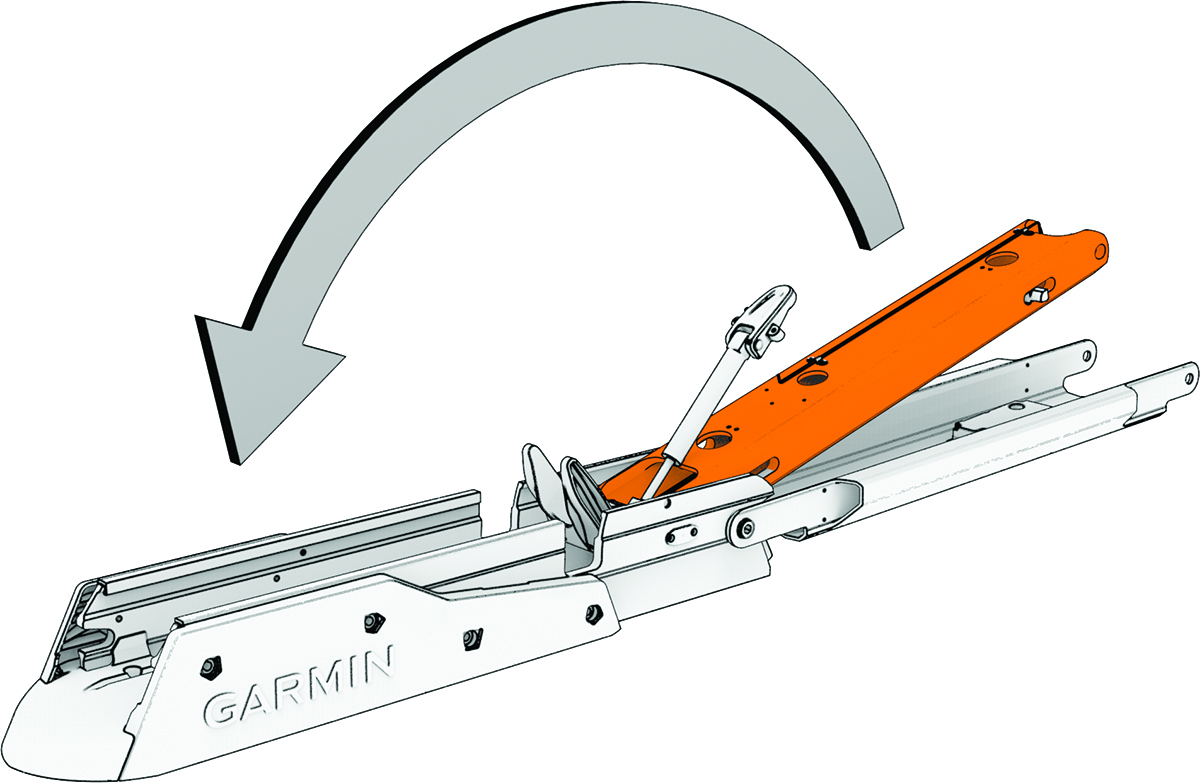

Pivot the lower link of the mount forward until it locks into the base.
-

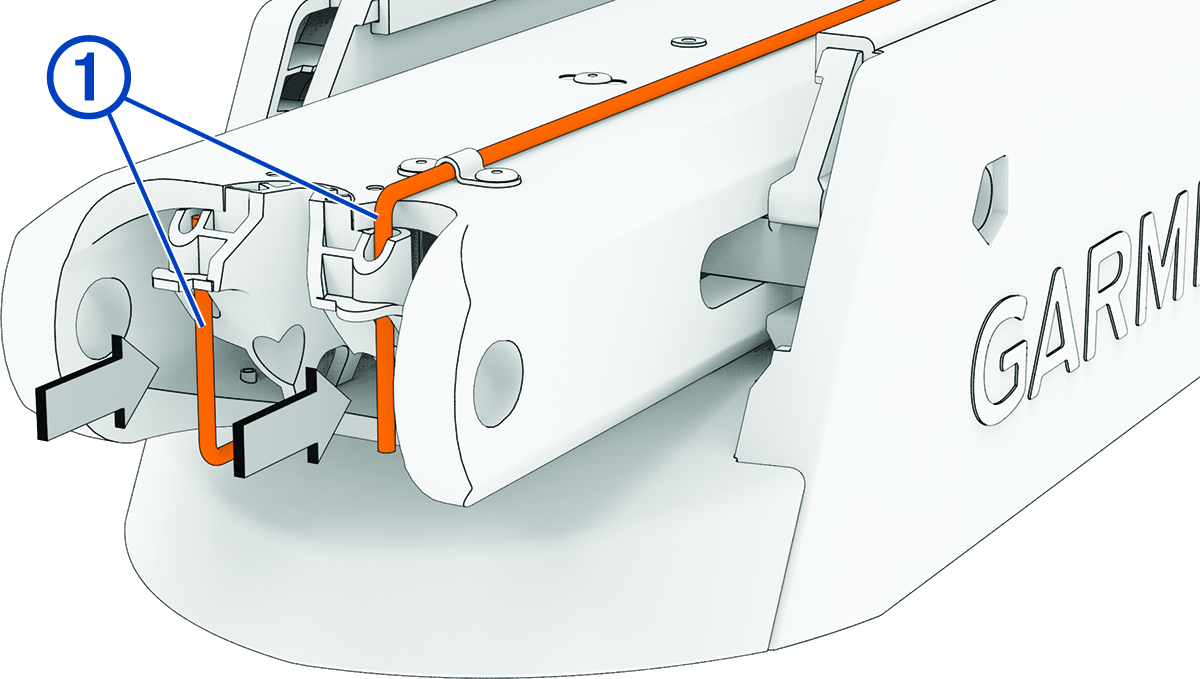

Push the two safety rods
into the lower link as far as possible.
-

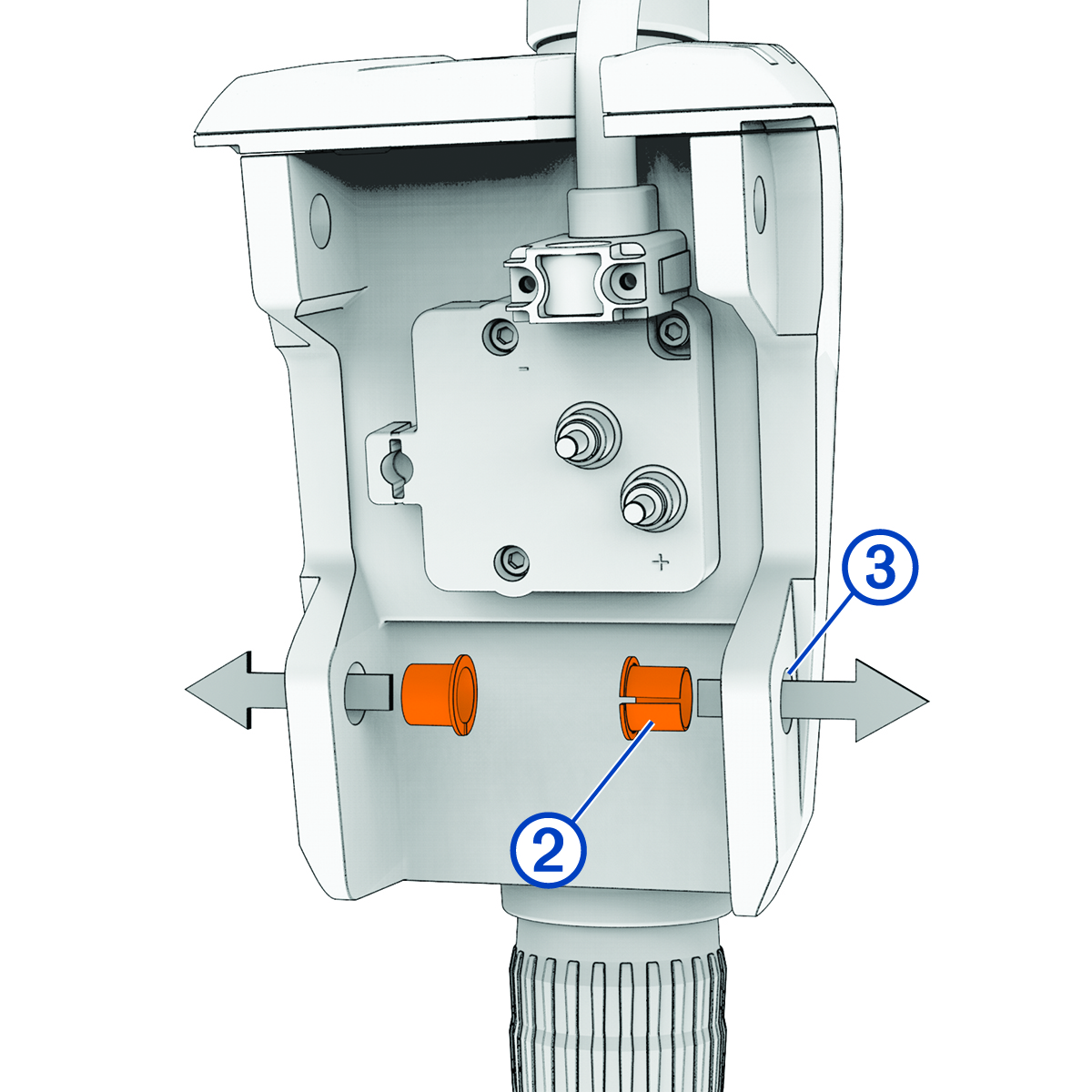

Make sure that the bushings
are installed in the lower holes
on the steering servo housing.
If the bushings were removed, you can re-insert them from the inside out.
-
Holding the pull cable
up, place the steering servo housing onto the lower link of the mount, aligning the lower holes on the housing with the holes on the link.
-

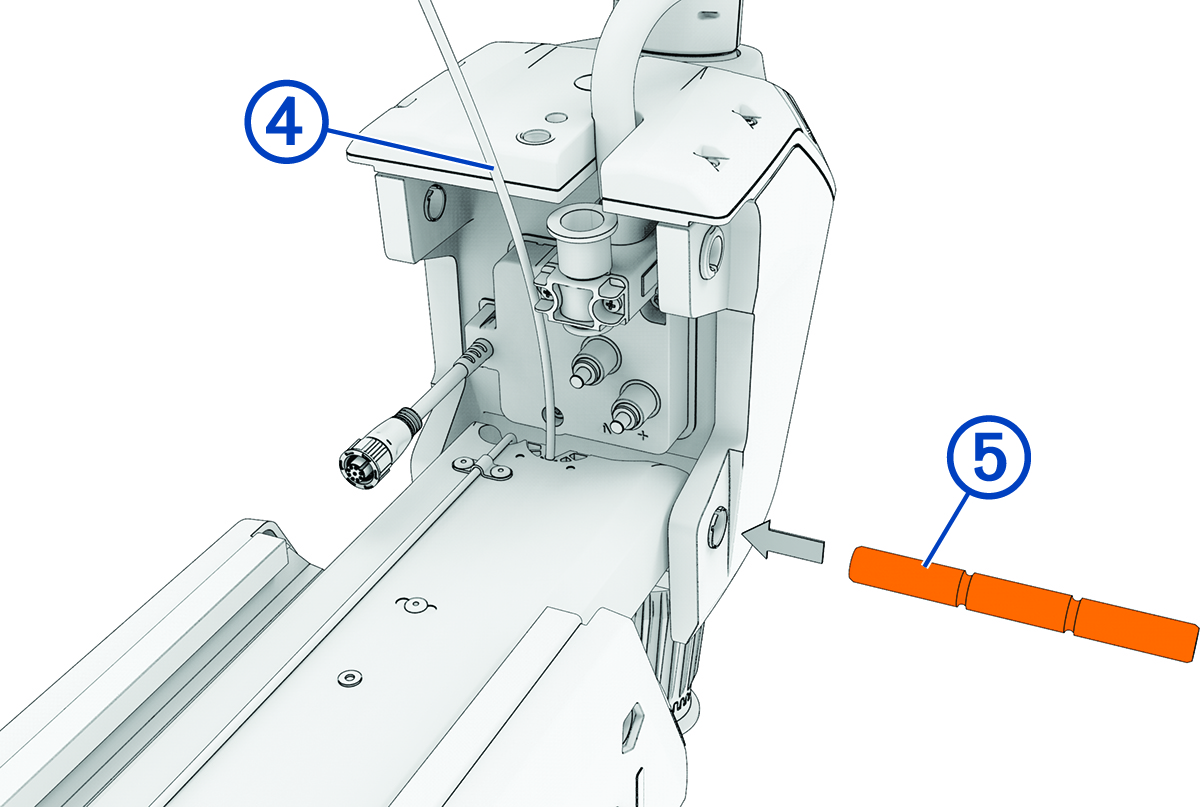

While lifting up on the steering servo housing, push the pivot pin
through the housing and the link to hold it in place.
Do not hit the pin with a hammer or other object. Do not drill or modify the holes. Although it is a snug fit, the pin slides in completely when pushed by hand. Damage caused by hammering the pin or modifying the holes is not covered under warranty.
-

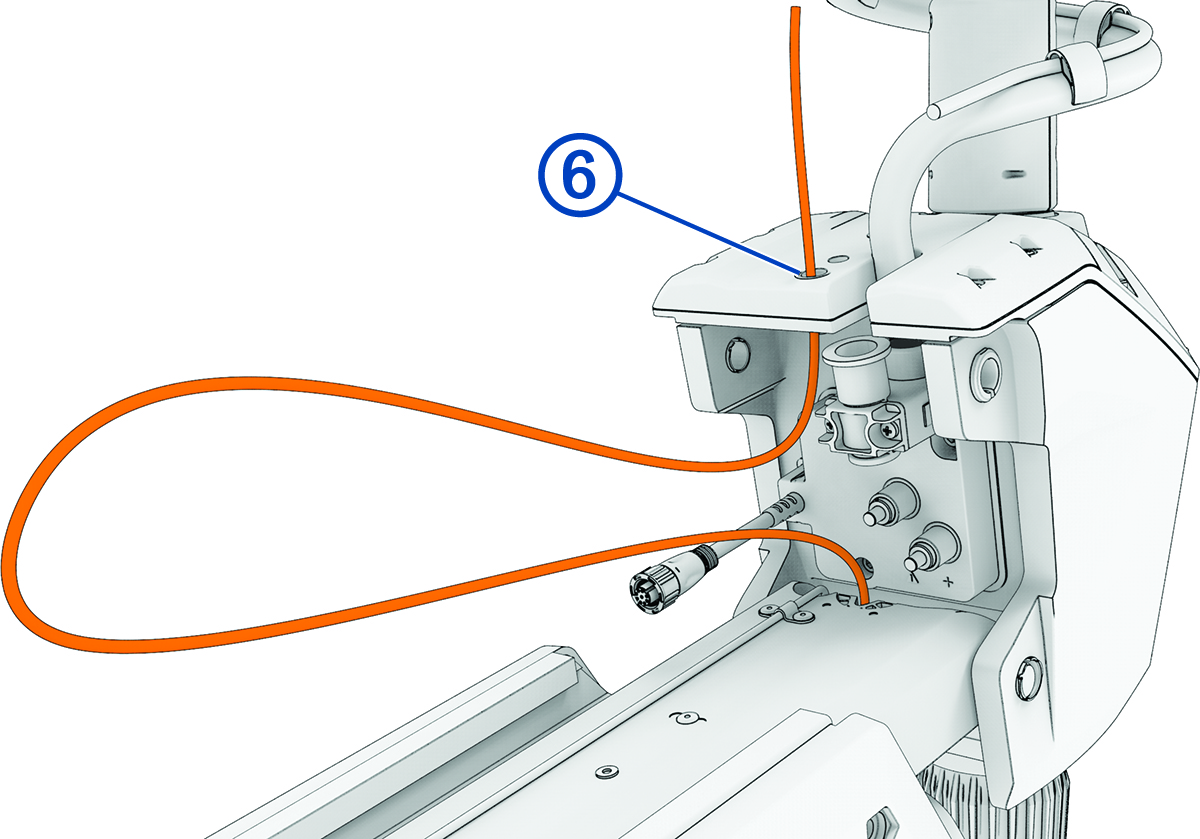

Route the pull cable upward through the top of the steering servo housing
.
