Installing the Propeller

The parts bag containing the hardware needed for this procedure is included in the box with the high efficiency propeller and does not have a label.

This product is packaged with a high efficiency propeller and a weedless propeller. You should choose the propeller that best suits your fishing. The high efficiency propeller is quieter and provides more thrust. The weedless propeller is designed to help prevent weeds from wrapping around the propeller and the shaft.

  1. Insert the pin Callout number 1 through the propeller motor shaft.

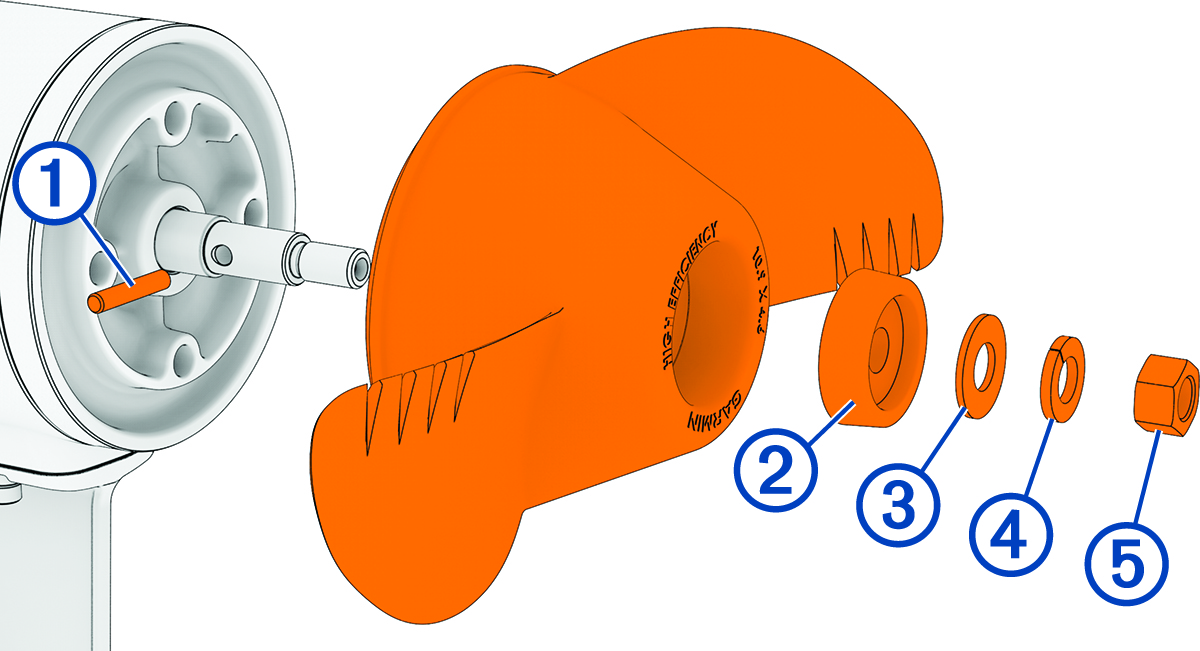

    Exploded view of propeller assembly with callouts
  2. If necessary, rotate the motor shaft to orient the pin horizontally so it is less likely to fall out during installation.
  3. Align the channel on the inside of the propeller with the pin, and slide the propeller onto the motor shaft.
  4. Place the anode Callout number 2, washer Callout number 3, lock washer Callout number 4, and nut Callout number 5 onto the end of the motor shaft.
  5. Using a 9/16 in. (14 mm) socket, tighten the lock nut to 16.27 N-m (12 lbf-ft) to secure the propeller.
