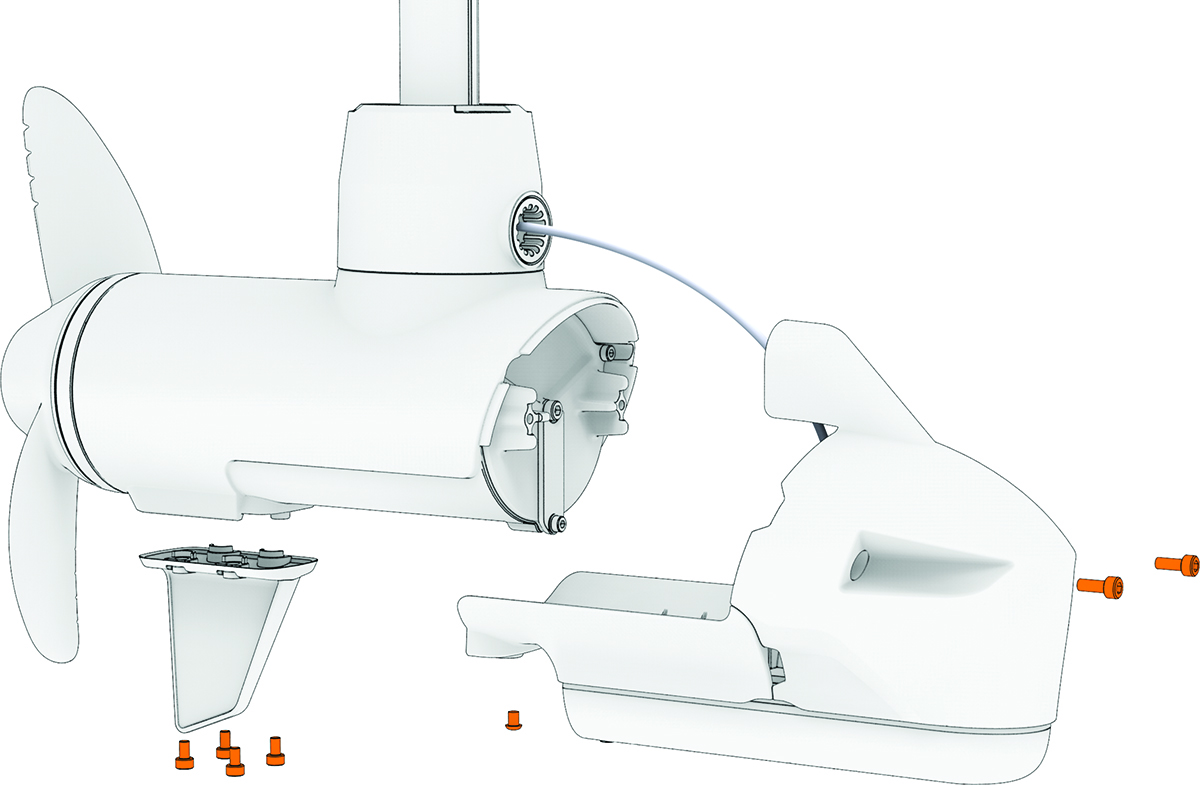

Removing the Skeg and Nose Cone Using a 4 mm hex bit or wrench, remove the four screws that secure the skeg to the propeller drive motor. Remove the skeg. Using a 4 mm hex bit or wrench, remove the two screws that secure the front of the nose cone to the propeller drive motor. Using a 3 mm hex bit or wrench, remove the single screw that secures the bottom of the nose cone to the propeller drive motor. NOTE: You should keep all of these screws and parts in a safe place, because you will reuse them when reassembling the skeg and nose cone. Parent Topic: Removing the Existing TransducerHomeRemoving the Existing TransducerRemoving the Skeg and Nose Cone
