Opening the Shaft Cap

WARNING

Always disconnect the motor from the battery before opening the shaft cap. The power cables in the shaft cap may carry high current, and accidental discharge may cause serious injury or death.

  1. Using a #2 Phillips screwdriver, remove the four screws that secure the lid of the shaft cap.

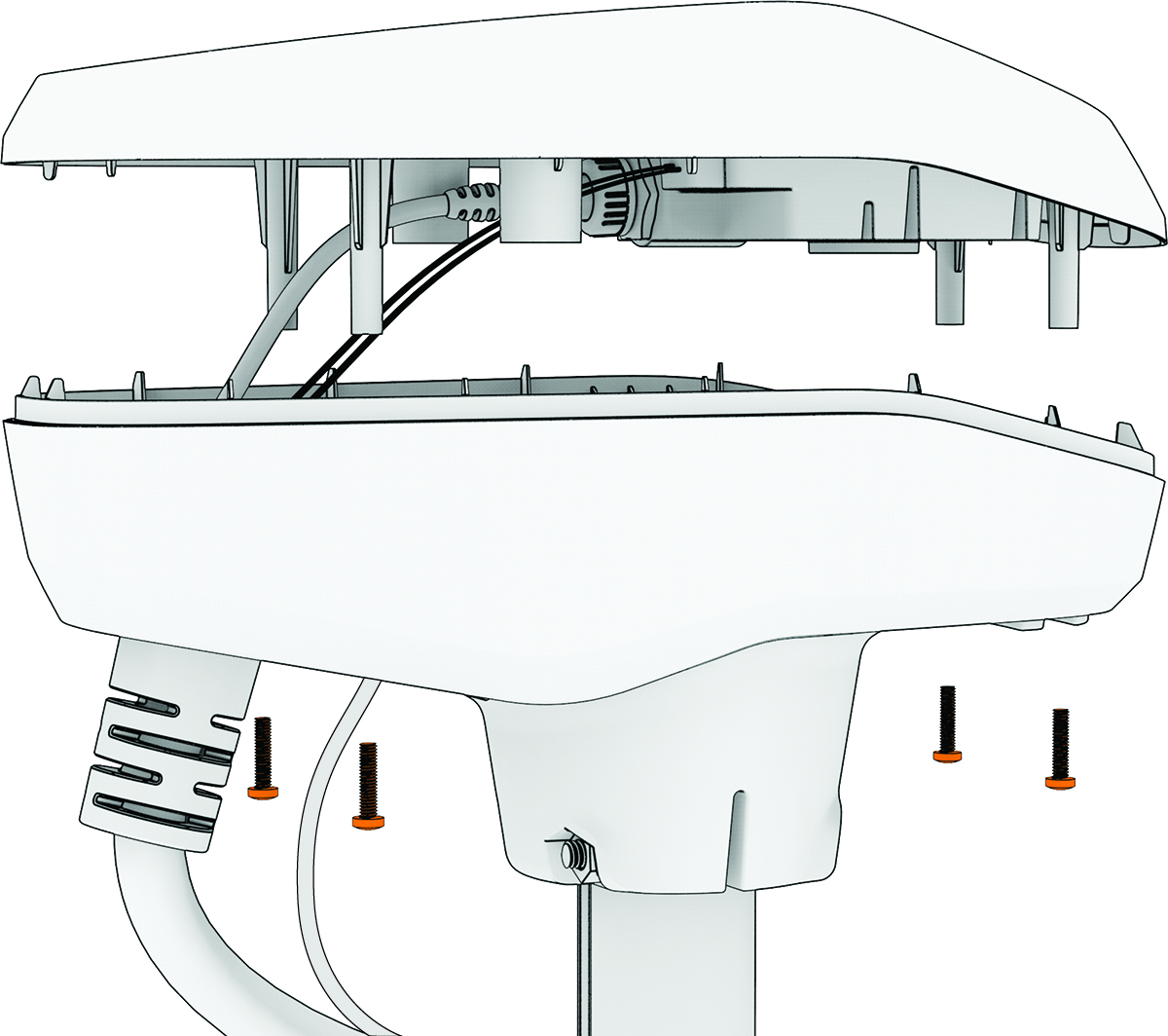

    Exploded view of the top of the shaft cap and the screws that secure it to the shaft cap
  2. Carefully lift up the lid of the shaft cap to access the cable connectors inside.
    NOTICE

    There are two cables connected to the top of the shaft cap. Take care when opening the shaft cap to avoid damaging the cables or connectors.
