Montana 700i/750i Device Overview

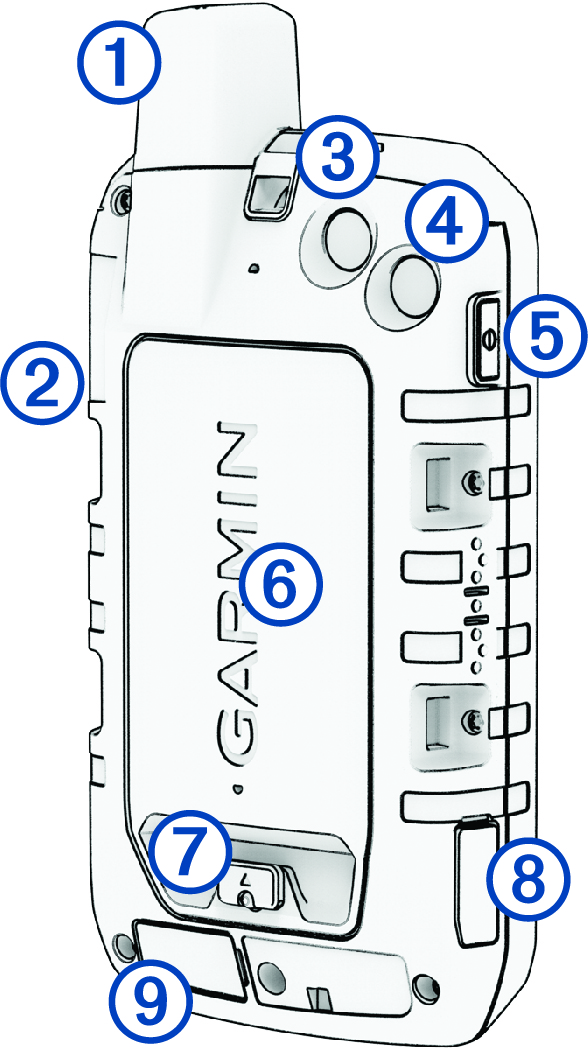

Back view of the device with callouts

Callout number 1

Iridium® and GNSS antenna

Callout number 2

SOS button

Callout number 3

Camera lens (Montana® 750i only)

Callout number 4

Flashlight

Camera flash (Montana 750i only)

Callout number 5

Power button

Power button

Callout number 6

microSD® card slot (under battery pack)

Callout number 7

Battery pack D-ring

Callout number 8

Micro-USB port (under weather cap)

Callout number 9

External Iridium and GNSS antenna port (under weather cap)

GUID-20A50E5B-3DFB-42C7-A3B4-8D55519B532C v5
November 2023
