Installing a Memory Card

WARNING

Do not use a sharp object to remove user-replaceable batteries.

You can install a microSD® memory card, up to 32 GB, in the handheld device for additional storage or pre-loaded maps.

  1. Turn the D-ring counter-clockwise, and pull up to remove the battery pack.
  2. Slide the card holder Callout number 1 to Unlock and lift up.
  3. Place the memory card with the gold contacts facing down.

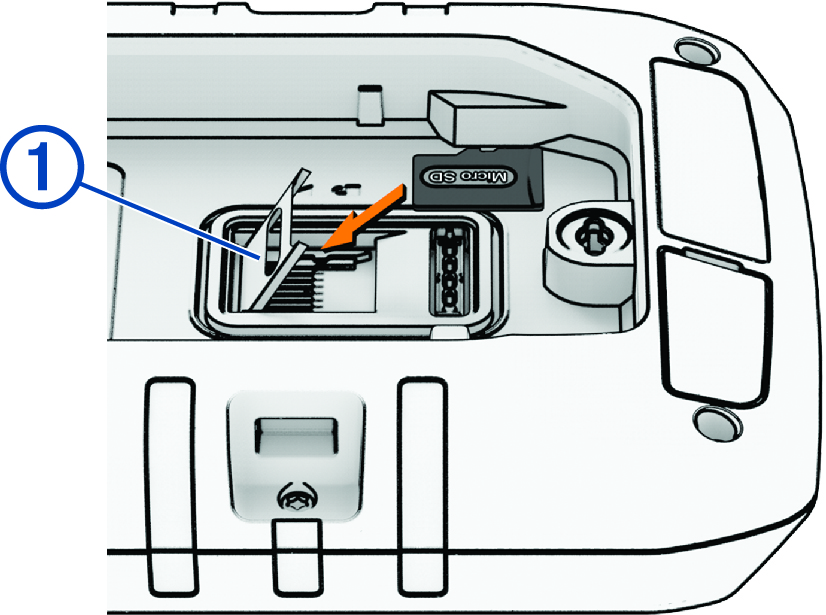

    Close-up view of the microSD card slot with a callout
  4. Close the card holder.
  5. Slide the card holder to Lock to lock it.
  6. Replace the battery pack.
GUID-20A50E5B-3DFB-42C7-A3B4-8D55519B532C v5
November 2023
