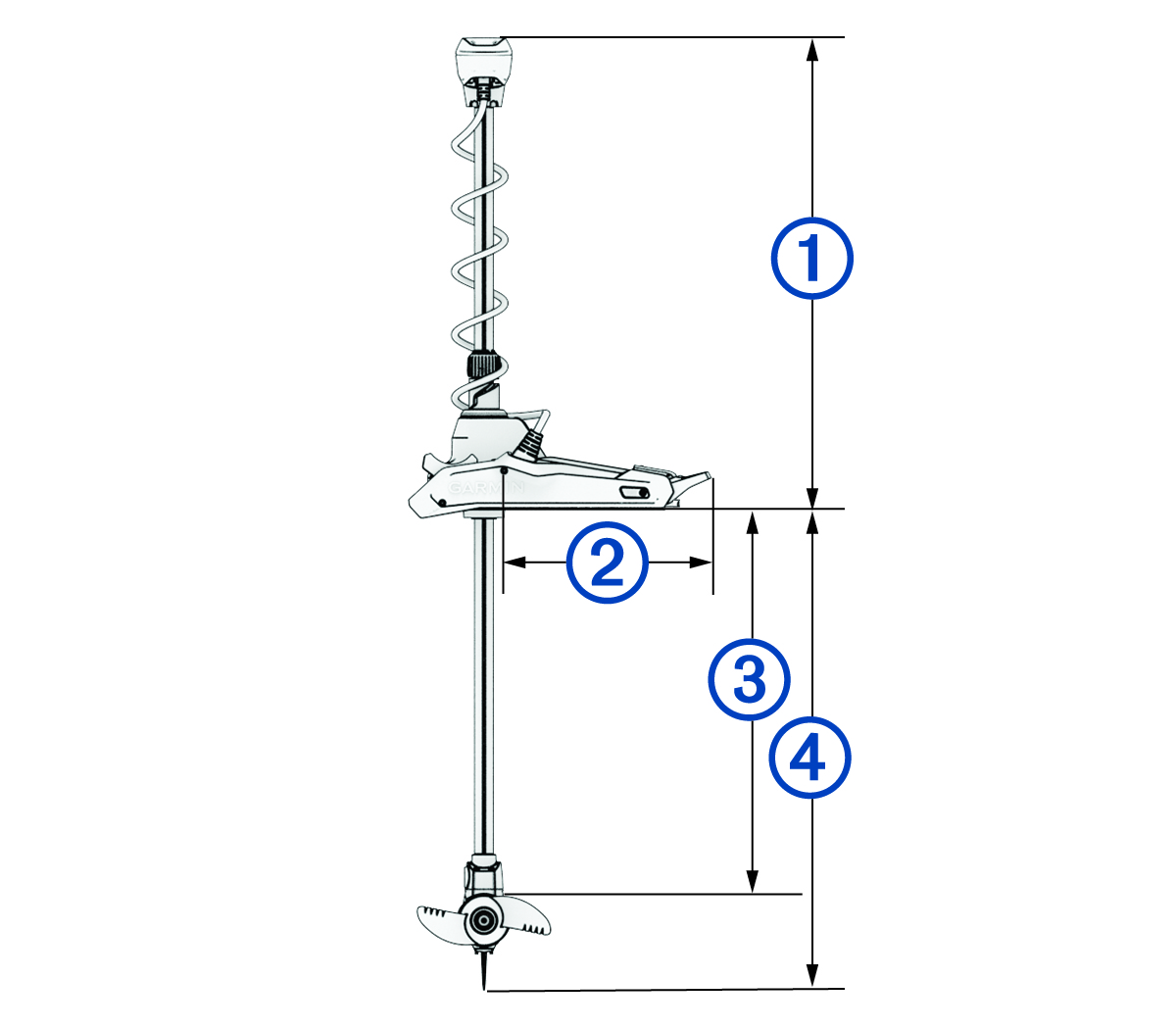

Deployed Dimensions


Device with dimension callouts

Item

48 in. Model

63 in. Model

75 in. Model

90 in. Model

110 in. Model

1

48.6 cm (19 1/8 in.)1

48.6 cm (19 1/8 in.)1

48.6 cm (19 1/8 in.)1

48.6 cm (19 1/8 in.)1

48.6 cm (19 1/8 in.)1

2

46 cm (18 1/8 in.)

46 cm (18 1/8 in.)

46 cm (18 1/8 in.)

46 cm (18 1/8 in.)

46 cm (18 1/8 in.)

3

87.95 cm (34 5/8 in.)

126 cm (49 5/8 in.)

156.5 cm (61 5/8 in.)

194.6 cm (76 5/8 in.)

245.4 cm (96 5/8 in.)

4

107.32 cm (42 1/4 in.)1

145 cm (57 1/4 in.)1

175.9 cm (69 1/8 in.)1

213.7 cm (84 1/8 in.)1

264.5 cm (104 1/8 in.)1

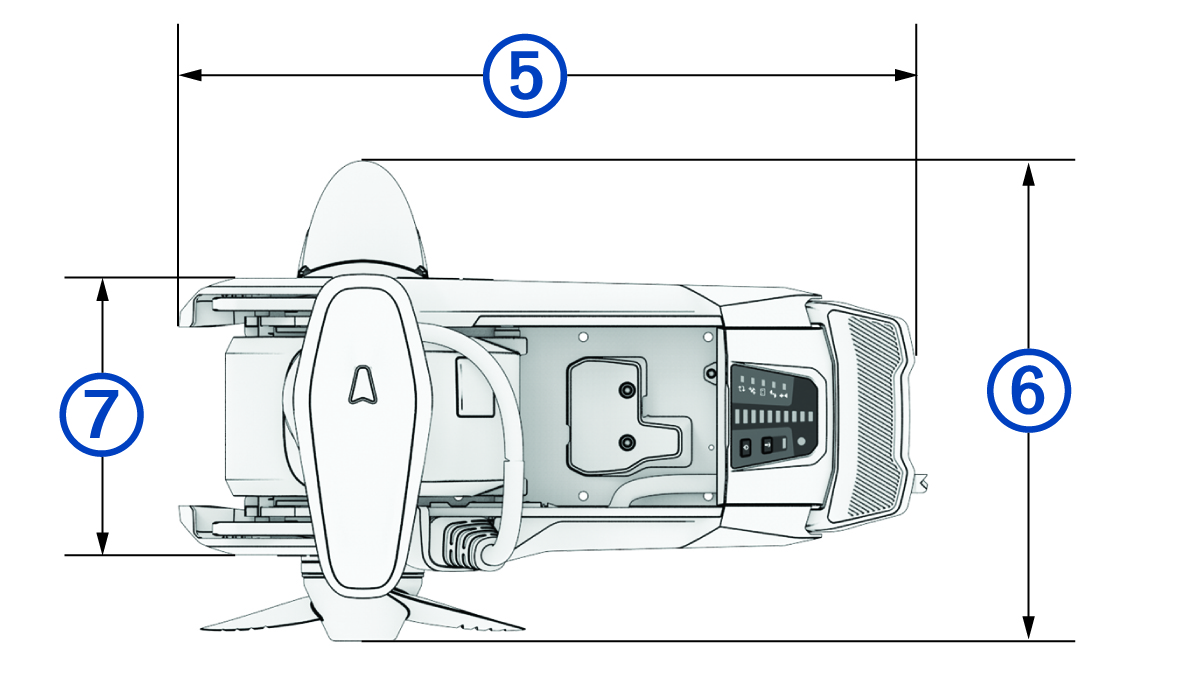

Device with dimension callouts

Item

All Models

5

61.2 cm (24 1/8 in.)

6

With transducer: 42.7 cm(16 13/16 in.)

Without transducer: 41.2 cm (16 1/4 in.)

7

24.6 cm (9 11/16 in.)

1 When deployed at maximum depth.
