Mounting Considerations
You must install the motor in a location where no large metallic objects, such as a tool box, are near the display panel when it is deployed. Large metallic objects can interfere with the magnetic compass, affecting the built-in autopilot performance and potentially leading to personal injury or property damage.
When selecting a mounting location, observe these considerations.
-
You must install the motor on the bow of your boat.
-

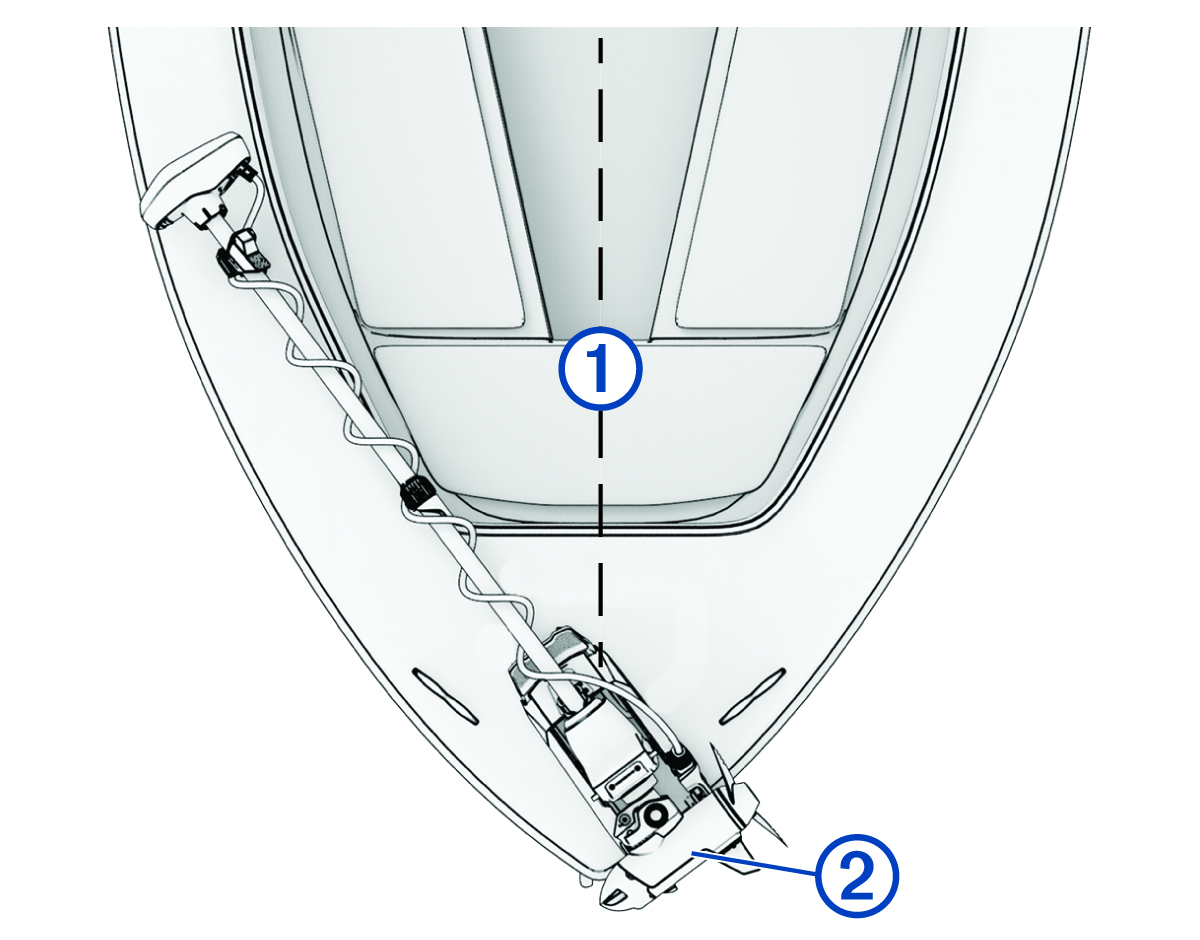

You should install the mount so the deployed motor is as close to the centerline of the boat as possible.
-
You must install the mount with the top of the cutout overhanging the gunwale of the boat. The U shape should extend over the side of the boat.
NOTE: If there is not enough room on the gunwale to install all six bolts, a minimum of four bolts must be used. -
The motor secures to the deck of the boat using bolts, so you must have room to secure the mount from the underside using washers and nuts.
-
The motor must have clearance to move from the deployed to the stowed position and back again, so the installation location must be clear of obstacles.
-
Verify that the deck is strong enough for the weight and force of the trolling motor. Use a backing plate or reinforce the boat if needed.
