Camera Overview

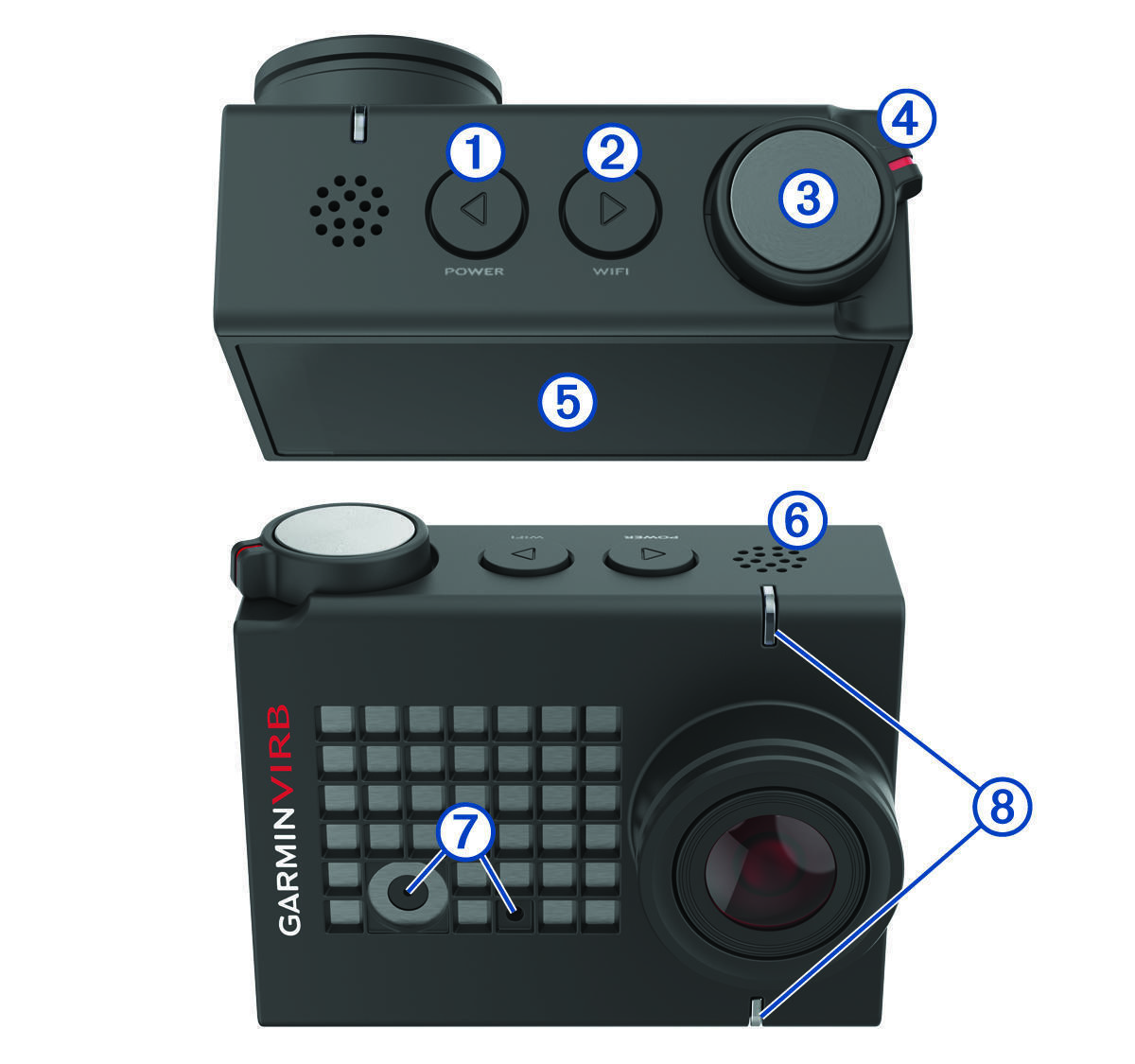

Top and front views of device with callouts

Item

Name

Description

Callout number one

POWER

Hold to turn the device on or off.

From the viewfinder, select to open the main menu.

Select to scroll through sensor status screens, data screens, and menu items.

Callout number two

WI-FI

Hold to turn the Wi‑Fi® radio on or off.

From the viewfinder, select to open the main menu.

Select to scroll through sensor status screens, data screens, and menu items.

Callout number three

Photo and action key

From the viewfinder, select to take a photo.

From the viewfinder, hold take a series of photos in burst mode.

From the menus, select to choose a menu item.

Callout number four

Recording switch

Move the switch to start or stop recording video (Recording a Video).

Callout number five

Touchscreen

Touch to select on-screen items.

TIP: You can use the touchscreen even while the camera is installed in the included camera case, but the touchscreen sensitivity may be reduced.

Callout number six

Speaker

Plays audio during on-device playback.

Callout number seven

Microphones

For the best audio quality, do not touch or cover the microphone area, except with an approved case.

Callout number eight

Status LEDs

Indicate status information about the camera and features (Status LEDs).
