Charging the Device

WARNING

This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information.

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

NOTE: The device does not charge when outside the approved temperature range (Specifications).
  1. Pull up the weather cap from the USB port.

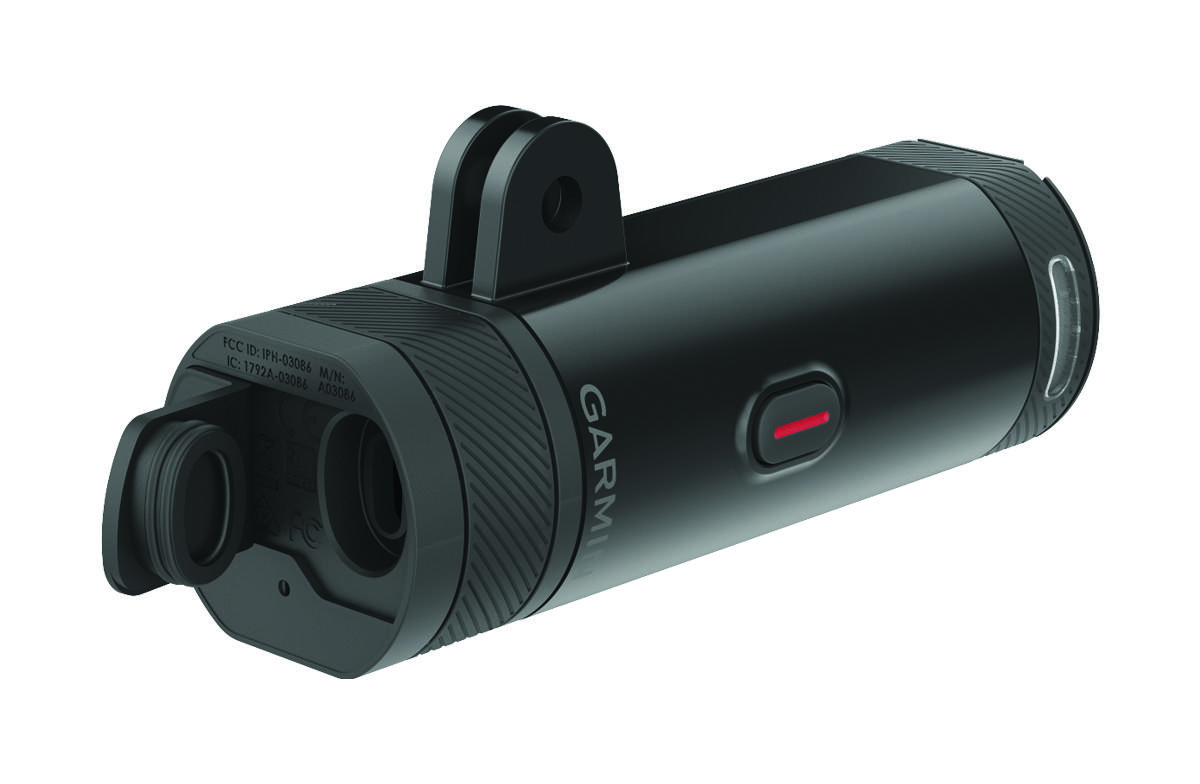

    Device with the weather cap open
  2. Plug the small end of the USB cable into the USB port on the device.
  3. Plug the large end of the USB cable into a power source, such as a USB wall charger or a computer USB port.
  4. Charge the device completely.

The status LED flashes green while charging. The status LED is solid green when charging is complete.
