Installing the Out-Front Mount

You can use the out-front mount to install the headlight and your Edge® device. Garmin recommends that you adjust the mount for the Edge viewing angle before you install and adjust the headlight angle.

  1. Select a secure location to mount the Edge device and headlight where they do not interfere with the safe operation of your bike.

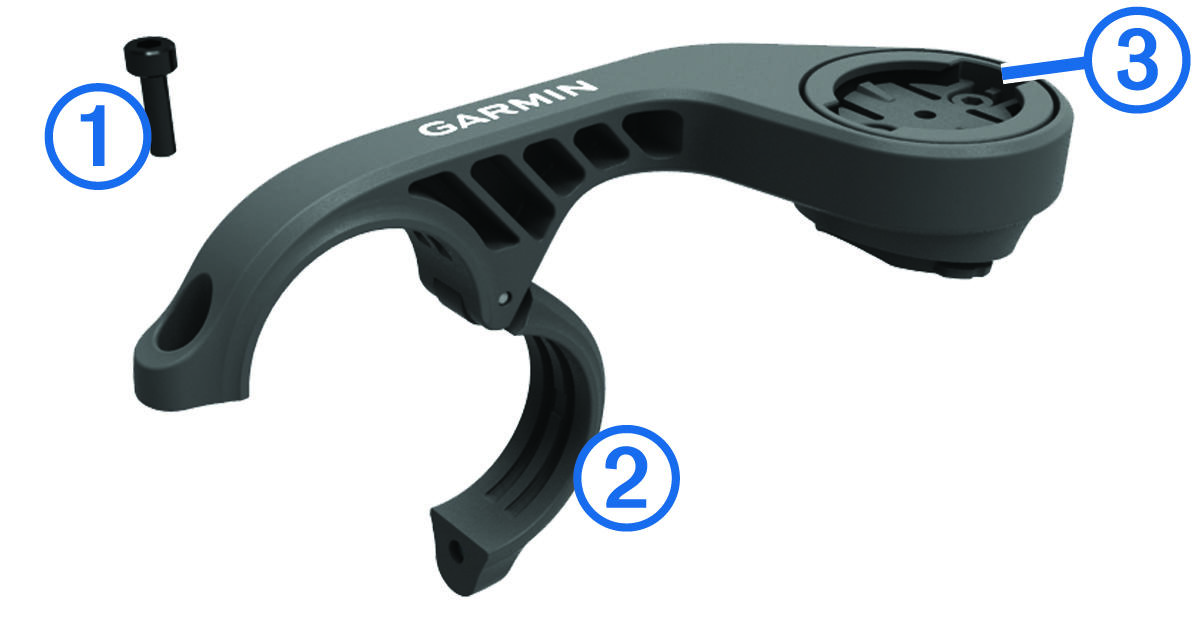

  2. Use the 2.5 mm hex key to remove the screw Callout number one from the handlebar connector Callout number two.

    Bike mount with callouts
  3. If necessary, remove the two screws on the top of the mount Callout number three, rotate the connector, and replace the screws to change the orientation of the mount for an Edge device.
  4. Place a rubber pad around the handlebar:
    • If the handlebar diameter is 25.4 mm, use the thicker pad.

    • If the handlebar diameter is 31.8 mm, use the thinner pad.

  5. Place the handlebar connector around the rubber pad.
    NOTE: You should align the contours on the rubber pad with the grooves on the inside of the handlebar connector.

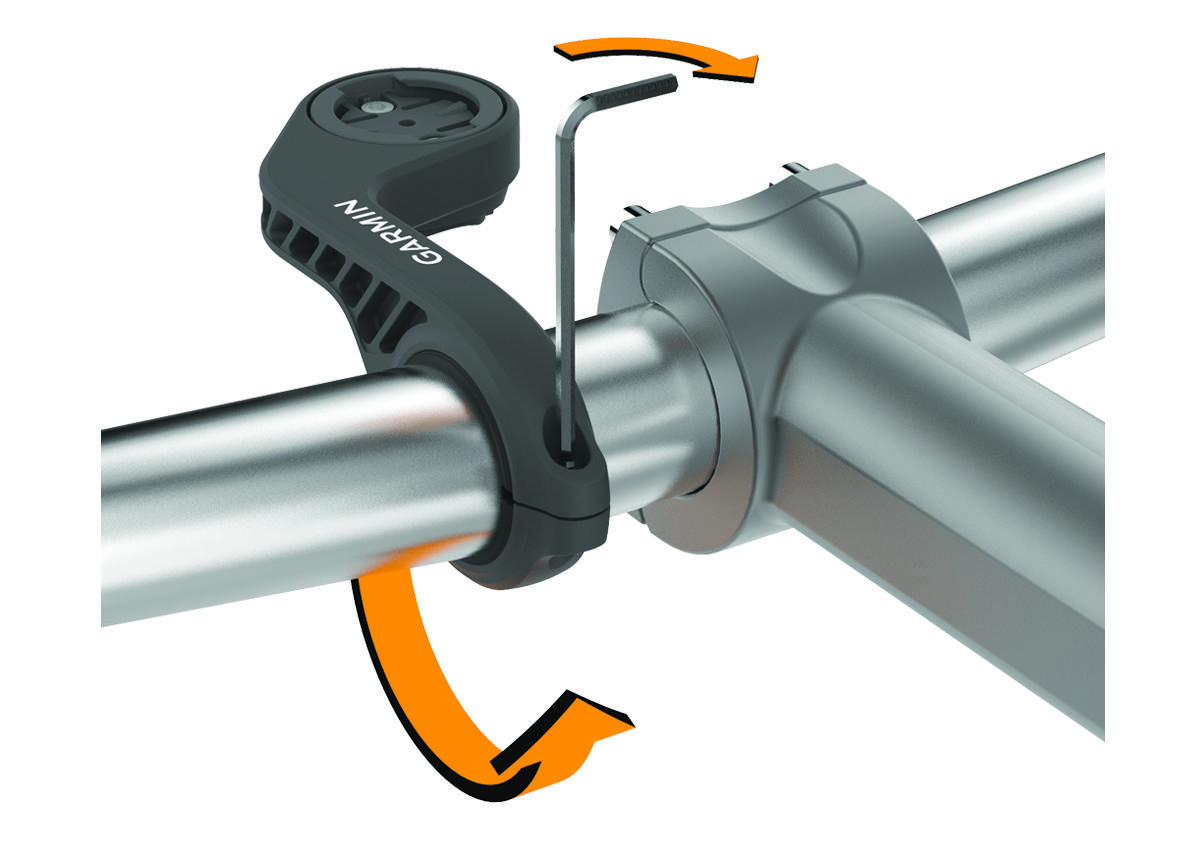

  6. Replace the screw, and use the 2.5 mm hex key to tighten the screw.
    NOTE: You should check the tightness of the screw periodically.

    Bike mount on the handlebar
  7. Install the Edge device, and adjust the mount (optional).

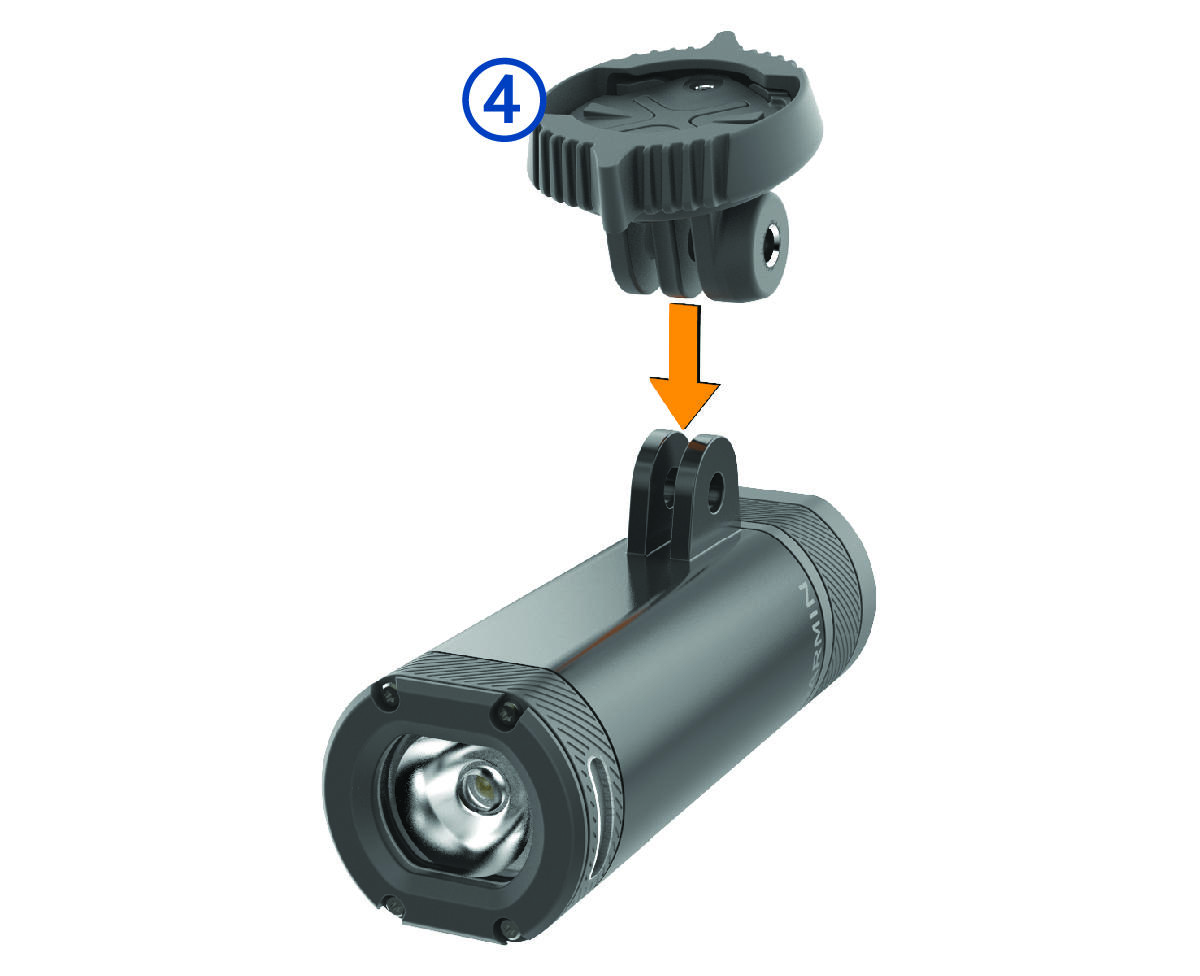

  8. Connect the quarter-turn adapter Callout number four to the headlight.

    Bike mount adapter with the device and a callout

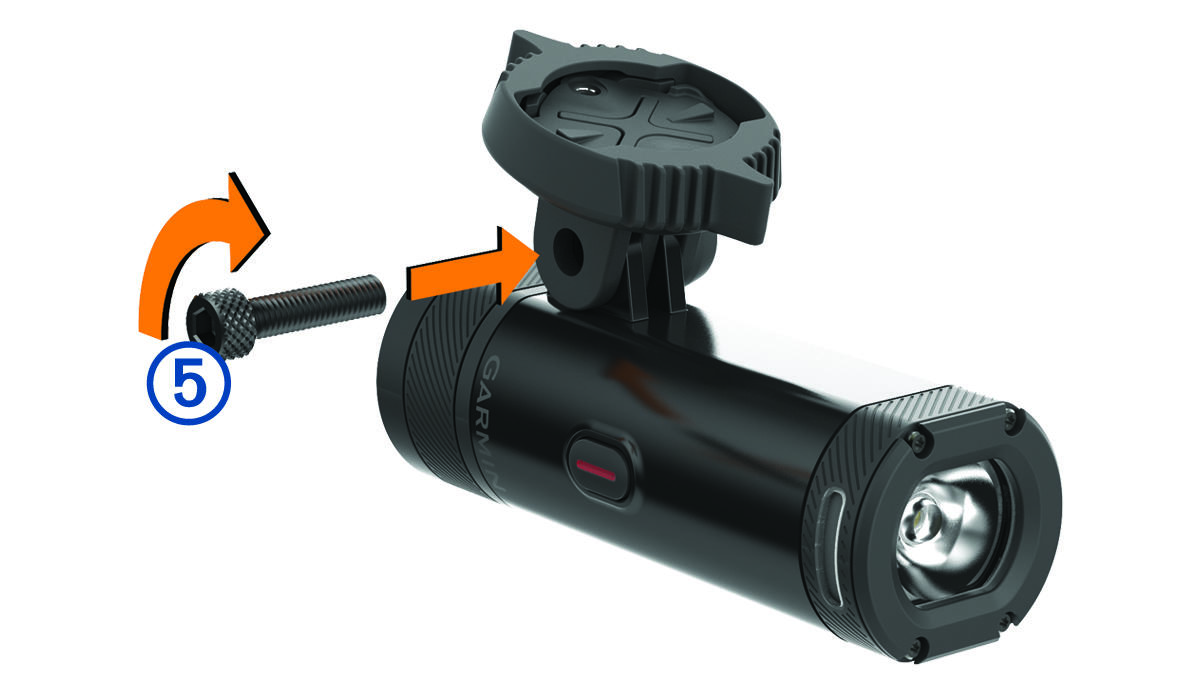

  9. Insert the screw Callout number five, and hand tighten.

    Bike mount adapter with the screw and a callout

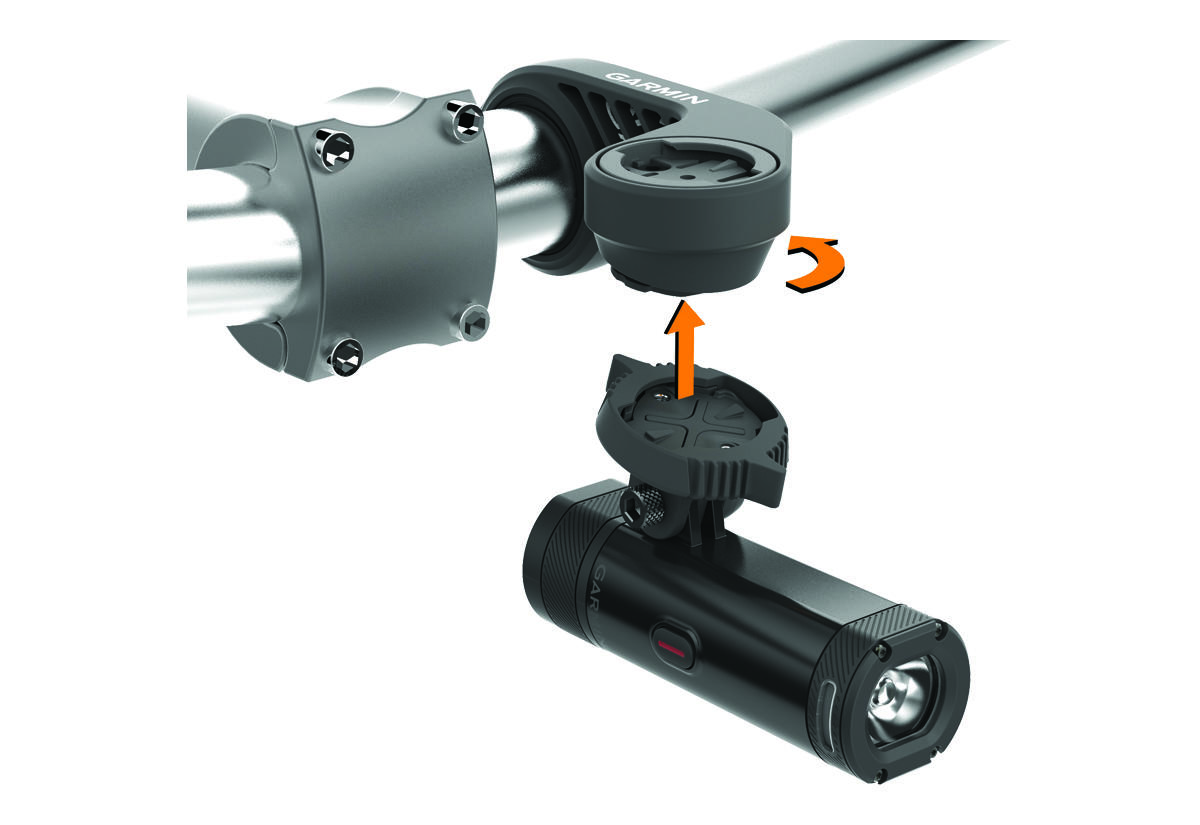

  10. Align the notches of the quarter-turn adapter with the tabs on the bottom of the mount.
  11. Press up slightly, and turn the adapter counterclockwise until it locks into place.

    Bike mount with the adapter and the device
  12. Adjust the headlight angle so it is parallel to the ground, and use the 4 mm hex key to tighten the screw.

    Device with the hex key
    NOTE: You should check the tightness of the screw periodically.
