Installing the Universal Mount

  1. Select a rubber pad Callout number one based on your seat post shape, and place the rubber pad on the back of the universal mount.
  2. Place the universal mount on the seat post.

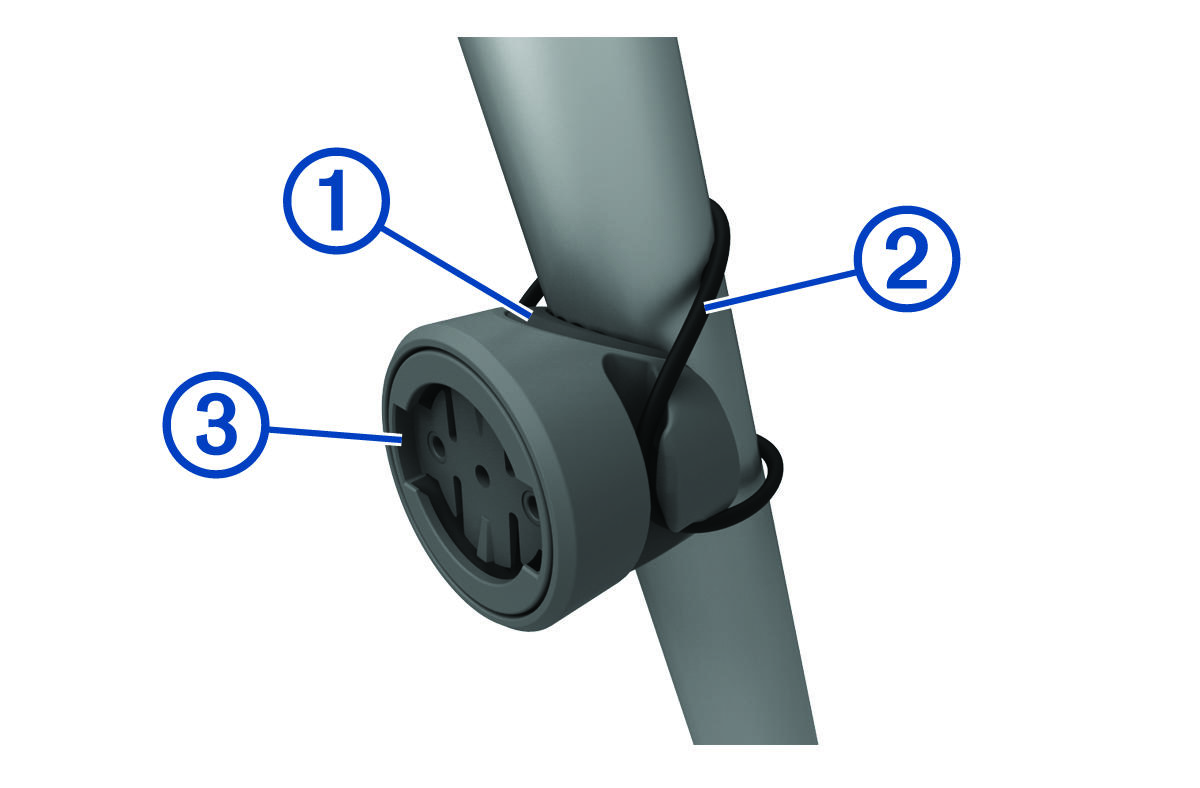

    Mount with callouts
  3. Attach the universal mount securely using one band Callout number two.
  4. Align the tabs on the back of the device with the universal mount notches Callout number three.
  5. Press down slightly and turn the device clockwise until it locks into place.
