Installing the Varia RDU Device

NOTE: If you do not have a Varia™ RDU device, you can skip this task and use a compatible Edge® device (Pairing the Taillight with Your Edge 1030).

You can install the device on the stem or the handlebars.

  1. Select a secure location to mount the device where it does not interfere with the safe operation of your bike.
  2. Place the rubber disk Callout number one on the back of the bike mount.

    The rubber tabs align with the back of the bike mount so it stays in place.

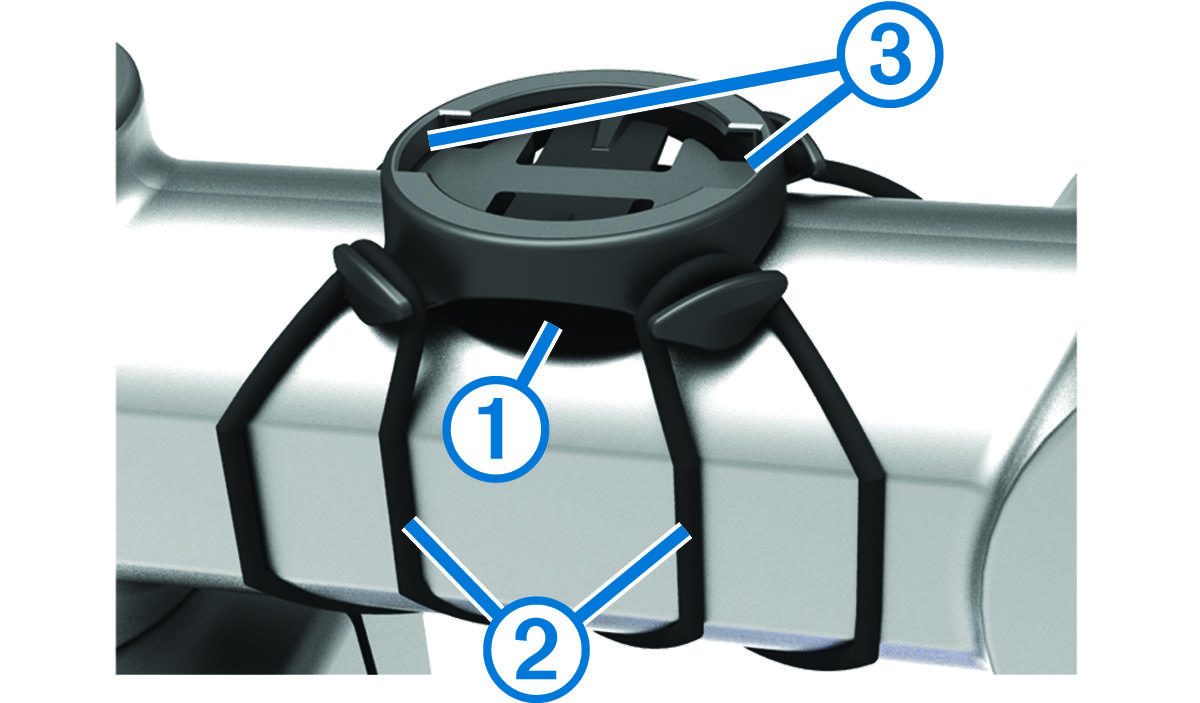

    Mount with callouts
  3. Place the bike mount on the bike stem.
  4. Attach the bike mount securely using the two bands Callout number two.
  5. Align the tabs on the back of the device with the bike mount notches Callout number three.
  6. Press down slightly and turn the device clockwise until it locks into place.

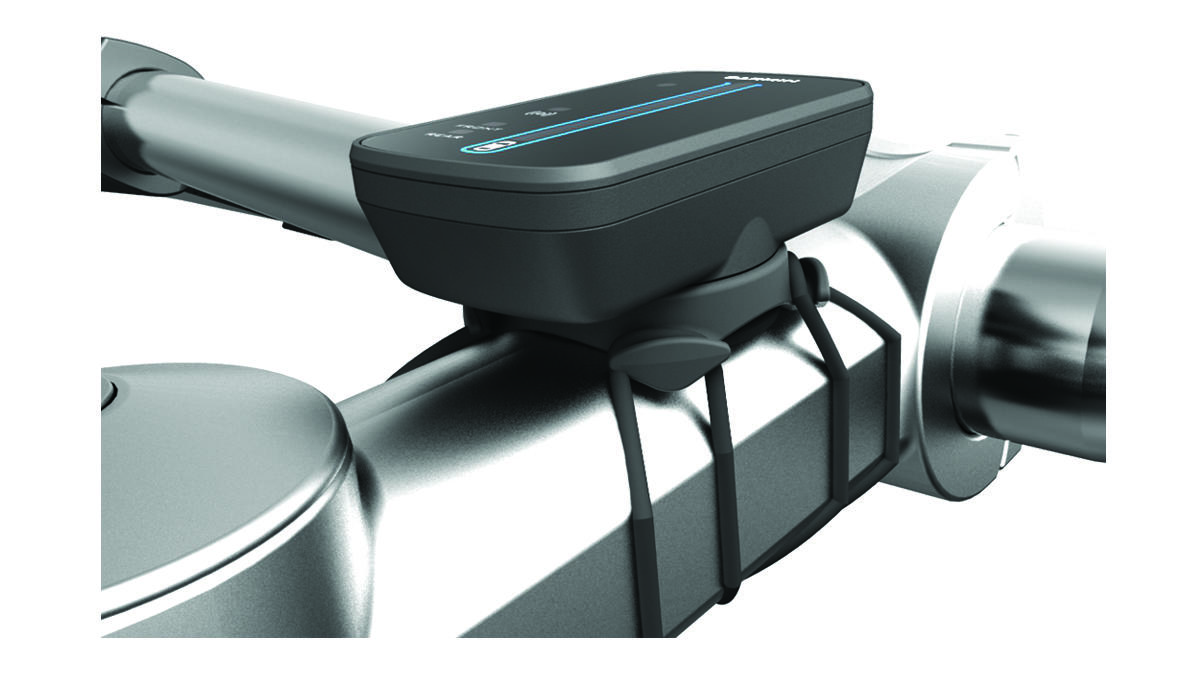

    Device on the mount
