Split-Zoom View

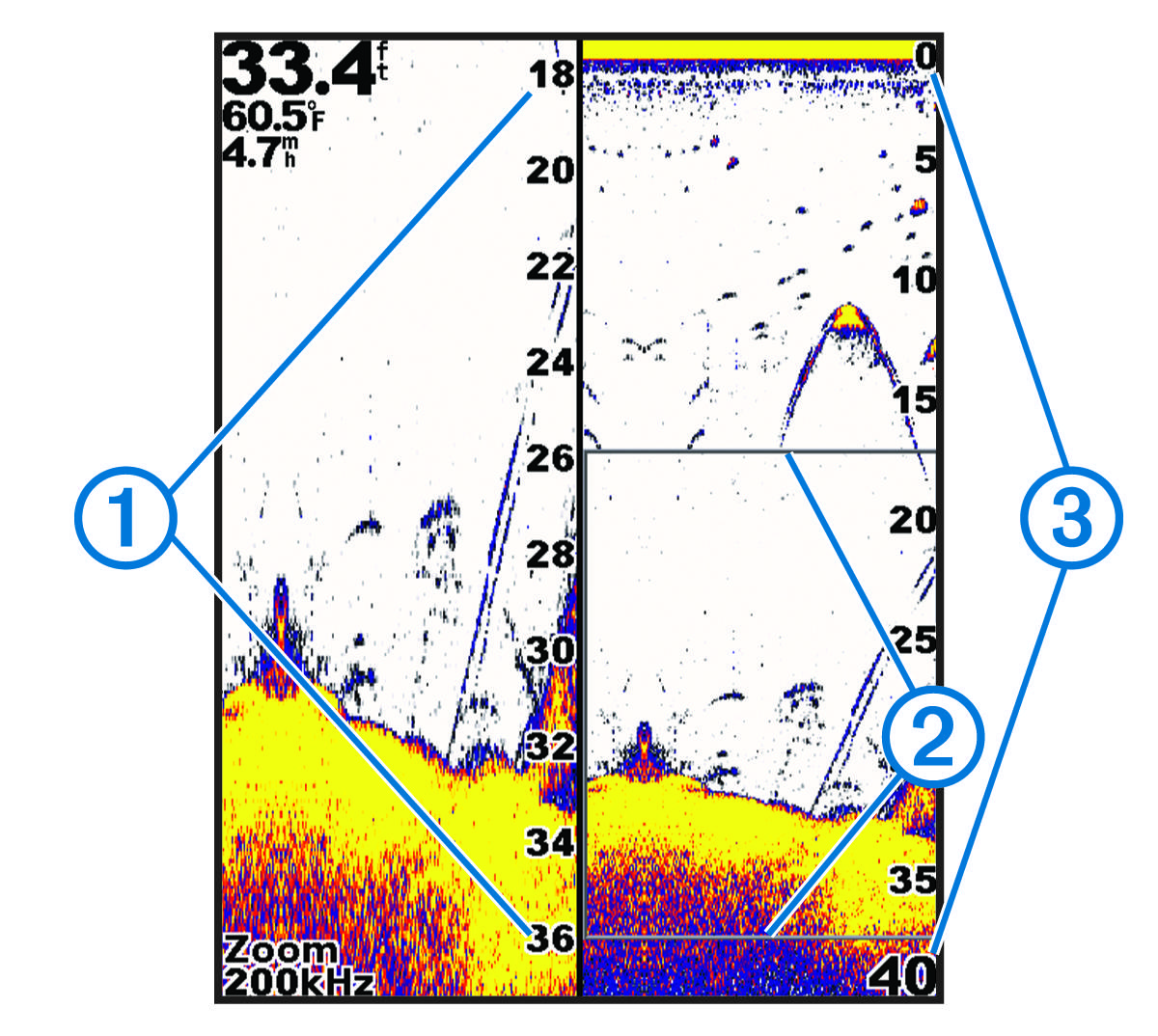

On the split-zoom page, you can see a full-view graph of sonar readings on the right side of the screen, and a magnified portion of that graph on the left side of the screen.
From a sonar screen, select
.![Split-zoom view with callouts](../Shared/GUID-D1576960-FBED-4C69-BA32-194BD8F7D31B-high.jpg)
|
Zoomed depth scale |
---|---|
|
Zoom window |
|
Depth range |
