Mounting and Powering the Garmin Device in Your Vehicle
This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.
Both the device and its mount contain magnets. Under certain circumstances, magnets may cause interference with some internal medical devices, including pacemakers and insulin pumps. Keep the device and its mount away from such medical devices.
Both the device and its mount contain magnets. Under certain circumstances, magnets may cause damage to some electronic devices, including hard drives in laptop computers. Use caution when the device or its mount is near electronic devices.
Before you use your device on battery power, you should charge it.
-

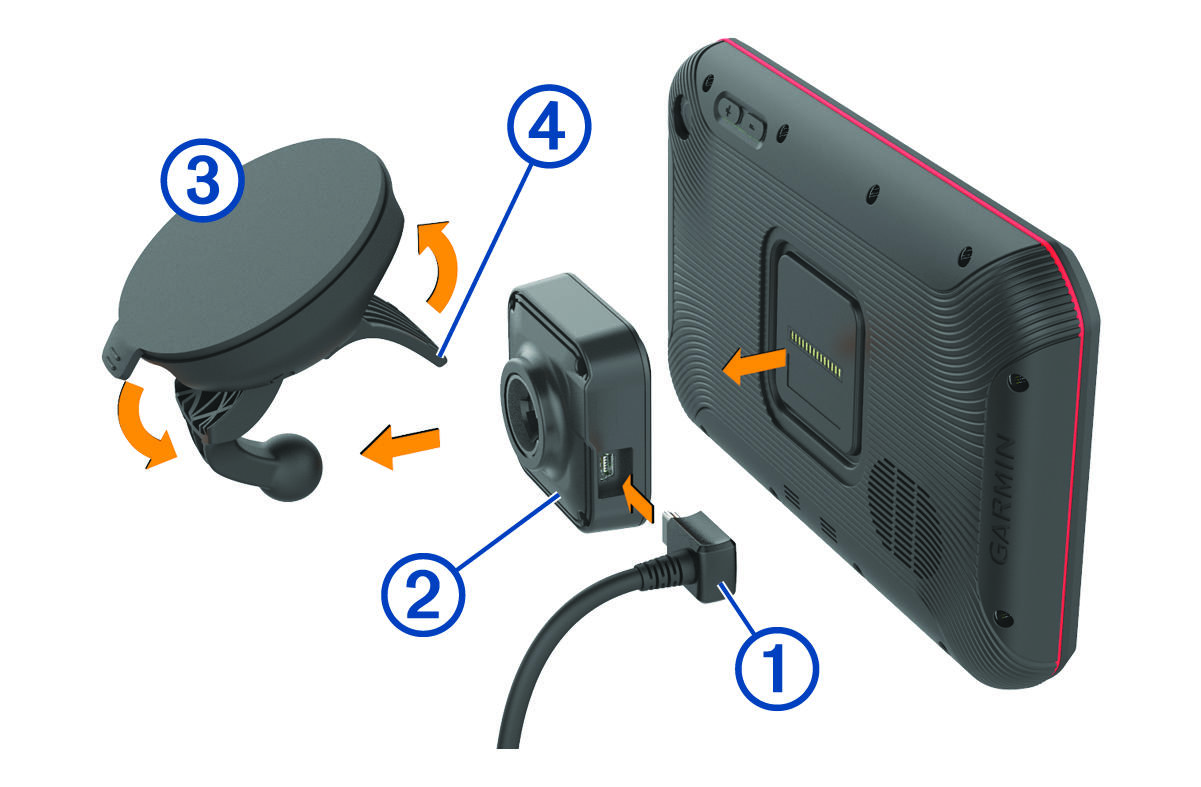

Plug the vehicle power cable
into the mini-USB port on the mount.
-
Press the mount
onto the suction cup
until it snaps into place.
NOTE: The mount and suction cup may already be assembled in the package.The Garmin® logo on the mount should face right-side up. It is easiest to connect the mount and suction cup when the hinged arm on the suction cup is closed. The mount and suction cup fit tightly, and you may need to press hard to connect them.
-
Press the suction cup to the windshield, and flip the lever
back toward the windshield.
