Device Overview

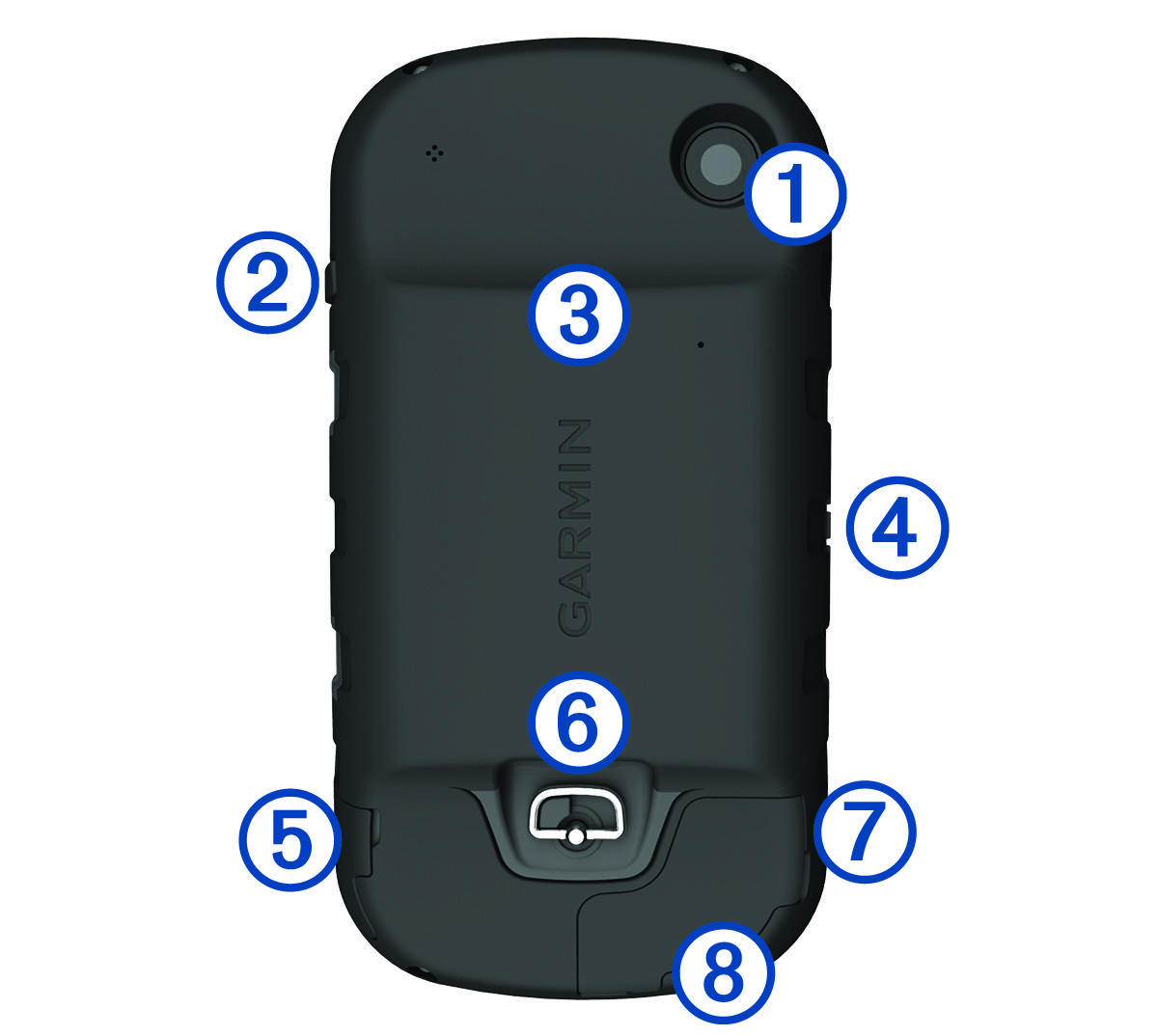

Back view of the device with callouts

Callout number one

Camera lens (680 and 680t only)

Callout number two

Power key

Callout number three

microSD card slot (under battery door)

Callout number four

Power connector for optional accessory mounts

Callout number five

Stereo headphone jack (under weather cap)

Callout number six

Battery cover D-ring

Callout number seven

Mini-USB port (under weather cap)

Callout number eight

MCX port for external GPS antenna (under weather cap)
