Device Overview

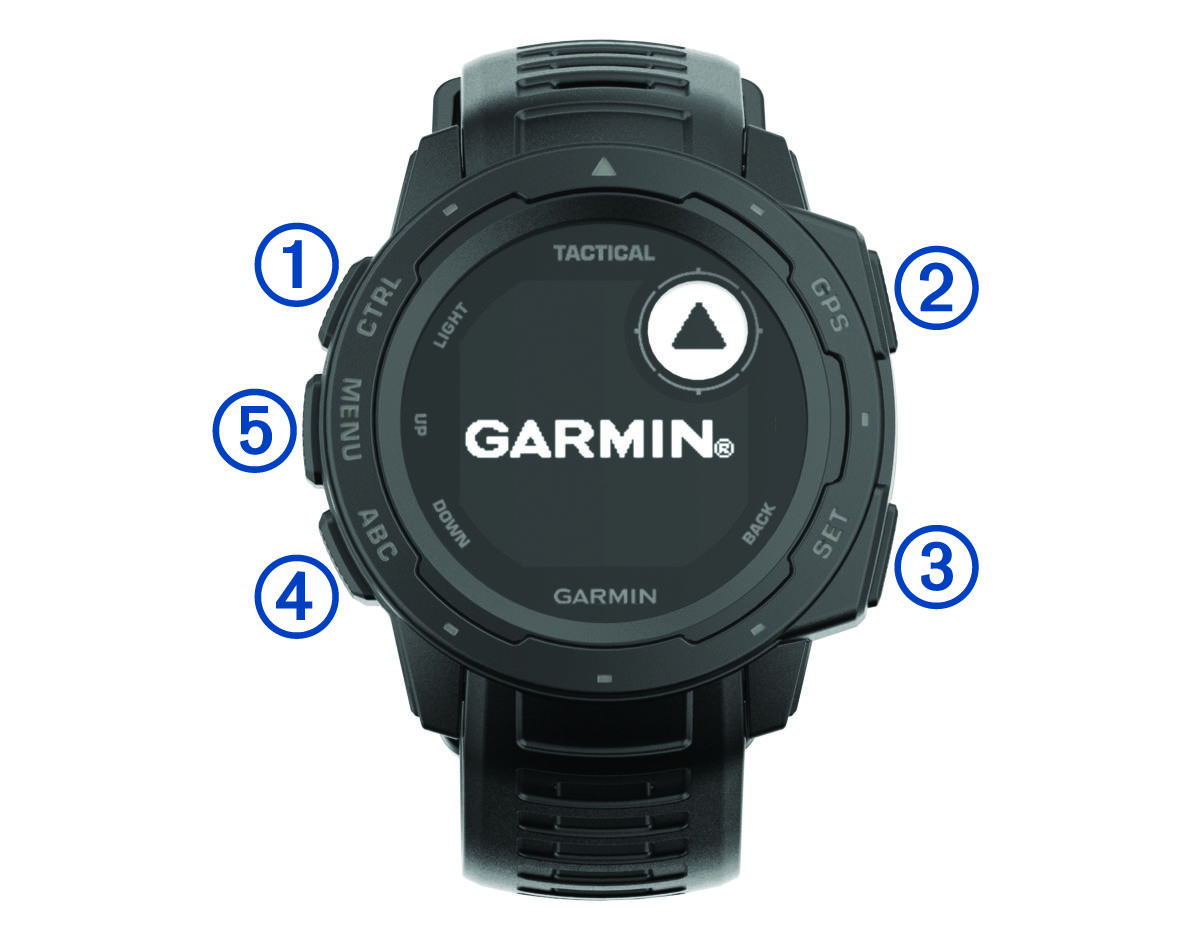

Front view of the device with callouts

Callout number one

LIGHT

CTRL

Select to turn the backlight on and off.

Select to turn the device on.

Hold to view the controls menu.

Callout number two

GPS

Select to view the activity list and start or stop an activity.

Select to choose an option in a menu.

Hold to view GPS coordinates and save your location.

Callout number three

BACK

SET

Select to return to the previous screen.

Hold to view the clock menu.

Callout number four

DOWN

ABC

Select to scroll through the widget loop and menus.

Hold to view the altimeter, barometer, and compass (ABC) screen.

Callout number five

UP

MENU

Select to scroll through the widget loop and menus.

Hold to view the menu.
