Charging the Device

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

NOTE: The device does not charge when it is outside the approved temperature range (Specifications).
  1. Lift the weather cap Callout number one.

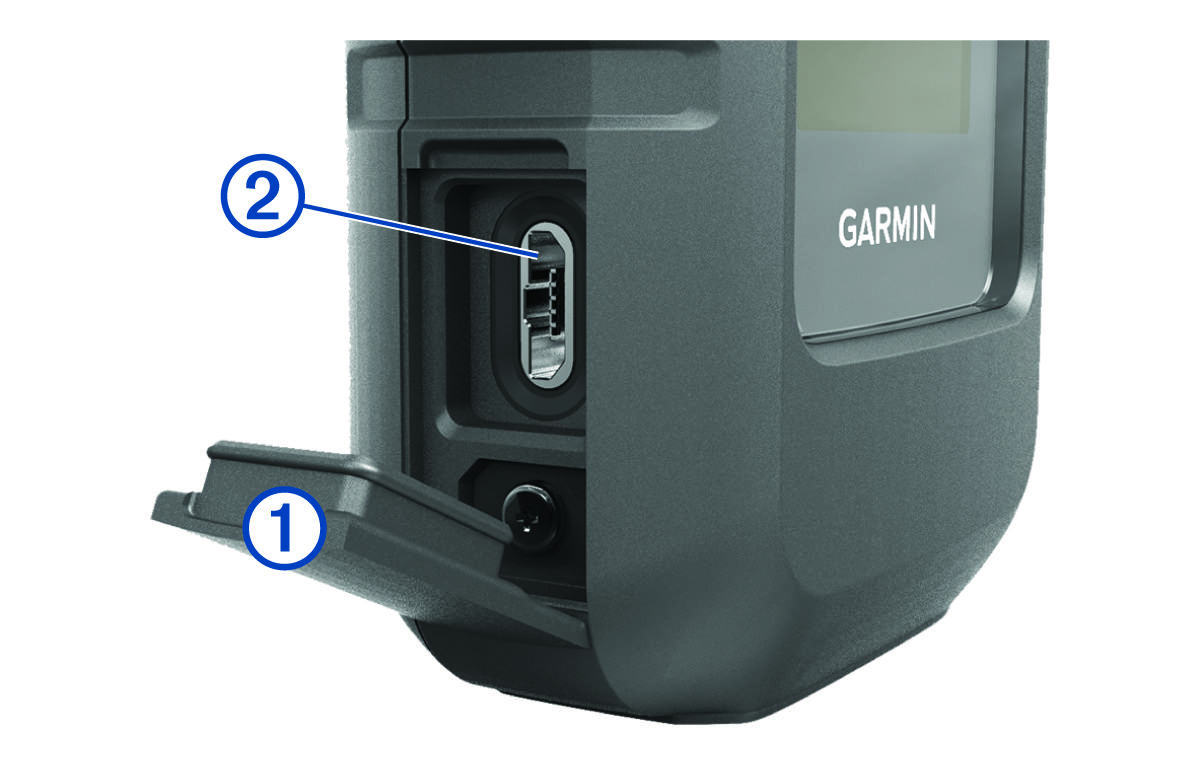

    Close-up view of the charging port and weather cap with callouts
  2. Plug the small end of the power cable into the USB port Callout number two on the device.
  3. Plug the other end of the power cable into an appropriate power source.
  4. Charge the device completely.
