Garmin ClearVü Sonar View

NOTE: To receive Garmin ClearVü™ scanning sonar, you need a compatible transducer. For information about compatible transducers, go to

Garmin ClearVü™ high-frequency sonar provides a detailed picture of the fishing environment around the boat in a detailed representation of structures the boat is passing over.

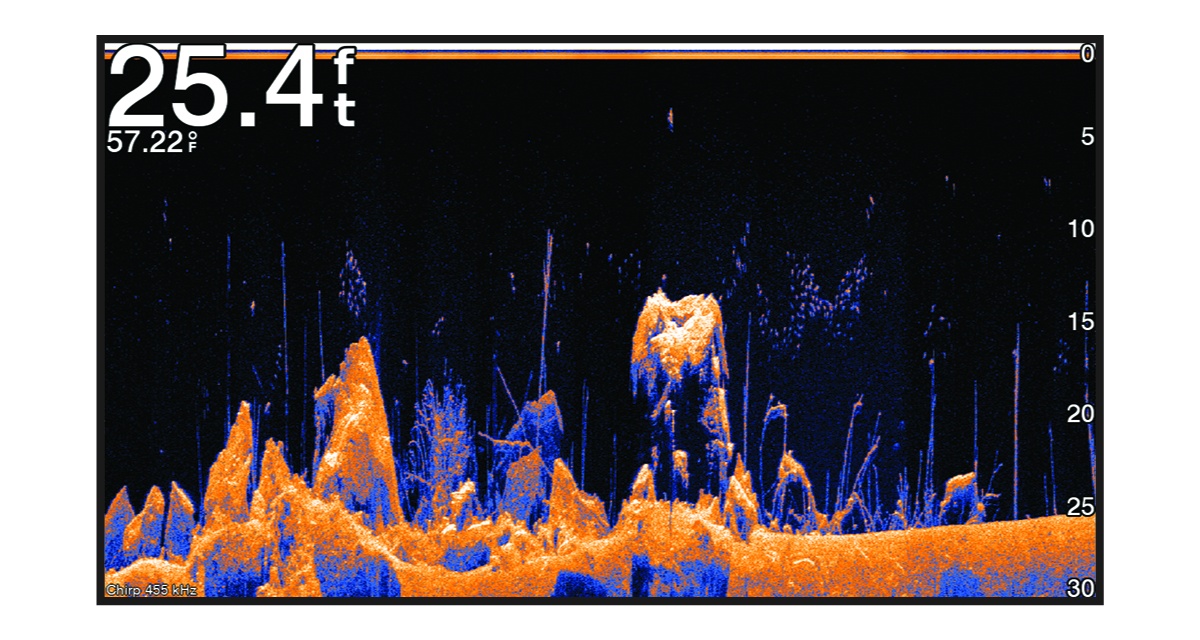

ClearVü sonar view
Traditional transducers emit a conical beam. The Garmin ClearVü™ scanning sonar technology emits two narrow beams, similar to the shape of the beam in a copying machine. These beams provide a clearer, picture-like image of what is beneath the boat.

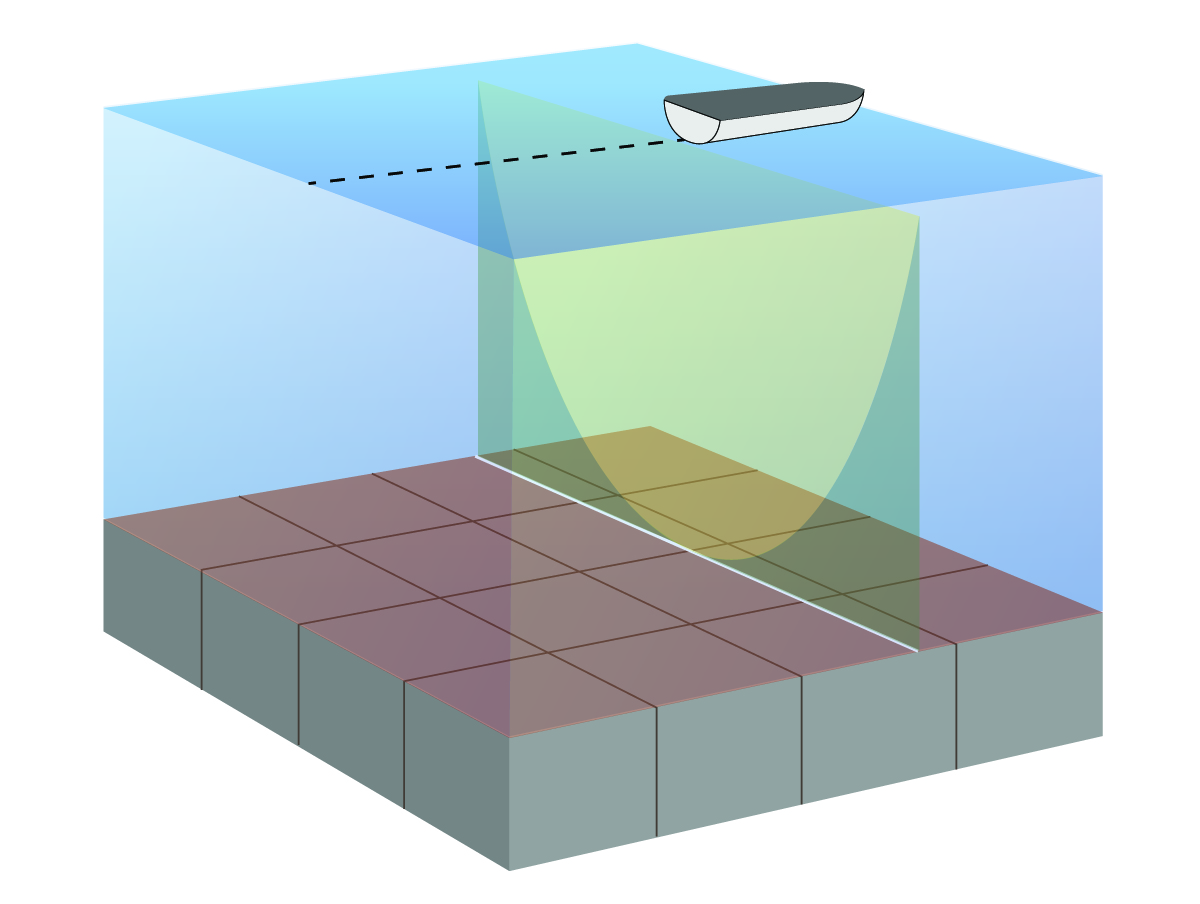

ClearVü transducer beam diagram
