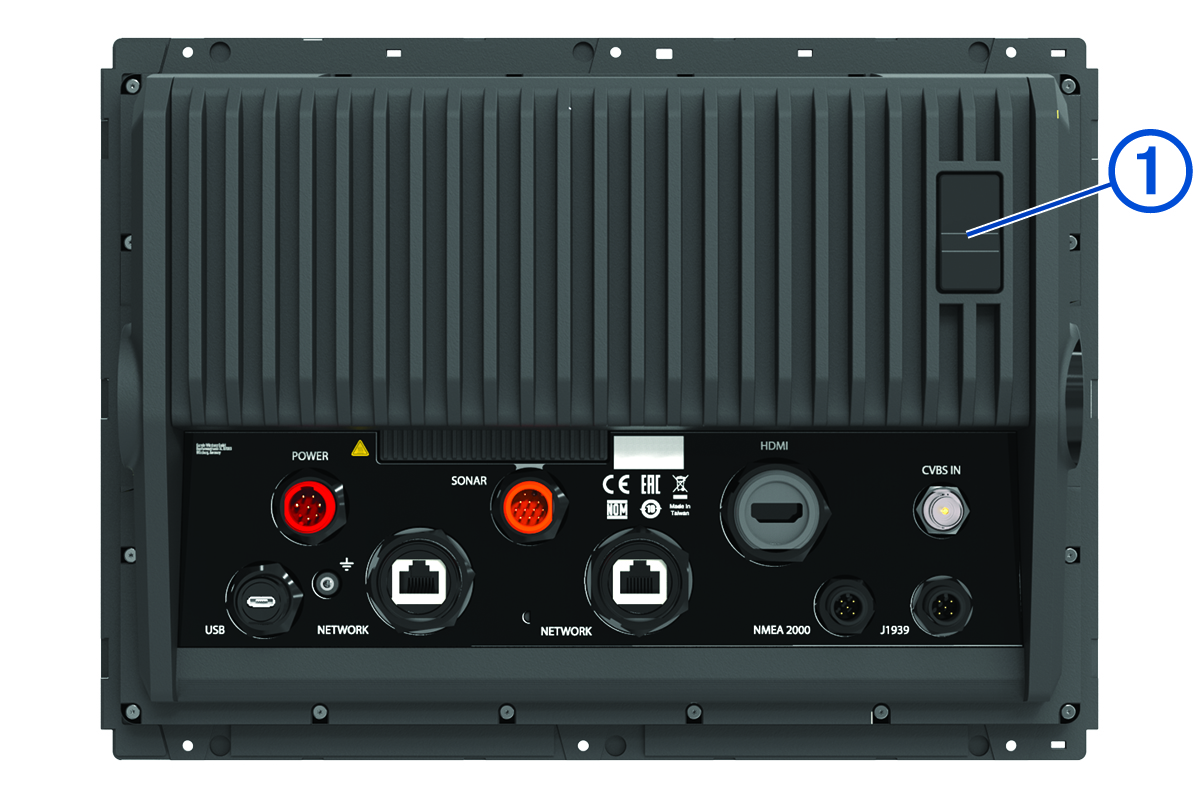

GPSMAP 12x3 Connector View
POWER |
Power and NMEA® 0183 network |
---|---|
SONAR |
12-pin transducer (Not available on all models) |
HDMI OUT |
HDMI® video out |
CVBS IN |
Composite video in |
USB |
Micro-USB for compatible Garmin® card reader1 |
|
Ground screw |
ETHERNET |
Garmin Marine Network |
NMEA 2000 |
NMEA 2000® network |
J1939 |
Engine or J1939 network |
|
2 microSD® memory card slots, 32 GB max. |
Parent Topic: Device Overview
1 Only compatible
Garmin card readers recommended. Third-party card readers are not guaranteed to be fully compatible.
