Defining a Partial Guard Zone

Before you can define the boundaries of the guard zone, you must enable a guard zoneEnabling a Guard Zone.

You can define the boundaries of a guard zone that does not completely surround your boat.

  1. From the sentry screen, select MENU > Sentry Setup > Adjust Guard Zone > Move Radar Guard Zone > Corner 1.
  2. Touch and drag the location of the outer guard-zone corner Callout number one.

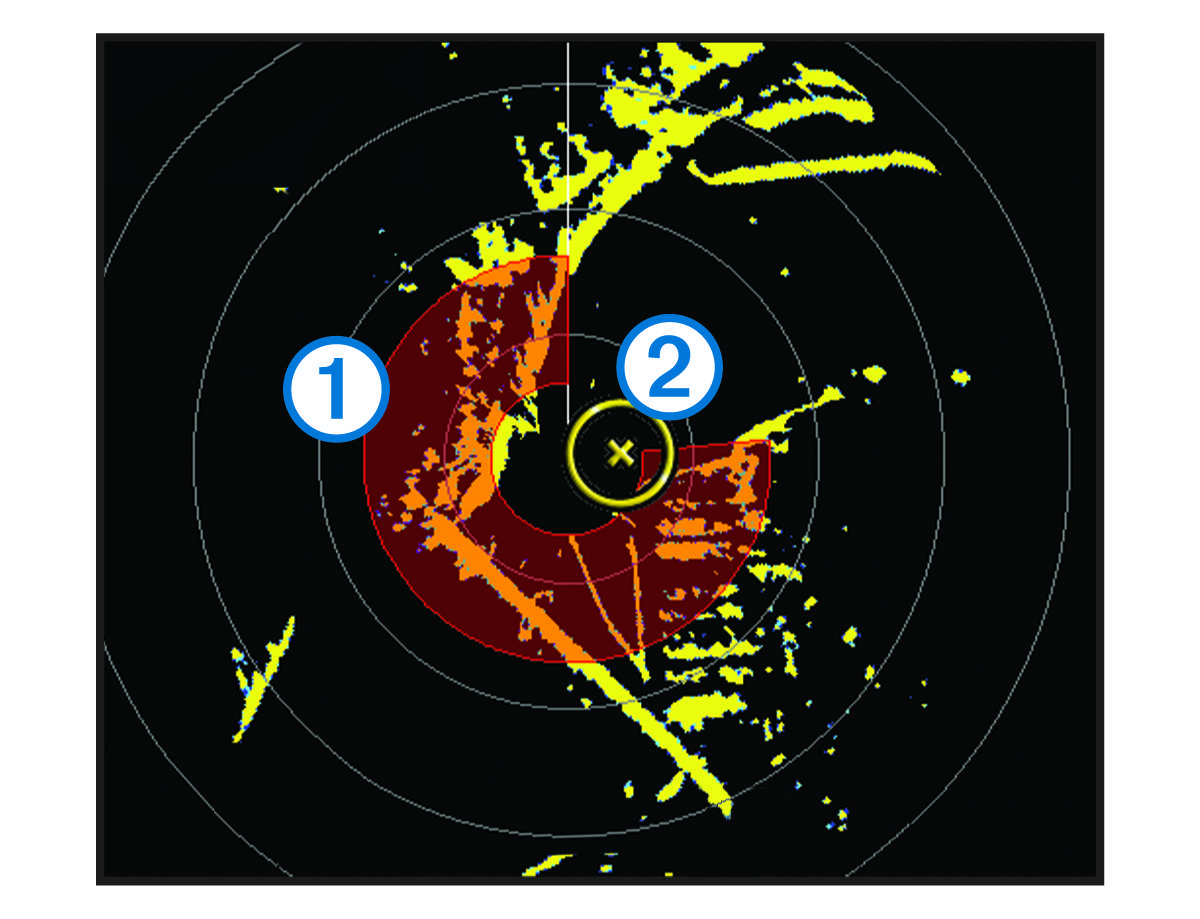

    Radar guard zone setup with callouts
  3. Select Corner 2.
  4. Touch the location of the inner guard-zone corner Callout number two to define the width of the guard zone.
  5. Select Done.
