Keys

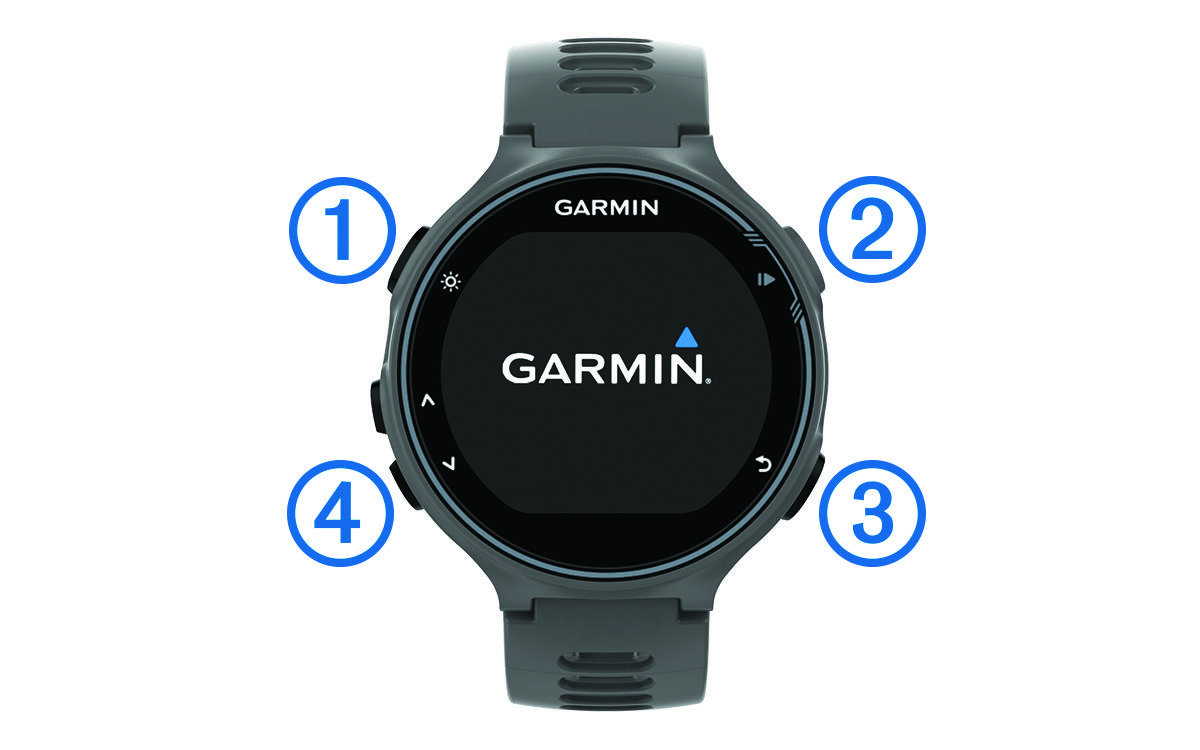

Front view of the device with callouts

Item

Icon

Description

Callout number one

Power symbol Spacer only, no image or iconBacklight symbol

Hold to turn the device on and off.

Select to turn the backlight on and off.

Callout number two

Start symbol

Select to start and stop the timer.

Select to choose an option or to acknowledge a message.

Callout number three

Lap symbol Spacer only, no image or icon Back symbol

Select to mark a new lap.

Select to return to the previous screen.

Callout number four

Up arrow symbolSpacer only, no image or iconDown arrow symbol

Select to scroll through the widgets, data screens, options, and settings.

Select Start symbol > Up arrow symbol to select an activity profile.

Select Start symbol > Down arrow symbol to open the menu.

Hold Up arrow symbol to view the options menu.
