Keys

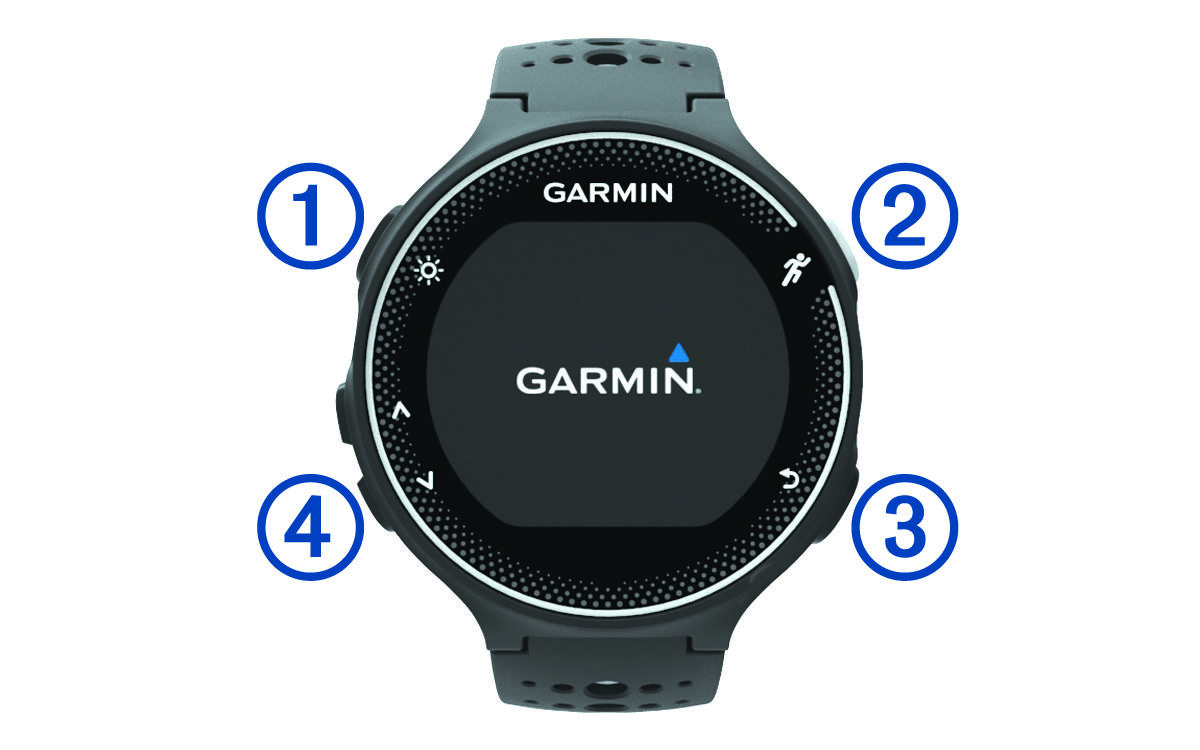

Front view of the device with callouts

Item

Icon

Description

Callout number one

Power symbolSpacer only, no image or iconBacklight symbol

Hold to turn the device on and off.

Select to turn the backlight on and off.

Callout number two

Runner symbol

Select to start and stop the timer.

Select to choose an option or to acknowledge a message.

Callout number three

Lap symbolSpacer only, no image or iconBack symbol

Select to mark a new lap.

Select to return to the previous screen.

Callout number four

Spacer only, no image or icon

Select to scroll through the widgets, data screens, options, and settings.

Select Runner symbol > to select an activity profile.

Select Runner symbol > to open the menu.

Hold to view the options menu.
