Charging the Device

NOTICE

To prevent corrosion, thoroughly dry the contacts and the surrounding area before charging or connecting to a computer.

The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.

  1. Plug the USB end of the cable into the AC adapter or a computer USB port.
  2. Plug the AC adapter into a standard wall outlet.
  3. Align the left side of the charging cradle Callout number one with the groove on the left side of the device.

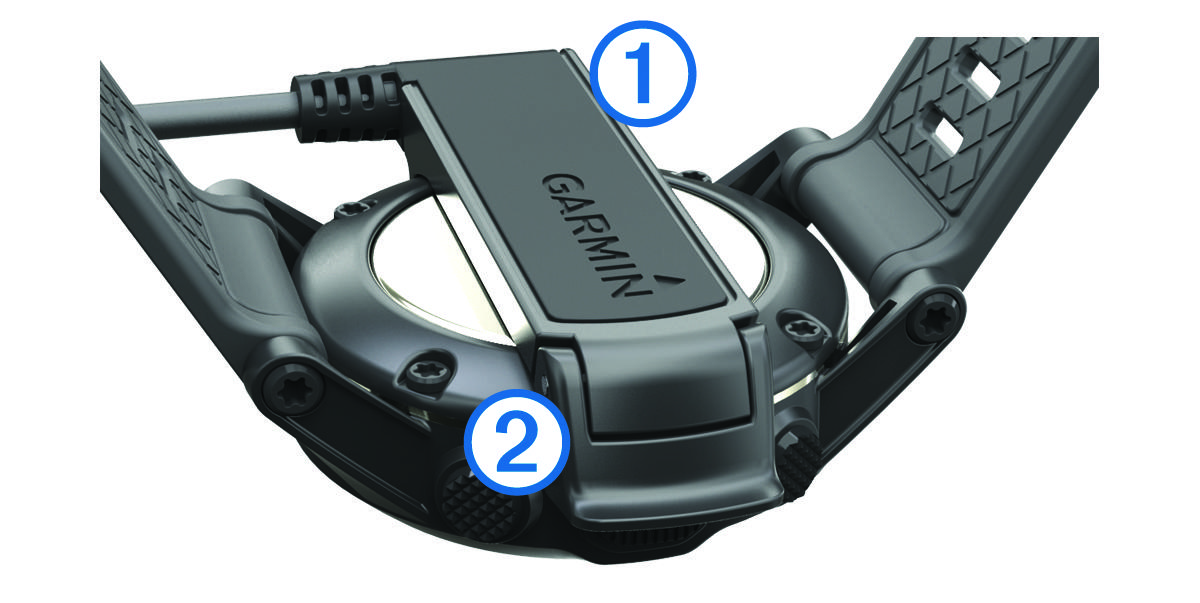

    Close-up view of the charger connected to the device with callouts
  4. Align the hinged side of the charger Callout number two with the contacts on the back of the device.

    When you connect the device to a power source, the device turns on.

  5. Charge the device completely.
