Charging the Device

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.
NOTE: The device will not charge when outside the approved temperature range (Edge Specifications).

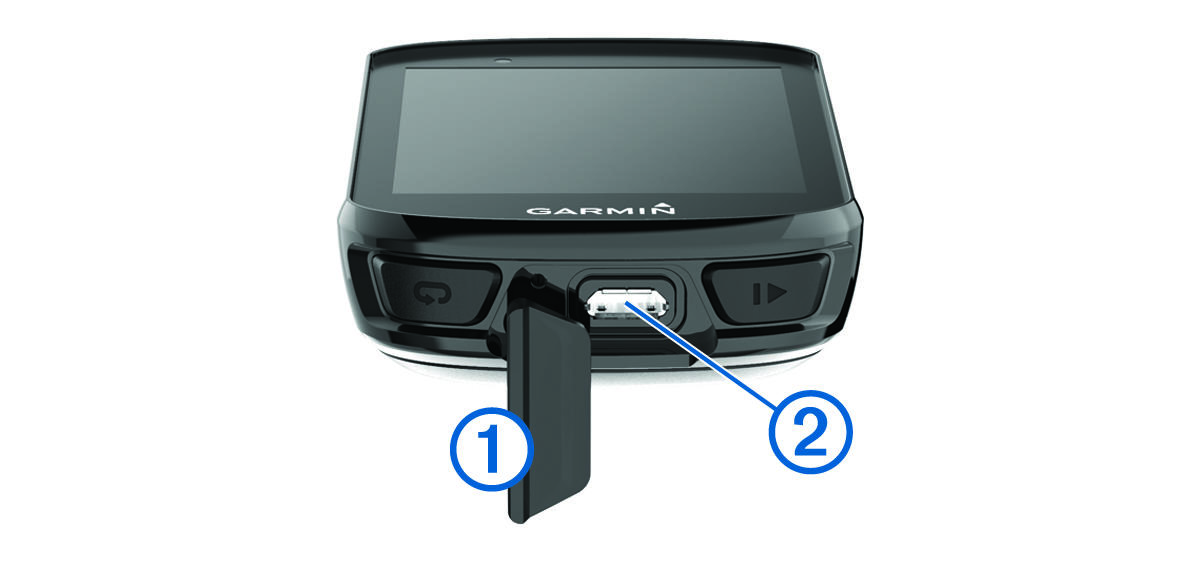

  1. Pull up the weather cap Callout number one from the USB port Callout number two.

    Bottom view of the device with callouts
  2. Plug the small end of the USB cable into the USB port on the device.
  3. Plug the large end of the USB cable into an AC adapter or a computer USB port.
  4. Plug the AC adapter into a standard wall outlet.

    When you connect the device to a power source, the device turns on.

  5. Charge the device completely.

After you charge the device, close the weather cap.
