Device Overview

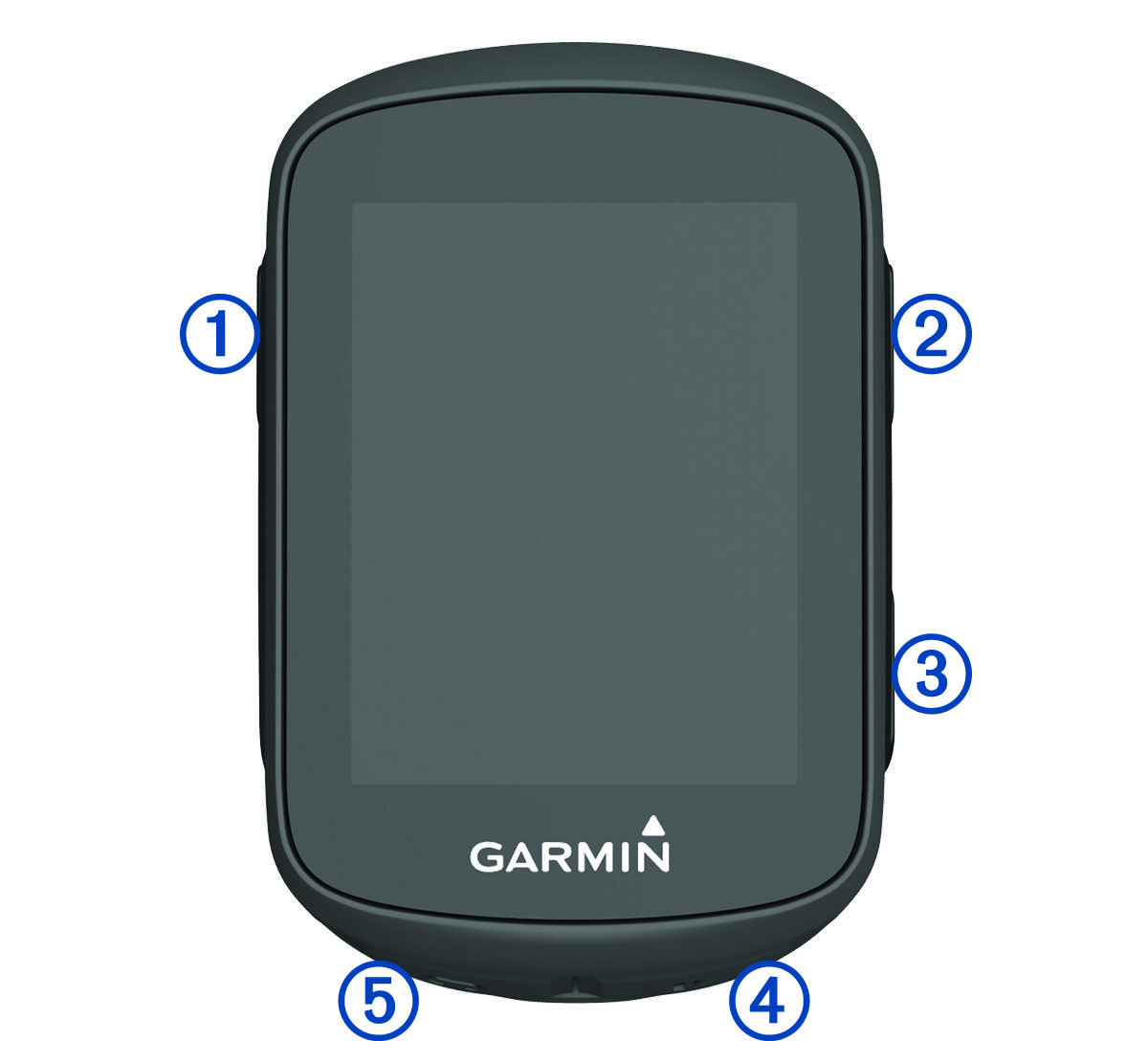

Front view of the device with callouts

Callout number one

Power symbol

Select to wake the device.

Hold to turn the device on and off.

Callout number two

Up arrow symbol

Menu symbol

Select to scroll through the data screens, options, and settings.

From the home screen, hold to view the device menu.

Callout number three

Down arrow symbol

Select to scroll through the data screens, options, and settings.

From the home screen, select to view the widgets.

Callout number four

Start symbol

Select to start and stop the timer.

Select to choose an option or to acknowledge a message.

Callout number five

Lap symbol

Select to mark a new lap.

Select to return to the previous screen.
