Traditional Sonar View

There are several full-screen views available, depending on the transducer that is connected.

The full-screen Traditional sonar view shows a large image of the sonar readings from a transducer. The range scale along the right side of the screen shows the depth of detected objects as the screen scrolls from the right to the left.

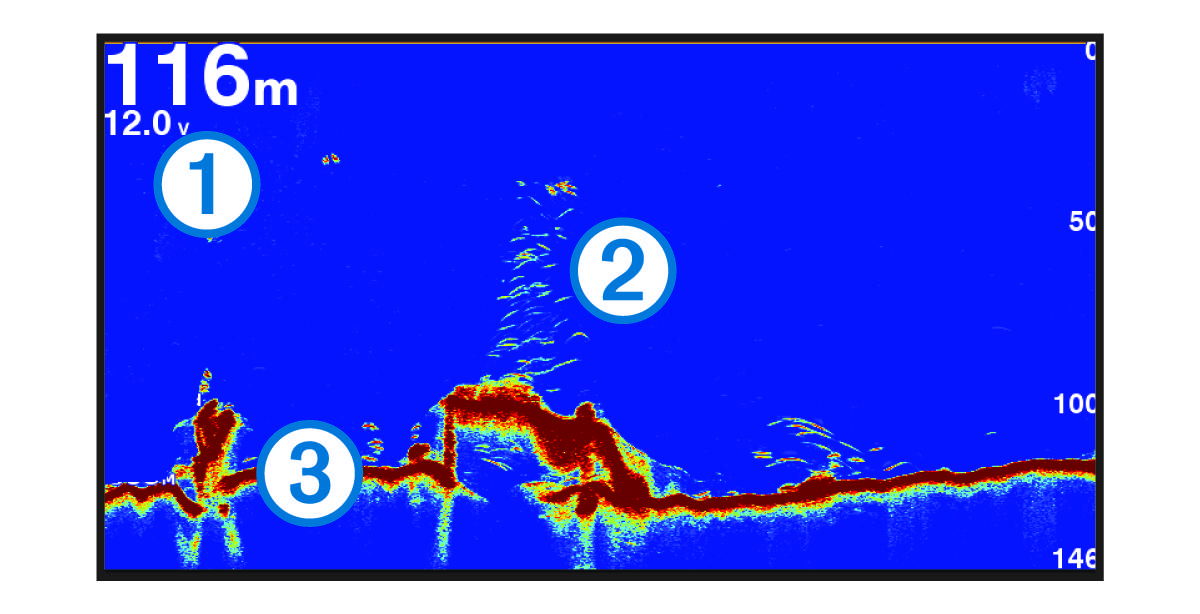

Traditional sonar view with callouts

Callout number one

Depth information

Callout number two

Suspended targets or fish

Callout number three

Bottom of the body of water
