Mercury Engine Gauges

NOTE: This feature is available only when connected to the Mercury® SmartCraft Connect gateway. The available data varies based on the engine network and may include RPM, engine hours, coolant pressure, oil pressure, and other data.

Select Gauges > Mercury to view the Mercury engine gauges.

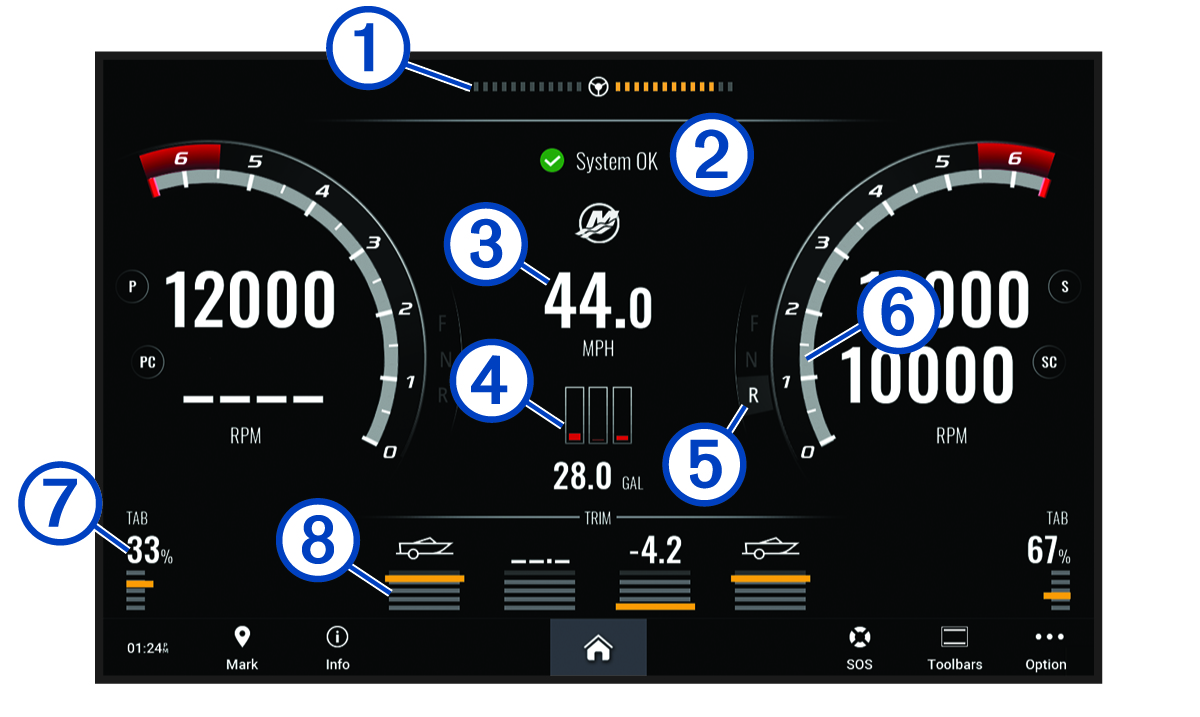

Mercury gauges screen with callouts

Callout number one

Engine voltage or Mercury Steering Angle1

Callout number two

Boat status

Callout number three

Boat speed

Callout number four

Fuel

Callout number five

Transmission gear

Callout number six

Engine speed

Callout number seven

Trim tabs

Callout number eight

Engine trim

TIP: To view additional engine details, select Menu > Engine Data.
1 The Mercury Steering Angle may appear on the display, depending on the engine model and configuration, and its location on the display may vary.
