Mercury Troll Overlay

When connected to a compatible Mercury® engine, you can use the Mercury Troll overlay on the chartplotter to set a target speed.

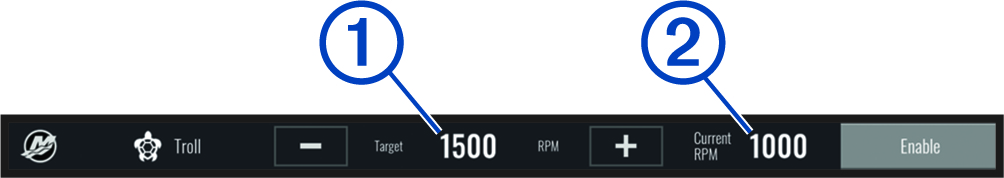

Mercury troll control bar with callouts

Minus symbol

Select to decrease the target speed

Callout number one

Target speed

Plus symbol

Select to increase the target speed

Callout number two

Actual speed

Enable

Select to engage the Mercury Troll feature

Disable

Select to disengage the Mercury Troll feature
